USED 1992 LVD STRIPPIT 1250H/20

33 Ton Turret Punch

Request a Quote
Add to Cart
Capacity: 33 Ton
Max Sheet Size: 60.5" x 160"

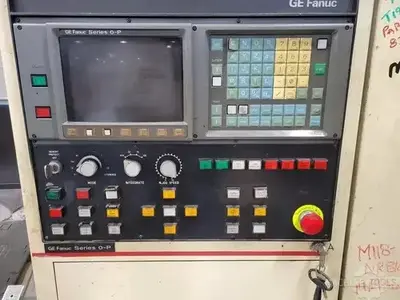

Control: Fanuc O-P
Turret Stations: 42
X-Axis Travel: 53"
Y-Axis Travel: 82"
Throat Depth: 50"
Type of Turret Tooling: Thick Style
Material Thickness: .375" Mild Steel
Capacity @ .375" Max Hole Size: 1 1/8"
Capacity @ .250" Max Hole Size: 1 5/8" Dia
Capacity @ .135" Max Hole Size: 3 1/2" Dia
Capacity @ .090" Max Hole Size: 4 1/2" Dia
Accuracy: +/- .004"
Axis Travel: 0.82" x 53"
Performance: 1" Move - .062 Material - 250 S.P.M. / .062" Move - .030" Material - 415 S.P.M.
Axis Speed: Up To 2500 IPM
