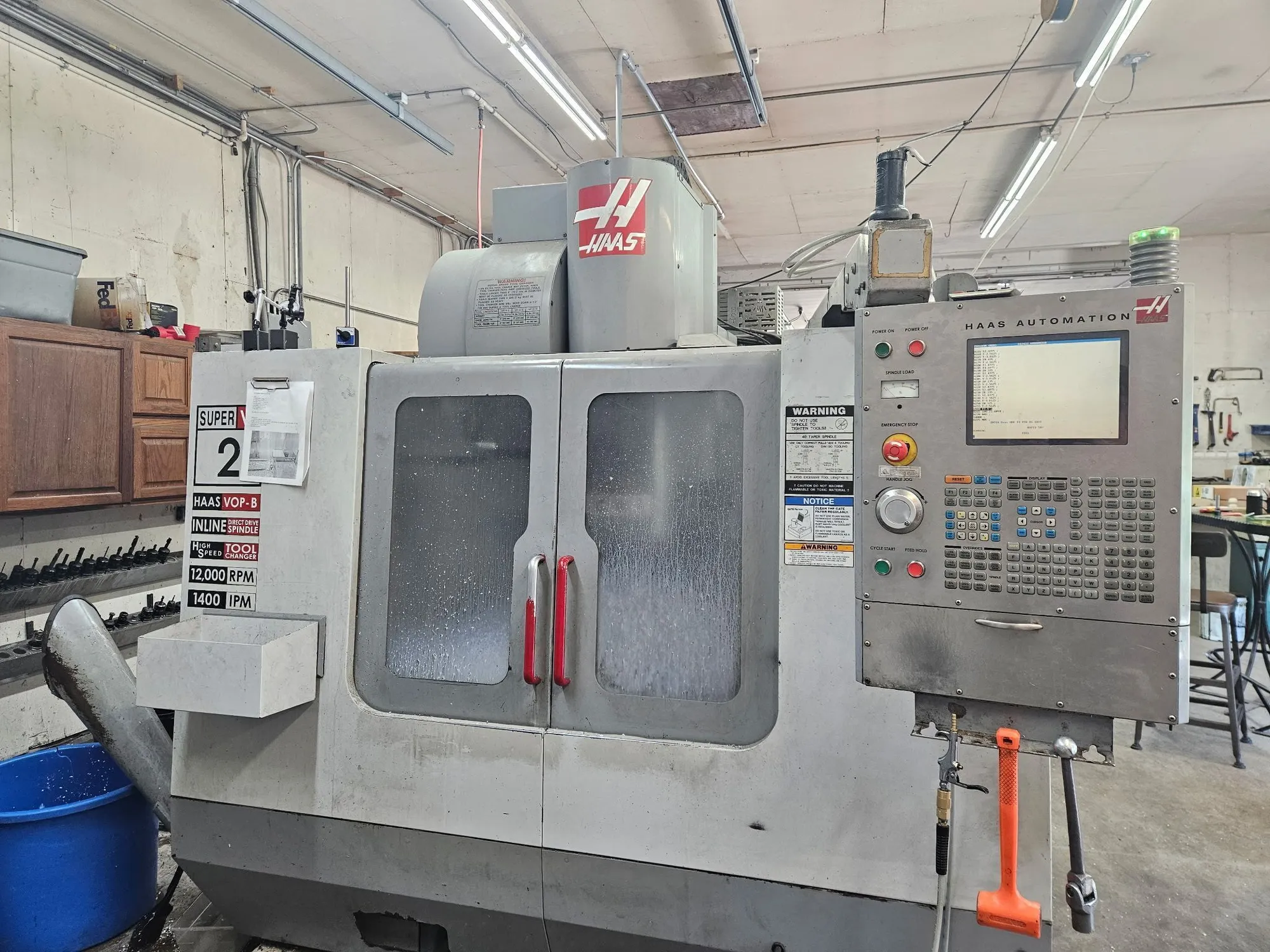

2004 Haas VF-2SS Vertical Machining Center with 12,000 RPM, Direct Drive Spindle, Programmable Coolant, High Speed Tool Changer, 1400 IPM Rapids
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas CNC Control) | CNC (Haas CNC Control) |
| Dimensions | 89″ x 92″ x 104″ | 89″ x 92″ x 104″ |
| Weight | 9500 LBS | 9500 LBS |
Table Size................36” X 14”
Max Weight on Table.......1500 LBS
Spindle Nose to Table.....4″ – 24″
X-Axis Travel.............30″
Y-Axis Travel.............16"
Z-Axis Travel.............20"
Spindle Power.............30 HP
Taper Size................CAT 40
Speed Range...............12,000 RPM
Tool Capacity.............24 + 1
Rapid Traverse Rates......1400 IPM
Cutting Feed Rates........833 IPM
Overall Dimensions........89″ x 92″ x 104″
Weight....................9500 LBS
Haas CNC Control
12,000 RPM, CAT-40, Inline Direct Drive Spindle
Programmable Coolant Nozzle
High Speed Tool Changer
24 Station Side Mount ATC
1400 IPM Rapids
Chip Auger
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
