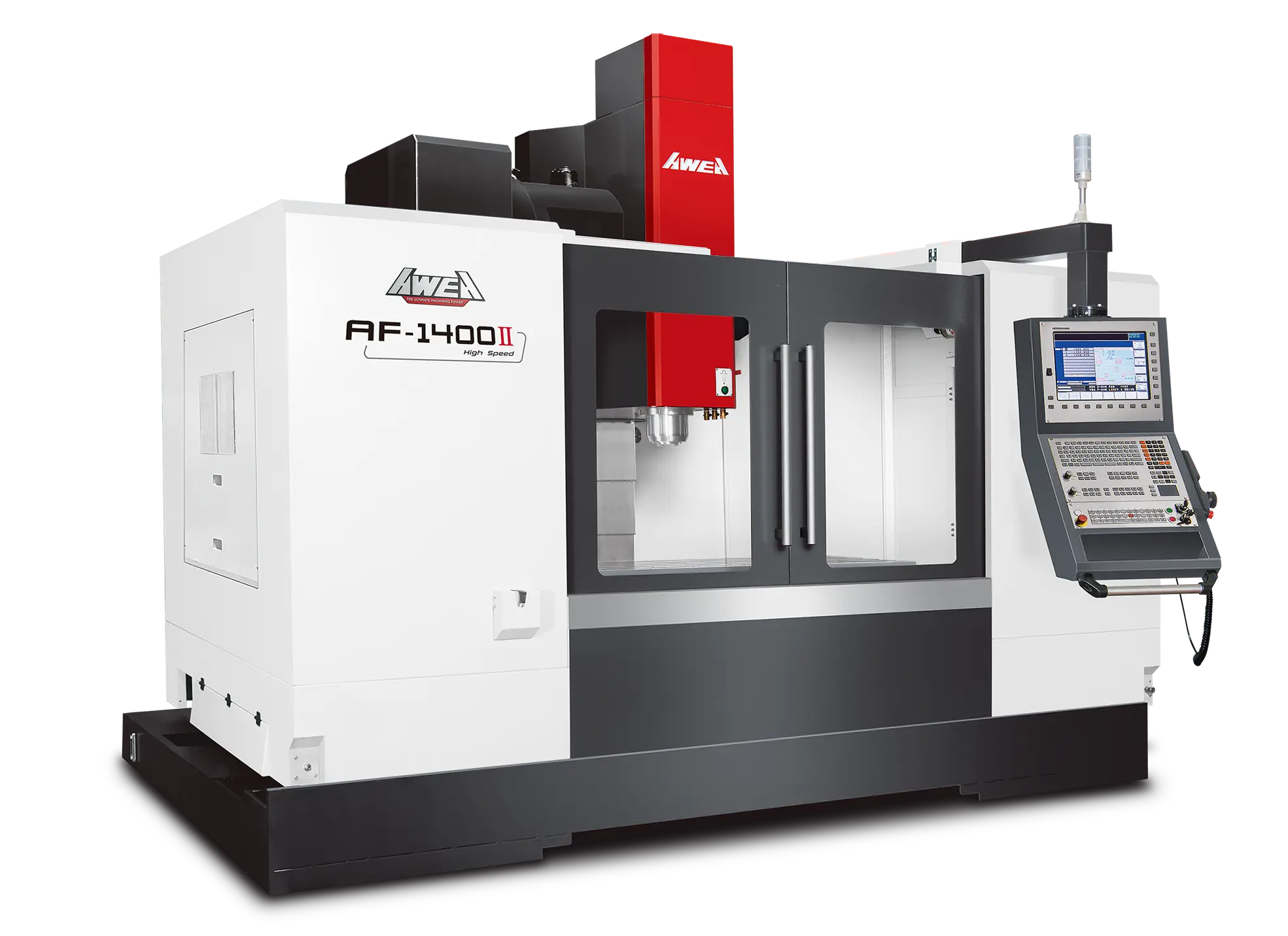

NEW AWEA AF-1400II

Ontario, Canada
504Listings|10Followers
Overview
Vertical Machining Centers

Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance.

Key features include:

• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Specialized for high precision parts and mold machining industry, offering high precision and efficiency at a reasonable cost
• X-axis travel ranging from 650 mm to 1,800 mm, and Y/Z axes travel from 510 mm to 800 mm, catering to major working needs
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Highly efficient 24T arm type magazine design ensures fast and reliable tool changes
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.

Specs
X-Axis Travel
55.118"
1,400 mm
Y-Axis Travel
25.591"
650 mm
Z-Axis Travel
24.016"
610 mm
Table Size-X
59.055"
1,500 mm
Table Size-Y
25.591"
650 mm
Table Load Capacity
2,204.6 lb
1,000 kg
Spindle Center to Column
27.953"
710 mm
Max Spindle Nose to Table
28.937"
735 mm
Spindle Speed
10,000 RPM
10,000 RPM
Spindle Taper
CAT40
CAT40
ATC
24
24
Max. Tool Length
9.8425"
250 mm
Max. Tool Weight
15.4 lb
7 kg
CN Control
Fanuc 0i-MF Plus
Fanuc 0i-MF Plus
# Axis
3
3
Equipped With

FANUC 0i-MF PLUS WITH 10.4" LCD SCREEN
12,000 RPM DIRECT DRIVEN SPINDLE, CAT 40
24 TOOLS ATC MAGAZINE
4TH AXIS INTERFACE
COOLANT THROUGH SPINDLE WITH FILTER AND CTS TANK
AIR THROUGH SPINDLE
AIR TANK FOR TOOL MAGAZINE
SCREW TYPE CHIP AUGER
SPINDLE OIL COOLER
OIL LUBRICANT SEPARATOR
GLASS PROTECTED FRONT WINDOW
CHIP BUCKET
ADDITIONAL ONE FLOURESCENT LIGHT
CHIP WASHDOWN COOLANT
ROOF ENCLOSED SPLASH GUARD
OIL SKIMMER
COOLANT EQUIPMENT
AIR GUN
COOLANT GUN
ALARM LIGHT & WORK LIGHT
AUTOMATIC POWER-OFF SYSTEM
TOOLBOX
FOUNDATION BOLT KIT
WOODEN PACKING SKID
