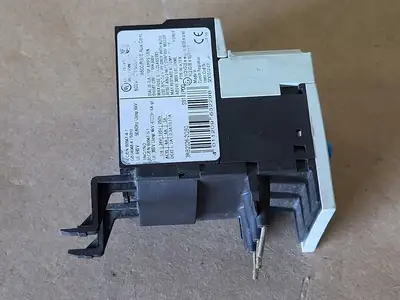

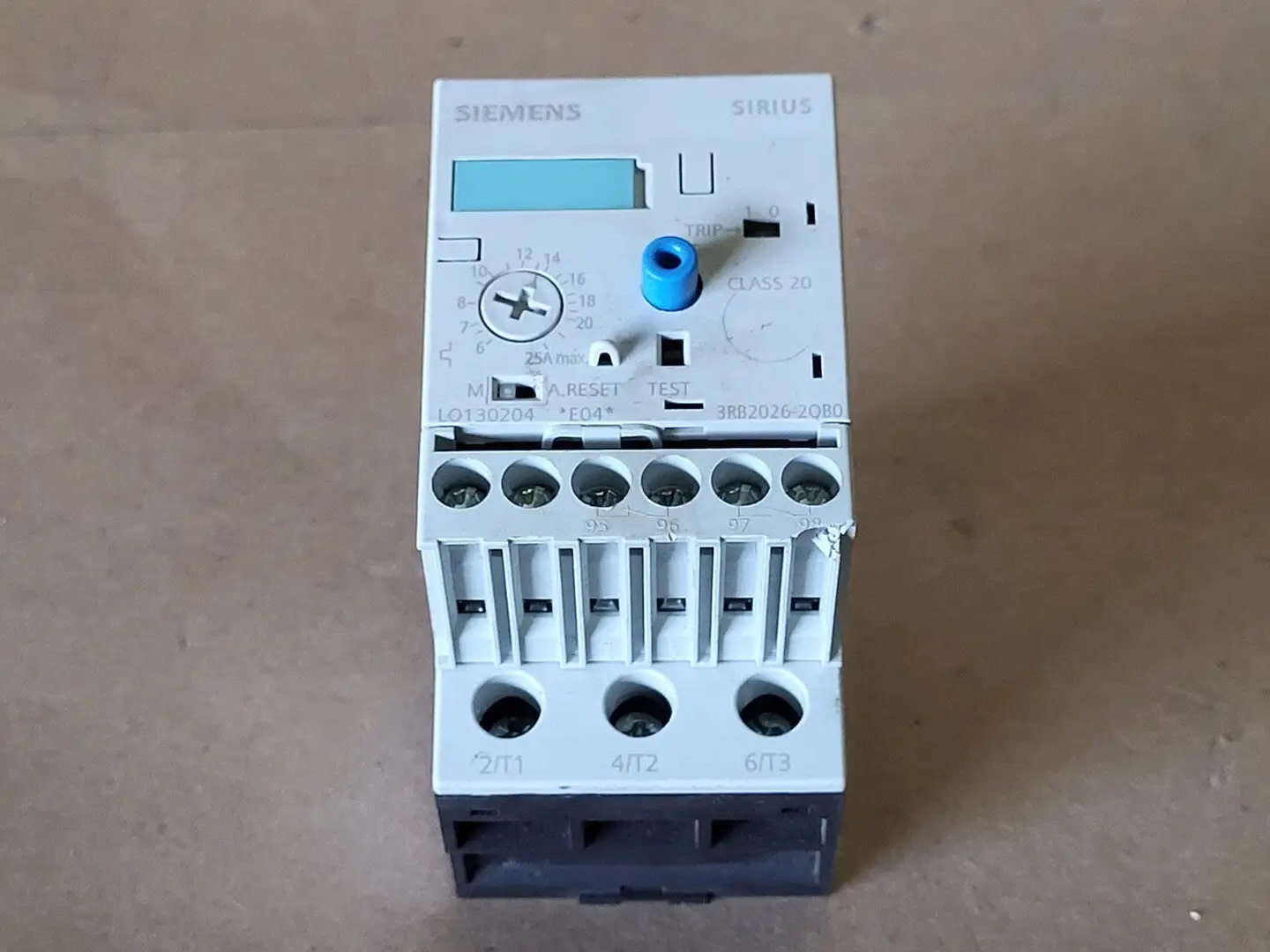

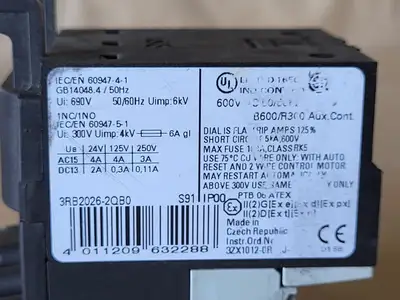

USED SIEMENS 3RB2026-2QB0

Amps: 25 amps
Relay Type: Overload Relay
Application: Motor Protection
Current Adjustment Range: 8 to 20 Amps
Maximum Current: 25 Amps
Trip Class: Class 20
Reset Options: Manual / Automatic
Control Voltage (Ue): 24V, 125V, 250V
AC-15 Rating: 4A at 24V/125V, 3A at 250V
DC-13 Rating: 2A at 24V, 0.3A at 125V, 0.11A at 250V
Rated Insulation Voltage (Ui): 690V
Impulse Withstand Voltage (Uimp): 6kV
Auxiliary Contacts: 1 Normally Open (NO) and 1 Normally Closed (NC)
Short Circuit Protection Requirement: 25A fuse (gL/gG type)
Mounting: Contactor mountable
Trip Indicator: Yes (mechanical trip window)
