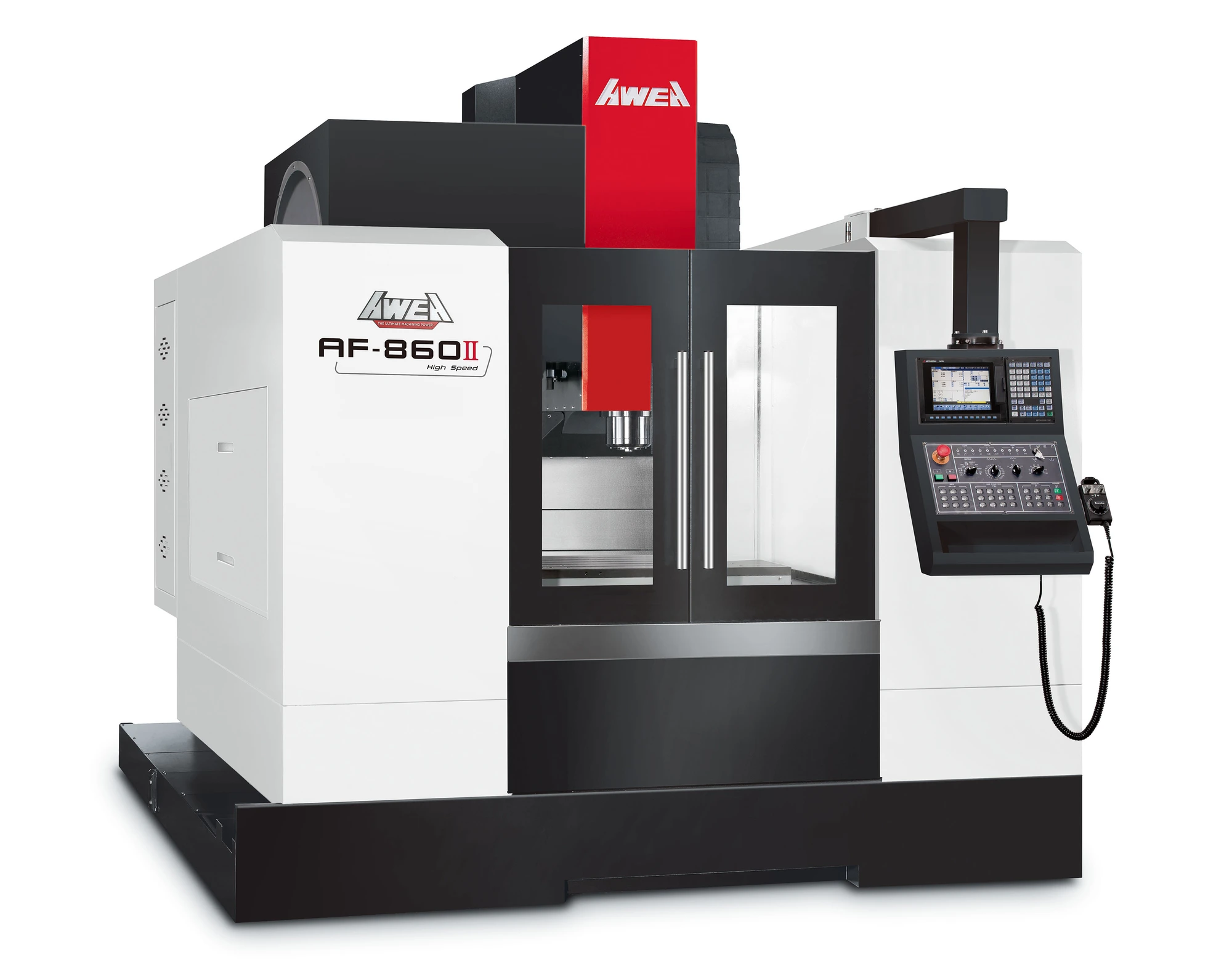

High Performance Vertical Machining Center
Introducing the AWEA AF-II series, engineered with mature manufacturing abilities and advanced technology skills for exceptional machining performance. Key features include:
• High rigidity structure and three axes high precision linear guide way design
• Fast arm type ATC and chip conveying system for efficient operation
• Broadly used in high precision machine parts manufacturing, meeting current and future demands
• Specialized for high precision parts and mold machining industry, offering high precision and efficiency at a reasonable cost
• X-axis travel ranging from 650 mm to 1,800 mm, and Y/Z axes travel from 510 mm to 800 mm, catering to major working needs
• Three axes equipped with high precision linear guide way design for optimal control and efficient movement, with options for roller or ball type guide way
• Highly efficient 24T arm type magazine design ensures fast and reliable tool changes
• Rotary operation panel and large width protection door for convenient operation and spacious loading/unloading
• Independent coolant tank system for easy maintenance, with a high-pressure coolant pump for efficient cooling capabilities.
| X-Axis Travel | 860 mm | 33.858" |
| Y-Axis Travel | 650 mm | 25.591" |
| Z-Axis Travel | 610 mm | 24.016" |
| Table Size-X | 1,000 mm | 39.37" |
| Table Size-Y | 650 mm | 25.591" |
| Table Load Capacity | 700 kg | 1,543.2 lb |
| Spindle Center to Column | 710 mm | 27.953" |
| Max Spindle Nose to Table | 735 mm | 28.937" |
| Spindle Speed | 10,000 RPM | 10,000 RPM |
| Spindle Taper | BT40 | BT40 |
| X/Y Axis Rapid Feed Rate | 48 m/min. | 1,889.8 in/min. |
| Z-Axis Rapid Feed Rate | 36 m/min. | 1,417.3 in/min. |
| Cutting Feed Rate | 40 m/min. | 1,574.8 in/min. |
| ATC | 24 | 24 |
| Max. Tool Length | 250 mm | 9.8425" |
| Max. Tool Weight | 7 kg | 15.4 lb |
| CTS | 20 BAR | 20 BAR |
| CN Control | MITSUBISHI M80 | MITSUBISHI M80 |
| # Axis | 3 | 3 |
MITSUBISHI M80 CN CONTROL
24 TOOLS ATC MAGAZINE, BT40
20 BAR COOLANT THROUGH SPINDLE SYSTEM
SPINDLE AIR CURTAIN
SPINDLE OIL CHILLER
COOLANT NOZZLES AROUND SPINDLE
AIR CONDITIONER FOR ELECTRIC CABINET
ROOF ENCLOSED SPLASH GUARD
AIR BLOW SYSTEM
RIGID TAPPING
CENTRALIZED AUTOMATIC LUBRICATION ( X / Y / Z )
OIL SKIMMER
RJ-45 ETHERNET INTERFACE
COOLANT EQUIPMENT
AIR GUN
COOLANT GUN
ALARM LIGHT & WORK LIGHT
AUTOMATIC POWER-OFF SYSTEM
TOOLBOX
CE VERSION
