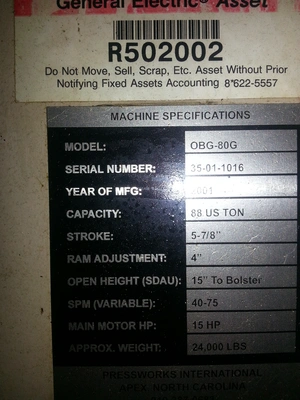

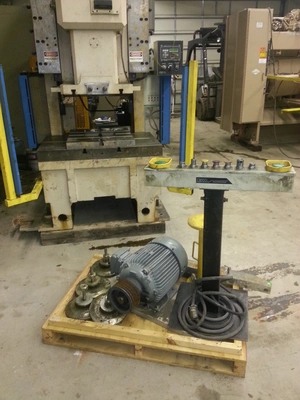

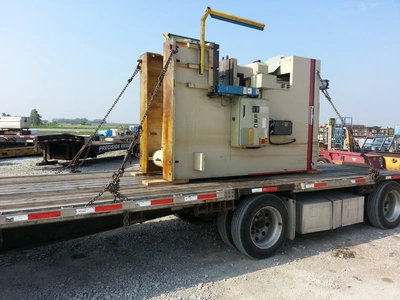

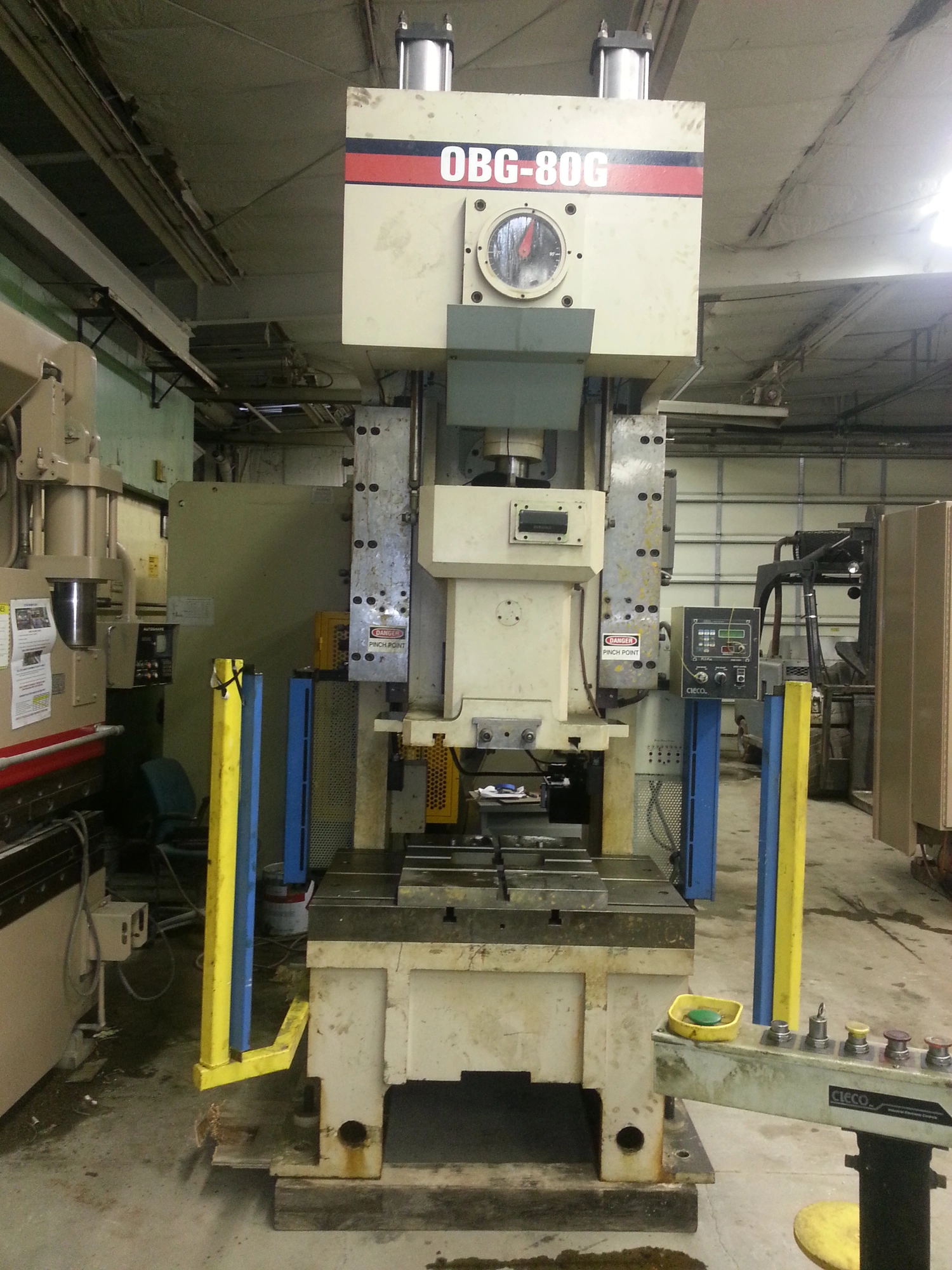

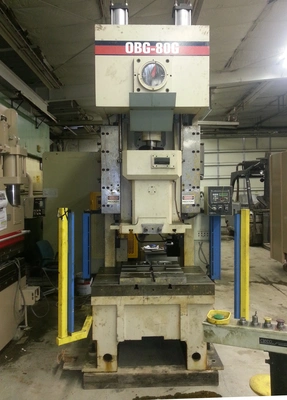

USED 2001 PRESSWORKS OBG-80G

EQUIPPED WITH:

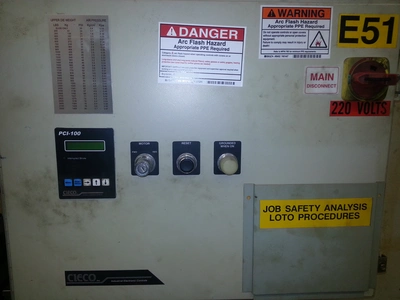

CIECO PCI-100 CONTROL PANEL

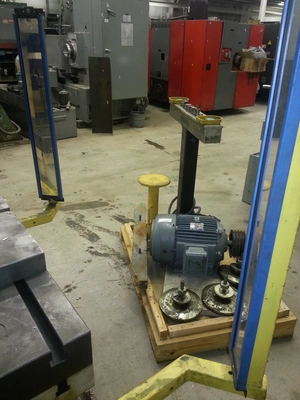

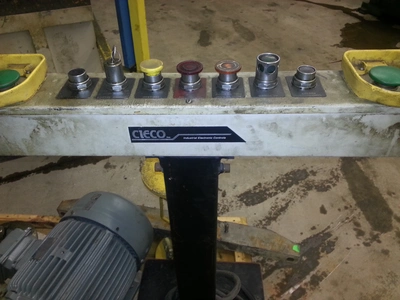

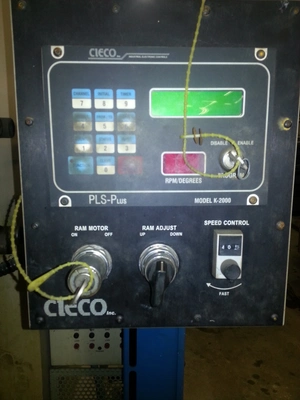

CIECO T-STAND CONTROL

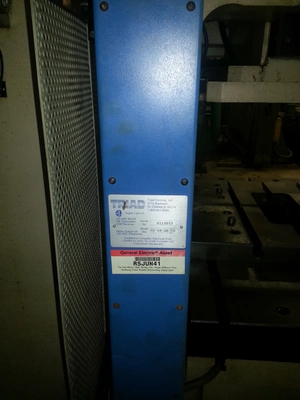

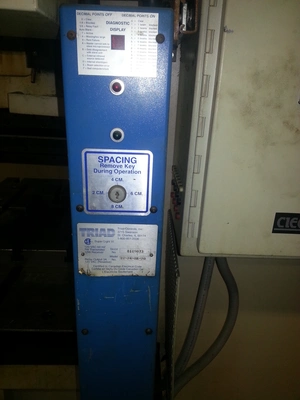

TRIAD SUPER LIGHT VI LIGHT CURTAINS AND MIRRORS
- MODEL TH-24-8K-20, SN 0119073

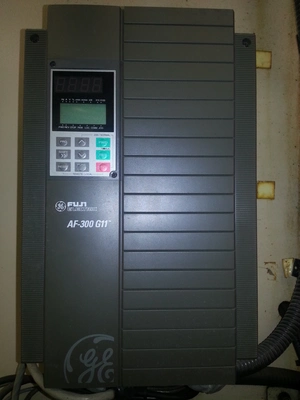

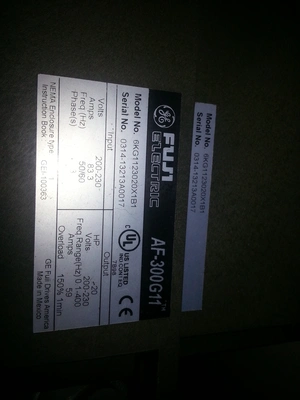

FUJI ELECETRIC AF-300G11
- MODEL 6KG1123020X1B1, SN 0314-13213A0017

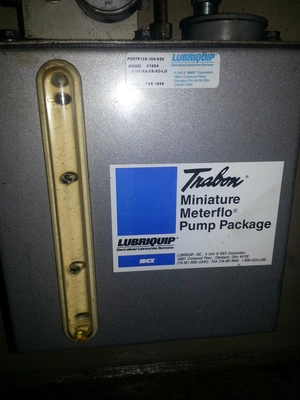

LUBRIQUIP LUBRICATION SYSTEM, MODEL 21684

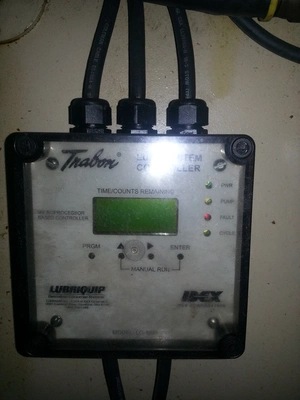

- TRABON LUBRICATION CONTROLLER
- TRABON LUBRICATION PUMP

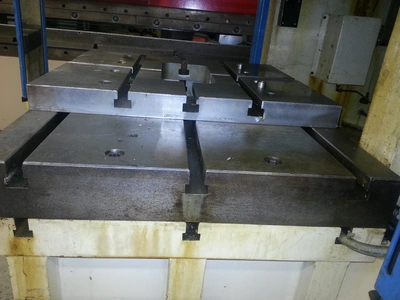

TOP BOLSTER:
- 24 in LR x 28 in FB
- 3, 1 in T-SLOTS FB, 6 in APART, 8 in FROM EDGE
- 1, 1 in T-SLOT LR, 12 in FROM EDGE
CENTER OPENING - 12 in LR x 6 in FB
SHUT HEIGHT - 15 in
BOLTS - 8, 1 in BOLT HOLES LR, 6 in APART, 4 PER SIDE

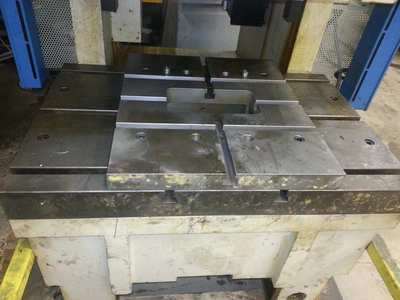

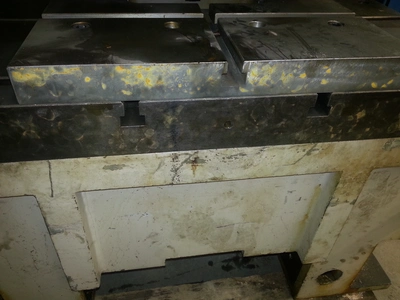

BOTTOM BOLSTER:
- 44 in LR x 28 in FB
- 3, 1 in T-SLOTS FB, 11 in APART, 3 in FROM EDGE
- 2, 1 in T-SLOTS LR, 12 in APART, 16 in FROM EDGE

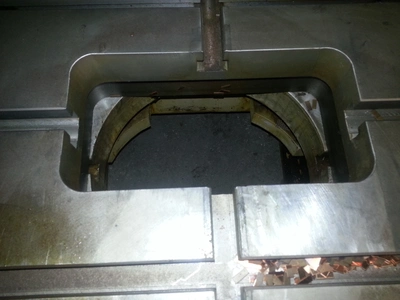

CENTER OPENING - 14 in LR x 10 in FB
SHUT HEIGHT - 18 in
BOLTS - 4, 1 in BOLT HOLES FB, 11 in APART, 2 PER SIDE
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
