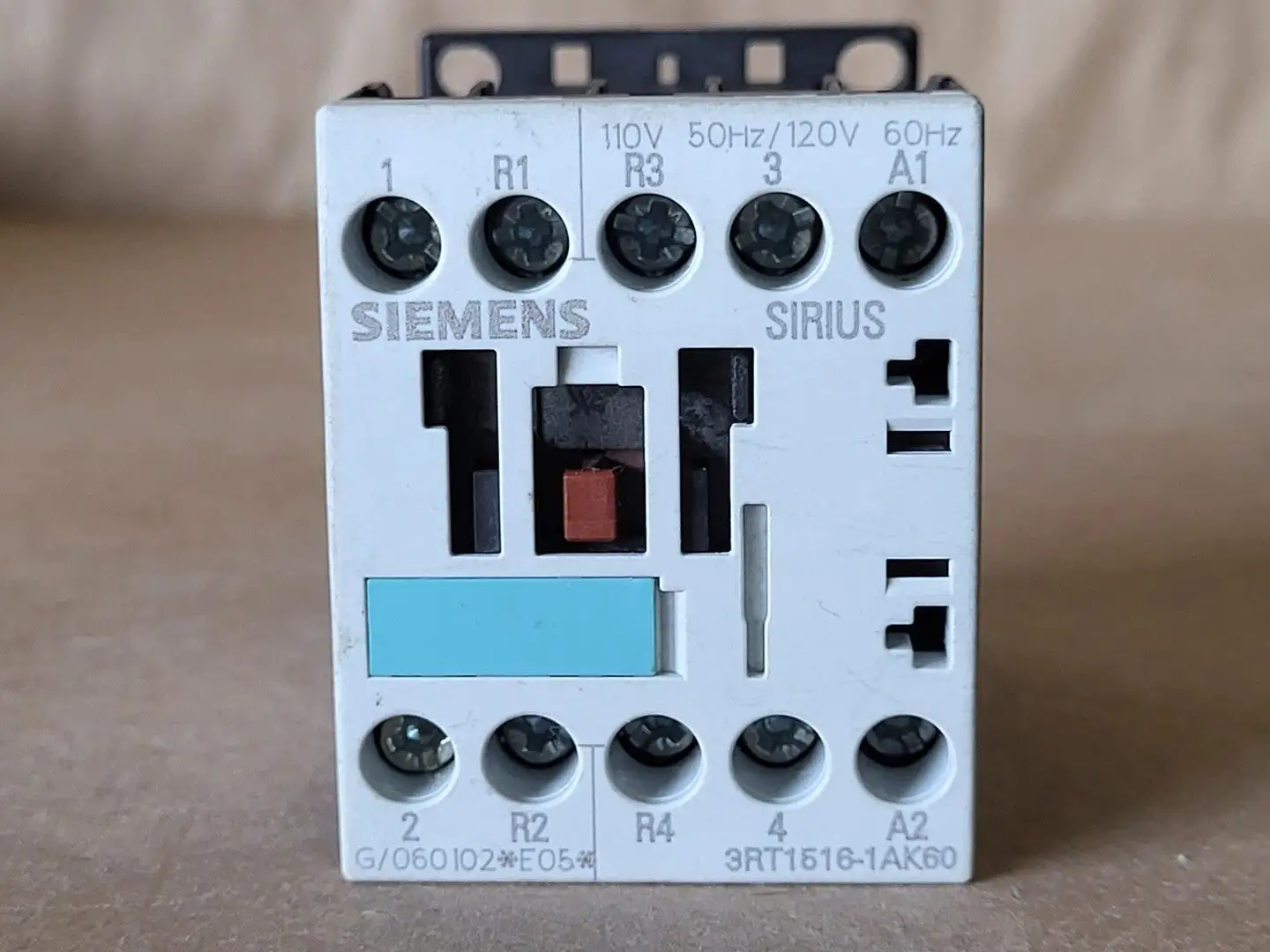

USED SIEMENS 3RT1516-1AK60

Voltage: 120 volts
Amps: 18 amps
Mounting Type: DIN rail or screw mount
Coil Voltage: 110V AC at 50Hz / 120V AC at 60Hz
Rated Operational Current (Ie) AC-1: 18 A
Rated Insulation Voltage (Ui): 690 V
Power Ratings (AC-3):
230V: 3 kW
400V: 4 kW
690V: 5.5 kW
AC-3 Current Ratings:
230V: 9 A
400V: 9 A
690V: 5.2 A
AC-15 (Control Circuit) Ratings:
230V: 6 A
400V: 3 A
690V: 1 A
UL / CSA Ratings:
Single Phase Horsepower: 1 HP at 115V, 1/3 HP at 230V
Three Phase Horsepower: 3 HP at 230V, 5 HP at 460V, 7.5 HP at 575V
Short Circuit Rating: 5 kA at 600V
Maximum Fuse (RK5): 60 A
Maximum Circuit Breaker: 50 A
Auxiliary Contact Ratings: A600 / P600
Terminal Wire Size:
Solid or Stranded: 0.5 to 2.5 mm^2
AWG: 18 to 14 AWG
Tightening Torque: 0.8 to 1.2 Nm (7.1 to 10.3 lb-in)
