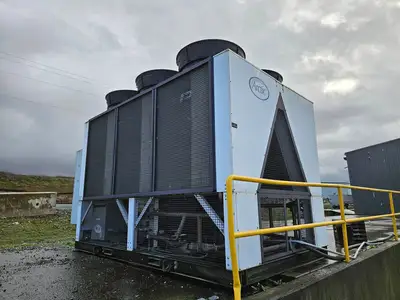

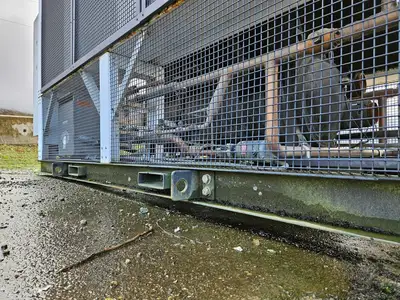

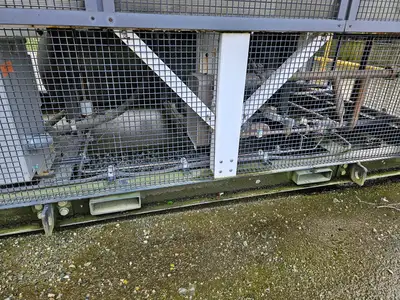

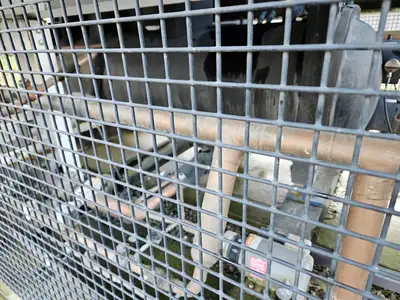

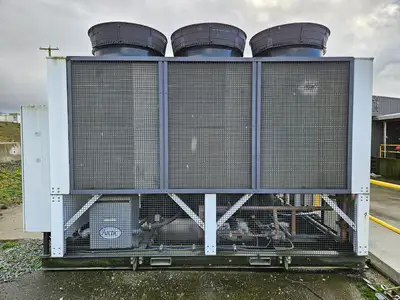

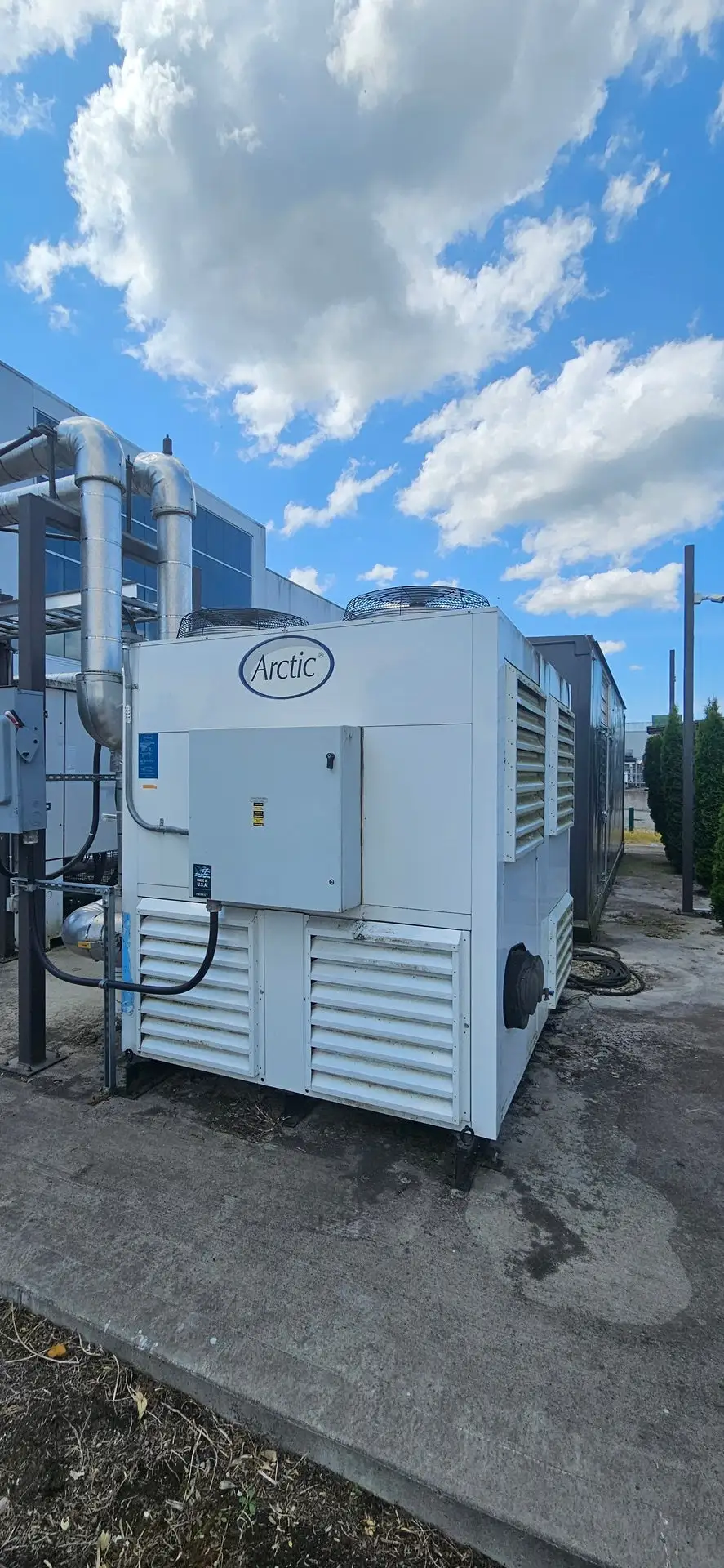

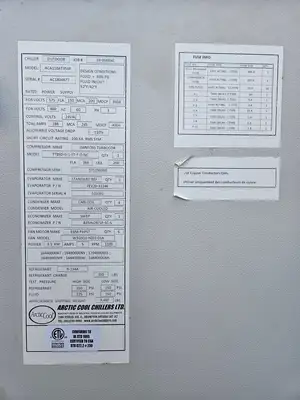

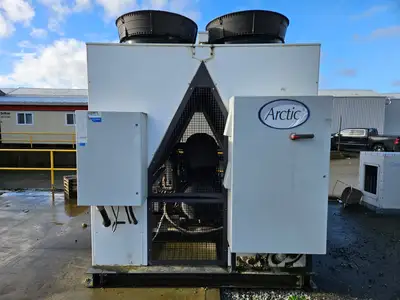

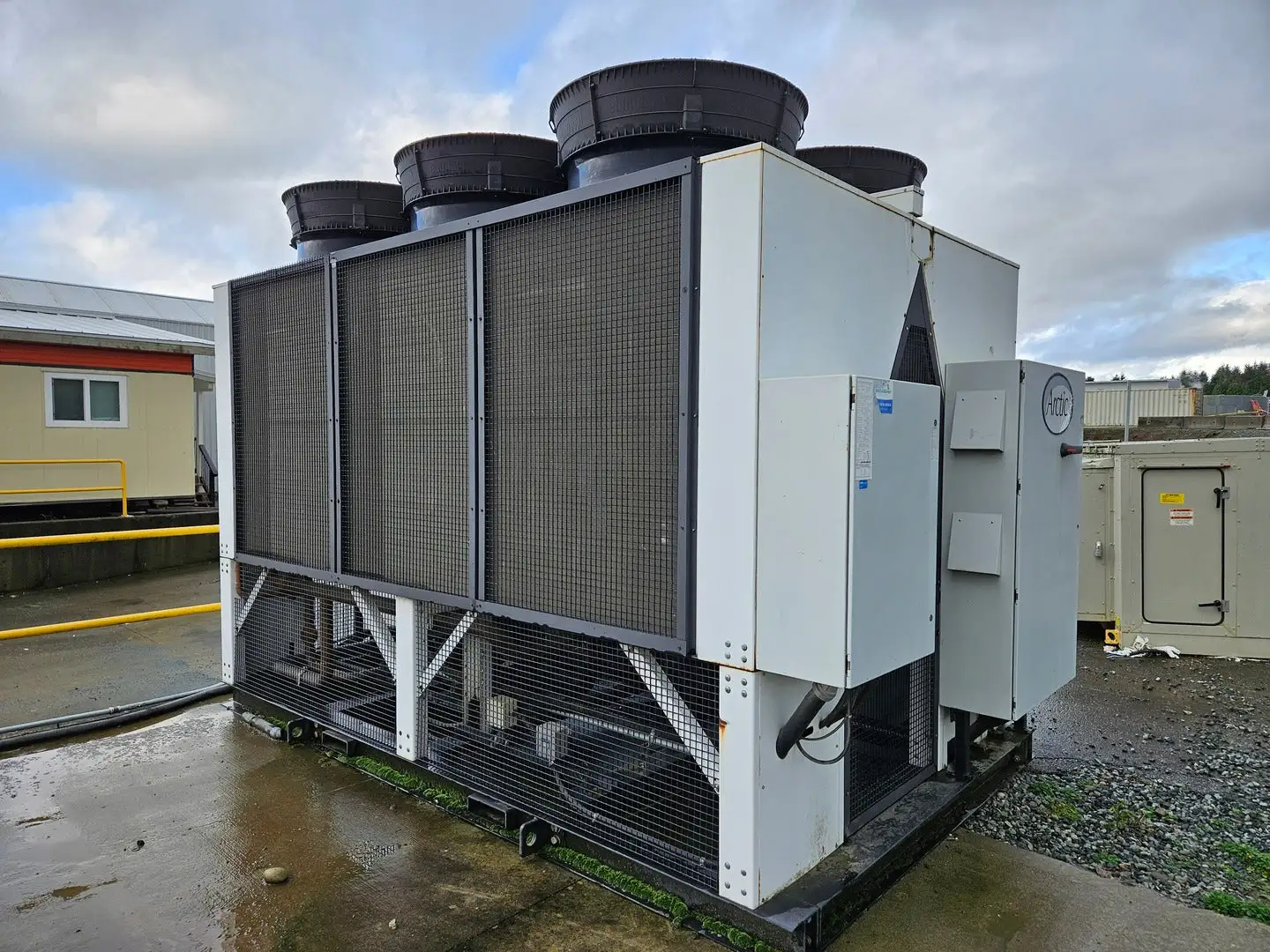

USED 2018 ARCTICHILL ACA110AT356F

PDF BROCHURE
Chiller
Nominal Capacity: 110 Ton
Design Conditions:
Fluid = 30% PG
Fluid In/Out: 52F / 42F

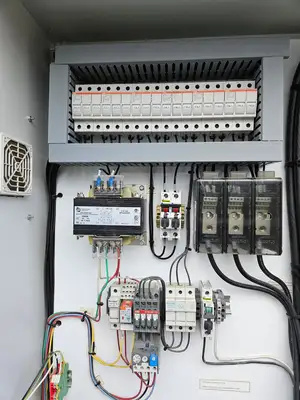

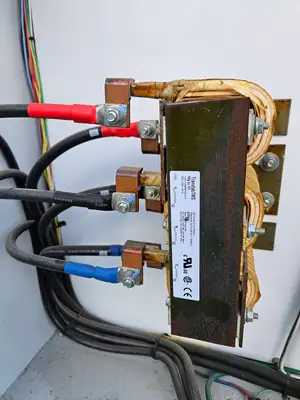

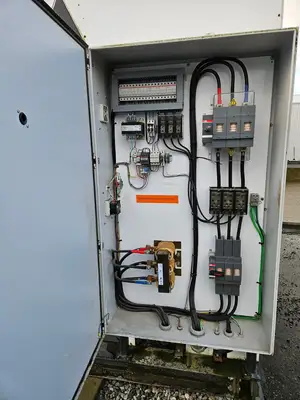

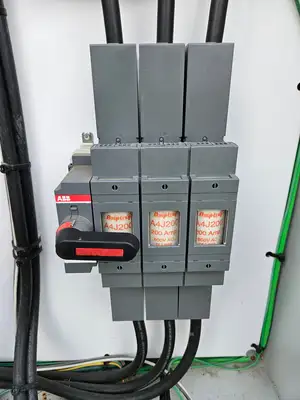

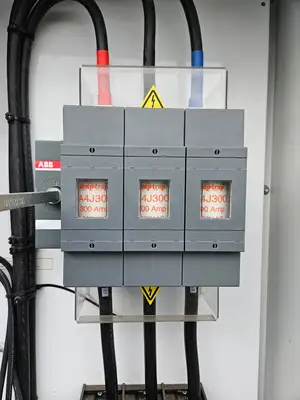

Rated Power Supply
For 575 Volts 3-Phase:
FLA: 150 / MCA: 200 / MOCP: 350A
For 460 Volts 3-Phase:
Total Amps: 188 / MCA: 245 / MOCP: 400A

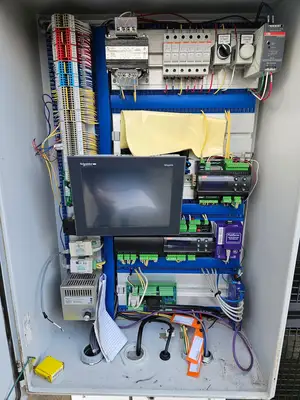

Control Volts: 24 VAC
Allowable Voltage Drop: +/- 10%
Short Circuit Rating: 100 kA RMS sym.
Compressor
Make: Danfoss Turbocor
Model: TT350-G-1-ST-F-O-NC
Qty: 1
FLA: 166
LRA: 200

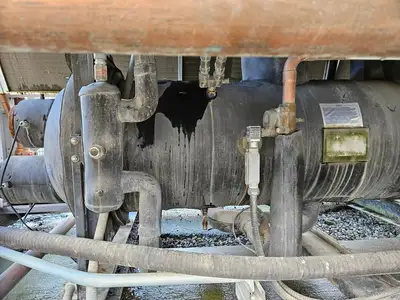

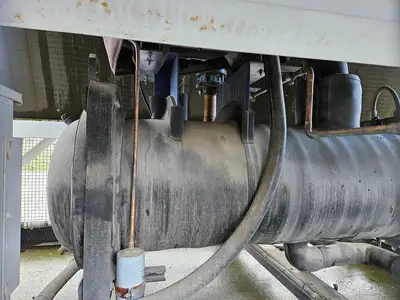

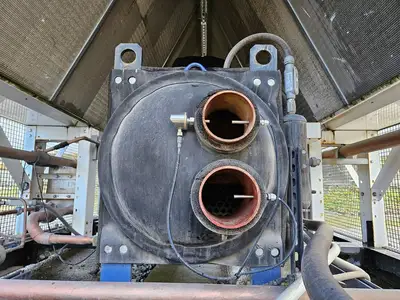

Evaporator
Make: Standard Ref.
Part Number: FEV20-32246
Qty: 1

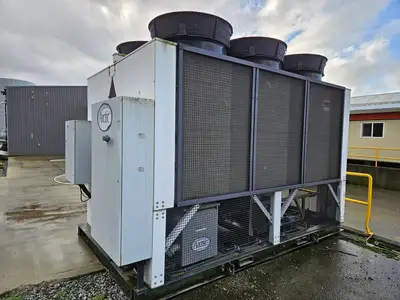

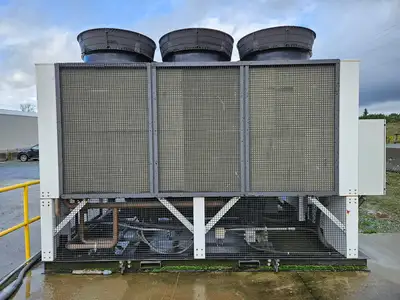

Condenser
Make: Can-coil
Model: Air-Cooled
Qty: 4
Economizer
Make: Swep
Part Number: B35Hx28/1P-SC-S
Qty: 1

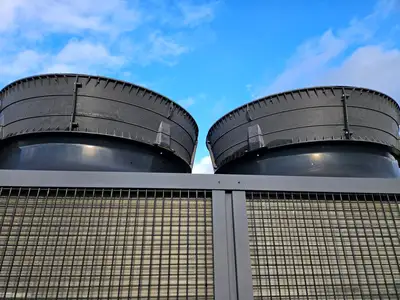

Fan Motor
Qty: 6
Power: 3.1 kW
Amps: 5 A
RPM: 1195 rpm
Refrigerant: R-134A
Refrigerant Charge: 350 lbs
Test Pressure:
High Side: 250 PSI refrigerant / 225 psi fluid
Low side: 150 psi refrigerant / 150 psi fluid
