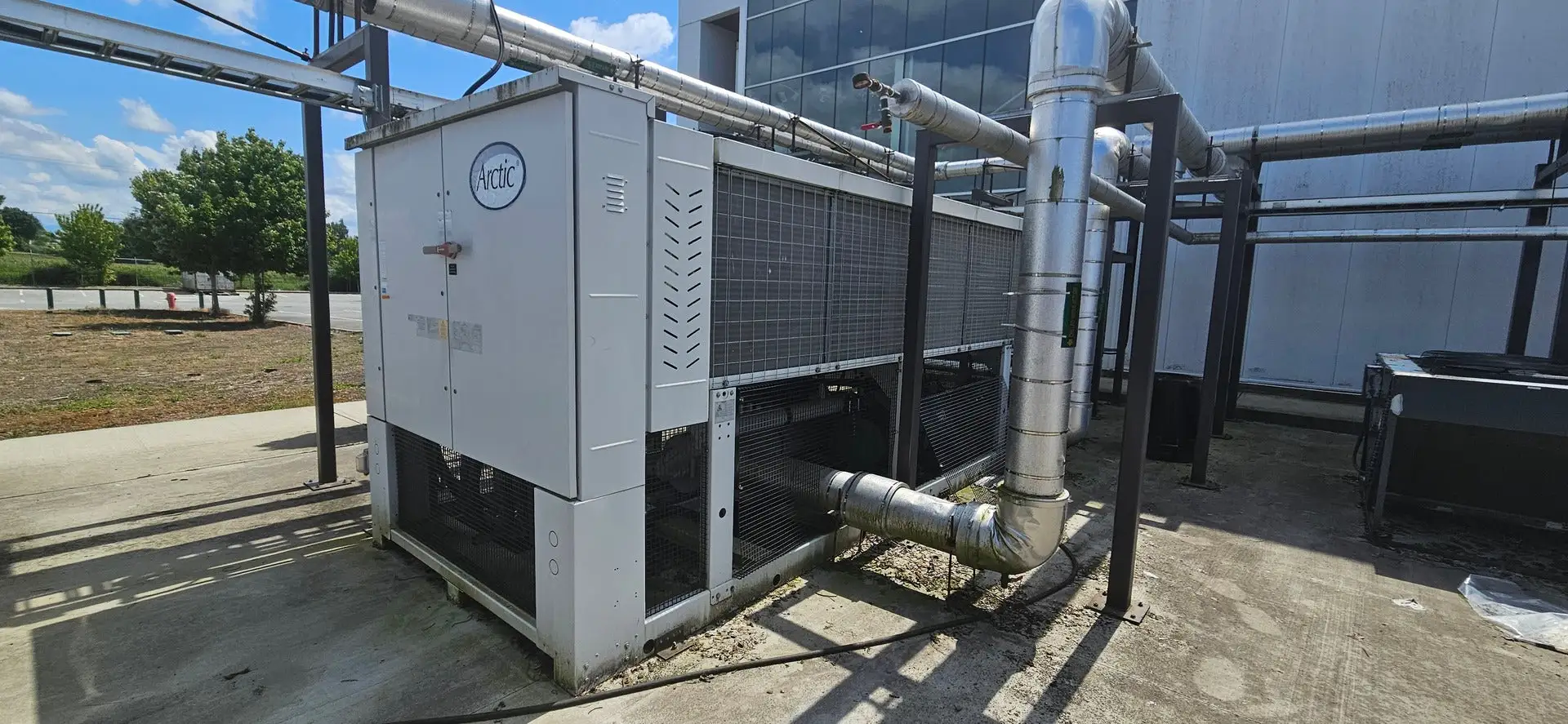

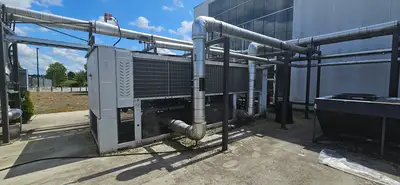

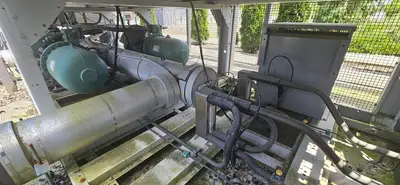

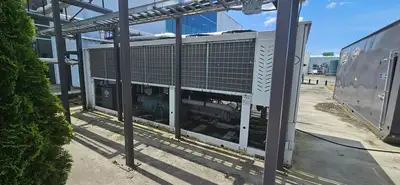

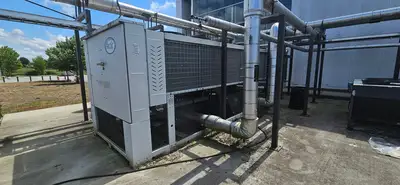

NEW ARCTIC COOL ACAS200BB12F

PDF MANUAL
Chiller
Nominal Capacity: 200 Ton
Design Conditions: Fluid = 30% propylene glycol at 42F and 52F RWT
Flow: 526 GPM @ 9.07 P.S.I.P.D.
Rated Power Supply
For 575 Volts 3-Phase:
FLA: 280 / MCA: 310 / MOCP: 400A
For 460 Volts 3-Phase:
Total Amps: 350 / MCA: 388 / MOCP: 500A
Control Volts: 24 VAC
Allowable Voltage Drop: +/- 10%
Short Circuit Rating: 5 kA RMS sym.
Compressor
Make: Bitzer
Model: CSH8583-125Y
Qty: 2
FLA: 150
LRA: 188
Evaporator
Make: Onda
Part Number: SSE 32.206.3300/2 SX-2S/S
Qty: 1
Condenser
Model: Air-Cooled
Qty: 4
Economizer
Make: Swep
Qty: 2
Fan Motor
Qty: 12
Power: 3.5 hp
Amps: 4 A
RPM: 1195 rpm
Refrigerant: R-134A
Refrigerant Charge Per Circuit: 205 lbs.
Test Pressure:
High Side: 250 PSI refrigerant / 225 psi fluid
Low side: 150 psi refrigerant / 150 psi fluid
