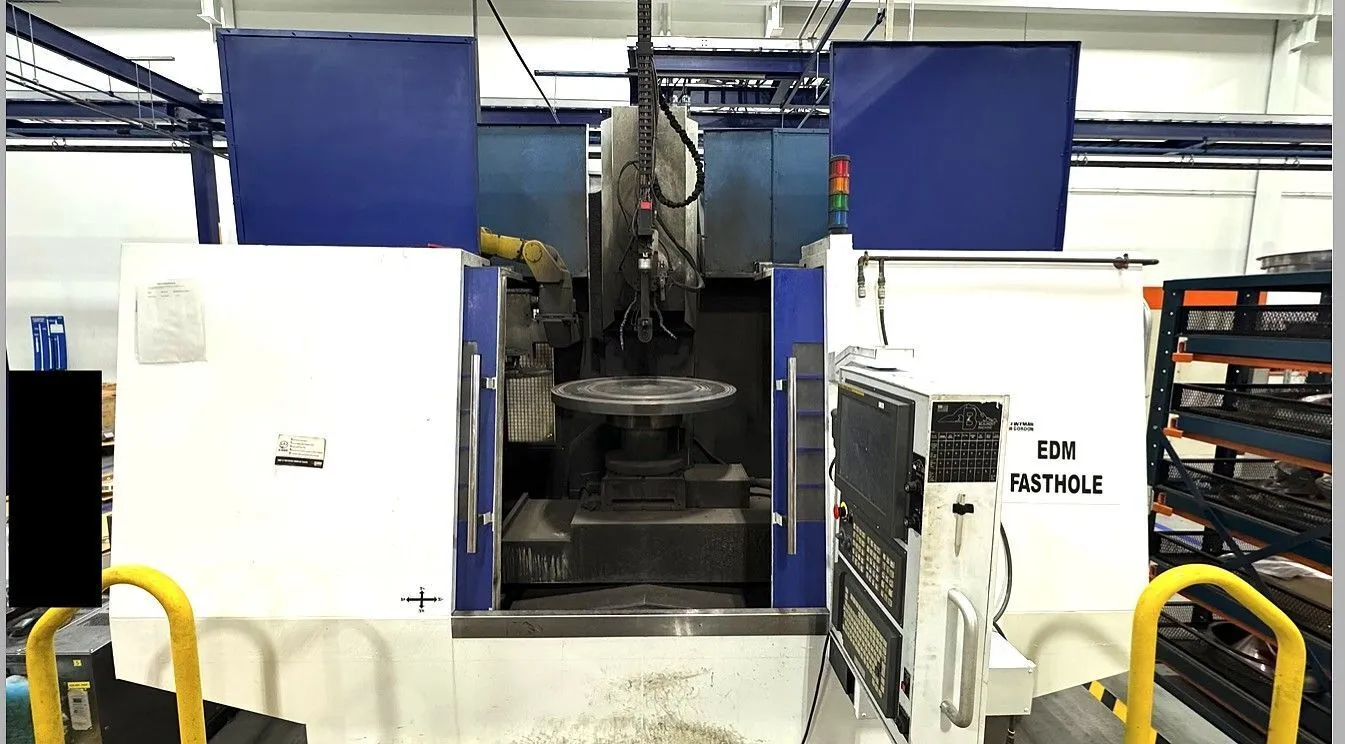

USED 2008 BEAUMONT FH 50/60
Overview
2008 BEAUMONT FH-50/60 6 AXIS FAST HOLE CNC EDM
Top Condition Very Low Hours! Full Enclosure & All Options.
Main Specifications:
Electrode Capability 24"
Electrode Diameter 0.012"-0.750"
Spindle Speed 3000 RPMs
Filtration System 150 Gallon DI System
Max. Workpiece Weight 2500 Lbs.
Max Workpiece Height Z- 22" w/o riser
Table Size X & Y 56" x 26"
Options:
Auto Electrode Changer Fanuc Robot Tool Changer
Fully Installed Under Power for Inspection on Appo
Large Work Envelope: Features Micro-plus Technology
FH-50 Model Travels X-Y-Z Axis 50" x 30" 26"
Please Note: Specifications Same as Catalog FH-60 Model.
Except Table Travel 50" on X-Axis Vs. 60" Model.
* Full Enclosure with 1000 PSI High Pressure Coolant System.
* Optional Arm Changer System
Features:
Micro-Pulse Technology
* Eliminates Micro-Cracking and Re-Cast Layer
Breakthrough Technology
* Eliminates Back striking
Diffuser Shape Technology
* The Ability to Create Shaped Holes.
New Information with Under Power Photos
and Operational Videos in Process.!.
I look forward to your questions & Interest.
Sincerely,
Mark Murphy
Murphy Machinery
Specs
BEAUMONT FH-50 Machine Large Capacity
Fast Hole Machine!
Electrode Capability 24"
Electrode Diameter 0.012" - 0.750"
Rapid Speed 400 In/Min
Spindle Speed 3000 RPMs
X, Y, Z axis travel 50" x 30" 26”
Main Specifications
Filtration System 150-gallon DI system
Feed Back Absolute Encoders and
Glass Scales
Max Work Piece Weight 2500 lbs.
Max Work Piece Height (Z) 22” w/o riser
Table Size (X & Y) 56” x 26”
Output Amperage Up to 65 amps Cont.
Amperage Settings 1 Amp Increments
Capacitance range 0--8.95 mf
Power Supply
Equipped Options
Fanuc Robot Auto Electrode Tool Changer
Fanuc Robot Guide Changer Tool Changer
Workpiece probing for positioning accuracy
Slot Technology
Diffuser Shape Technology
Depth Tracking
Crash Protection
