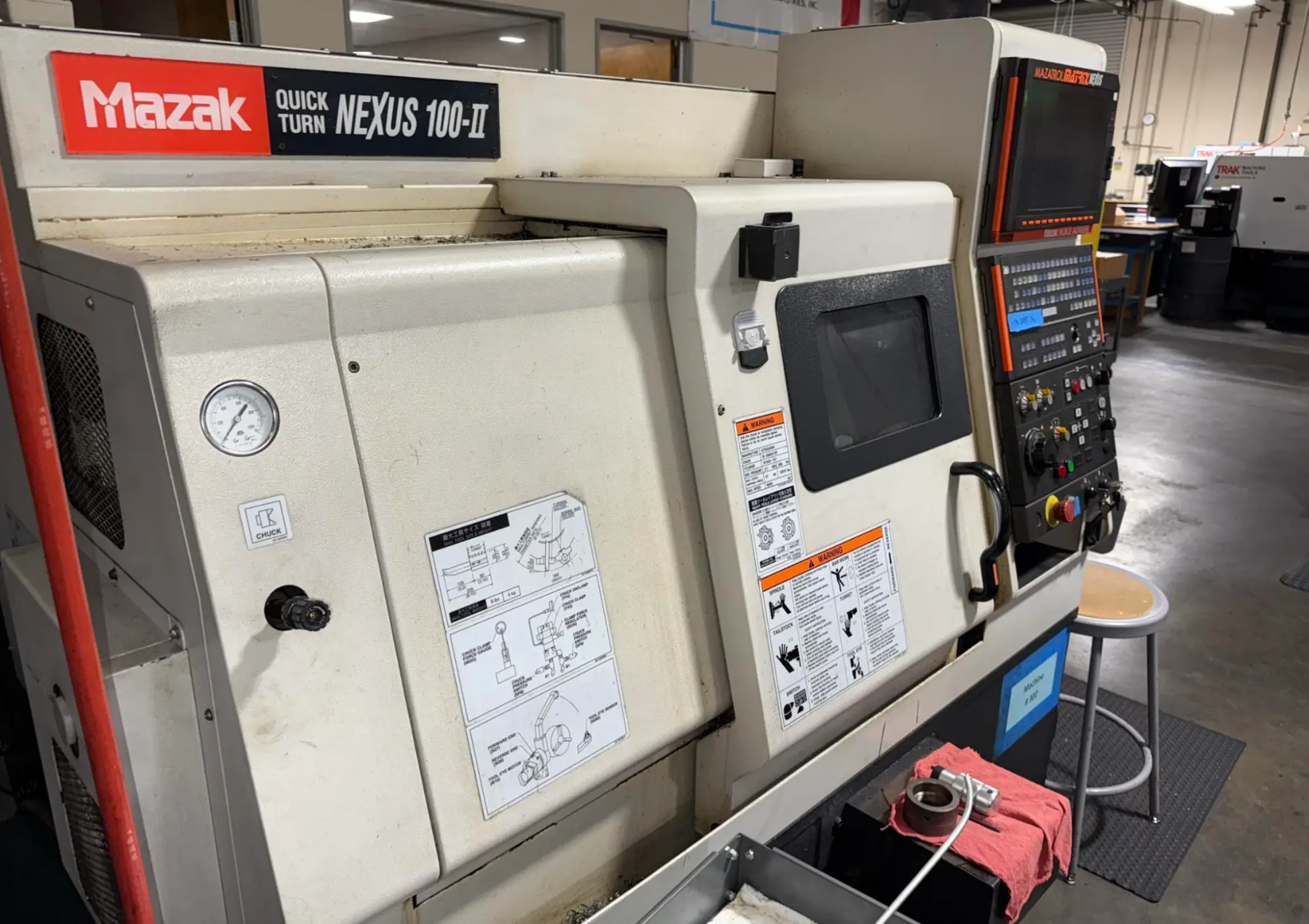

USED 2006 MAZAK QUICK TURN NEXUS 100-II

Used CNC lathe offers 21.6" swing, 2-axis, 6" chuck, 15 hp, and 6,000 RPM. Includes Mazatrol Matrix Control, tailstock, 12-position turret, hydraulic chuck, collet chuck, tool eye. Approx weight 7,500 lbs.

MAXIMUM SWING........................... 21.65"

SWING OVER CARRIAGE..................... 11"
MAX MACHINING DIAMETER.................. 11"
SPINDLE BORE/BAR WORK CAPACITY.......... 2.4" / 1.65"
X-AXIS TRAVEL........................... 7.5"
Z-AXIS TRAVEL........................... 13"

SPINDLE SPEED........................... TO 6,000 RPM

SPINDLE NOSE............................ A2-5

CHUCK SIZE.............................. 6"

TURRET CAPACITY......................... 12 TOOLS

RAPID TRAVERSE RATE (X/Z AXIS).......... 1,181/1,299 IPM

SPINDLE MOTOR........................... 15 HP

MACHINE SIZE........ 74" X 64" X 71" TALL


APPROXIMATE MACHINE WEIGHT.... 7,500 LBS

Mazatrol Matrix Control
Tailstock
12 Position Turret
6” Hydraulic Chuck (1.65” bar capacity)
5C Collet Chuck
Tool Eye
