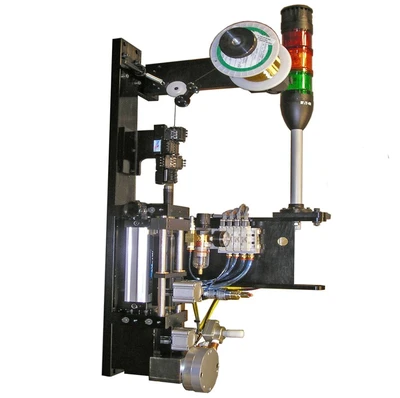

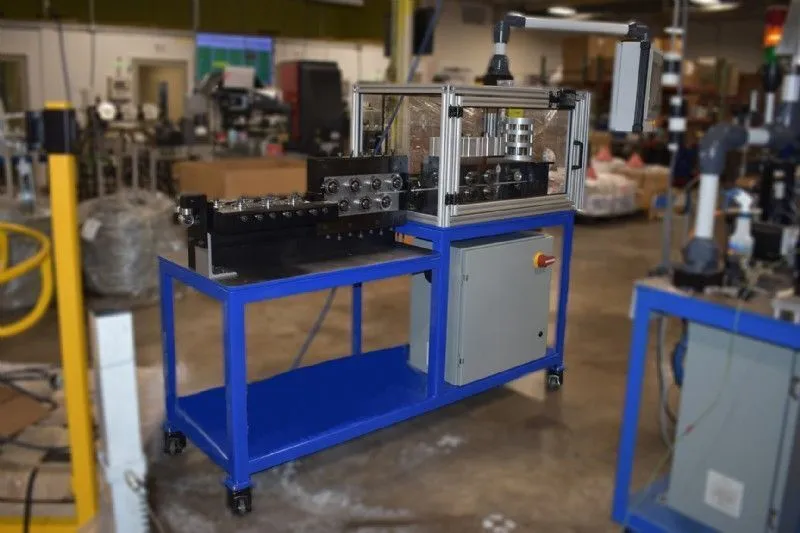

NEW NOVO Precision Machine PNEUMATIC SFC

Every Novo cut to length machines are capable of providing close tolerance length cuts—some +/- .002”—as well as cut.
Wire Cut Machine ends that are clean, square, and burr free. If the system utilizes our precision-grade wire straighteners, the user is assured to get the straightest parts.
Wire Cutting Options
Novo offers a number of cut to length system options that provide extended performance characteristics for all the Novo wire cutting equipment. These options can be combined in any way to make the most effective configuration for the application.
Options include:
Fine Adjustment DeviceCut to Length System
Cut to Length Systems
Data Display
Production Performance Package
Sound & Safety Enclosure

Operation
I/O Remote Activation
Parts Counter
Wire out Sensor
Base Plate
Safety Cover
Stroke Length Limit
# of strokes
Electrical Requirements
Air Requirements
Air Regulator
Tooling Material Make-up
Part Length Adjustment
Emergency Kill Switch
Length of Piece Tolerance
System Out-put for Lengths
Sized System Tooling
System Hand Tools
System Controller
4 Modes of Operation
Parts Collection
System Alarms – Option Dependant
Production Performance Package
Wire Payoff / Decoiler
Wire Straightener
Wire Cleaner / Lubricator
Fine Adjustment Device
Type
Reset
History
Automatic
Standard
Standard
Standard
Standard
Fast - Versatile - Reliable
Standard– Clear Molded Lexan / Interlock
6” or 12” Standard – ( ¼” & 3” on Series #02 )
1 to 300 ( Programmable )
110 VAC 2 amps Standard – Others Optional
80 psi Clean & Dry
Standard- with Filter
Various – Application Dependant – Carbide Typical
Manual – Set by Caliper / Gauge Block
Standard- Manual
+/- .002” Typical - .0005” Achievable
Application Dependant - <12” Up to 450 ppm
Program Screen
Batch
Quantity
Skip Value
Main Screen
Admin
Setup
Alarms
Run
Set includes – Grippers, Guides, and Quills - Application Dependant & Sized to fit
Allen Wrench Set Included – Torque Wrench with Optional Straightener
Allen Bradley® PLC – Touch Screen Activated
Single Stroke – Single Stroke Batch – Multi-Stroke – Multi-Stroke Batch
Customer Responsibility – TAK will supply upon request
Wire Out – Payoff Snag – Low Air – Count Reached –Remote Device Error – Cover Off
Optional – System Status Light, Low Air Sensor, Extra I/O, Auto Shut Down, Self Monitoring
Optional– Application Specific – up to 2,000Lb Available – Spool or Coil Configured
Optional– Application Dependant – Usually Required – Includes Interface Adaptor
Optional– Recommended for all tight tolerance straightness applications – Series #02 Only
Optional– Series #02 only
