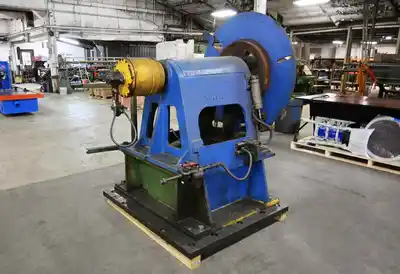

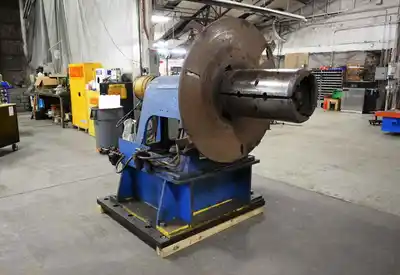

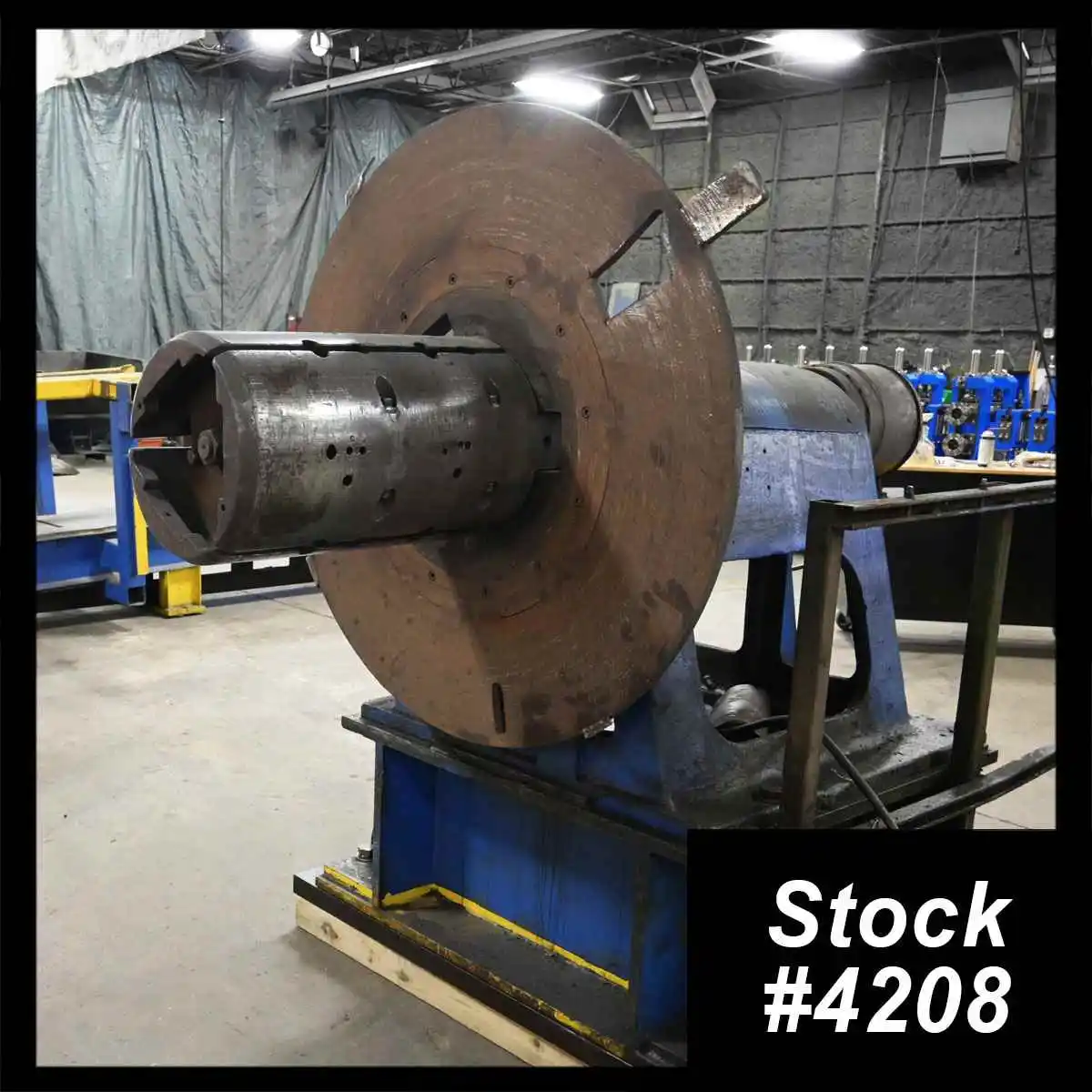

18,000 Lb. x 25″ EQUIPMENT INC Single Uncoiler w/Feed Ramp, Coil Car & Back Stop

SPECIFICATIONS:
Maximum Coil Weight: 18,000 Lb.
Maximum Coil Width: 25″
Coil I.D. Range: 15–18″
Maximum Coil O.D.: 62″
EQUIPPED WITH:
3-Arm Hydraulic Expansion / Contraction
4′ Back Plate
Air Band Brake

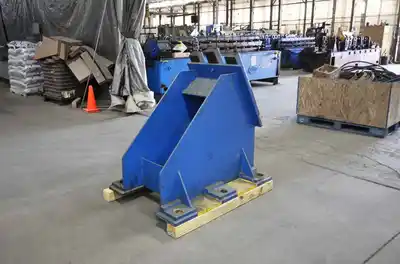

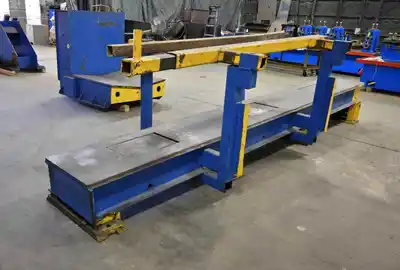

COIL RAMP:
Inside Ramp Dimensions: 16′ x 3′ x 2′ 5″
COIL CAR:
Approx. Lifting Height: 16″
Coil Plate Size: 43″ x 43″
Backrest: 44″ x 39.5″ H
Hydraulic Travel & Lift
Missing Controls
OVERALL DIMENSIONS: Full Truckload
APPROXIMATE WEIGHT: 17,500 LBS
LOCATION: Universal Warehouse, Perrysburg, Ohio

EQUIPPED WITH: 3-Arm Hydraulic Expansion / Contraction 4′ Back Plate Air Band Brake
