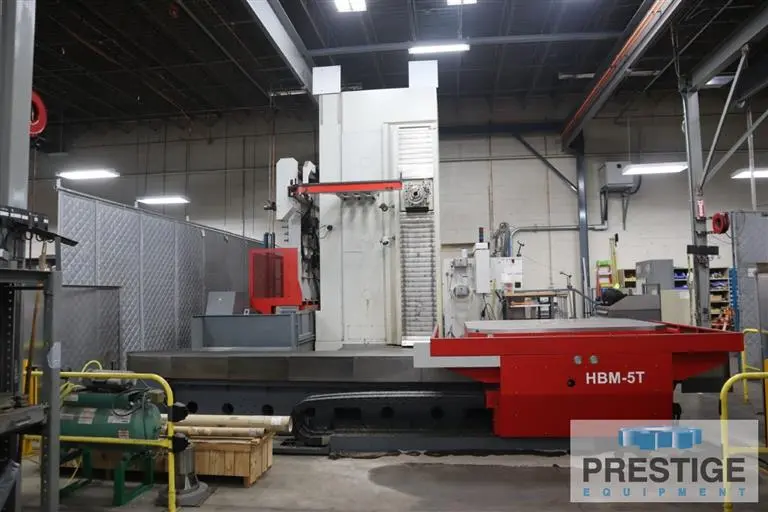

USED 2014 MICROCUT HBM-5T

SPECIFICATIONS:
Spindle Diameter....................... 5.12": 5.12"
Spindle Taper.......................... ISO #50: ISO #50
Cross Travel, X-Axis: 137.79"
Vertical Head Travel, Y-Axis: 102.36"
Column Longitudinal Travel, W-Axis: 55.11"
Spindle Travel, Z-Axis: 27.55
Distance Between Spindle to Table: 0-102.36"
Distance Spindle Nose to Table Center . 9.84"-90.55":
Spindle Speeds, 2-Speed: 35-3000 RPM
Built-In Rotary Table, B-Axis: 70.86" x 86.61"
Table Weight Capacity: 44,000 Lbs.
Rotary Table, Full B-Axis,: 0.001 Deg.
Approx. Dimensions: 333" x 275" x 199"
Approx. Machine Weight: 107,800 LBS

Equipped With:

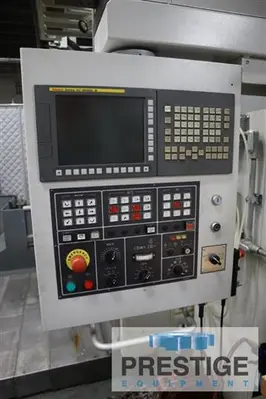

FANUC 31i MB CNC Control and 10.4" LCD Display
RS-232 Interface
Fanuc Spindle & Fanuc Axes Servo Motor Package
T-Type Construction, Infeeding Column

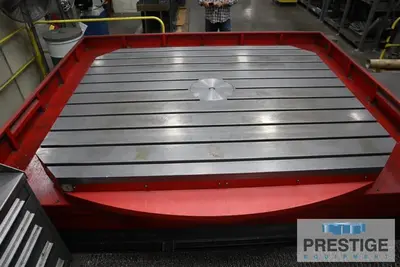

70.86" x 86.6" Built-In Rotary Table (360,000 Deg.)
60 Position Automatic Tool Changer (CAT #50)
Linear Scale for X/Y/Z Axes
Spindle Vibration Supervision Function (SVS)
Spindle Extension Sleeve
Coolant Thru Spindle (20 Bar High Pressure Pump)
Coolant System
Chip Conveyor
Auto Lubrication System
MPG Box
49 HP/60 HP Spindle Drive Motor 220/3/60

Features:
FANUC 31i MB CNC Control and 10.4" LCD Display
Fanuc Spindle & Fanuc Axes Servo Motor Package
T-Type Construction, Infeeding Column
70.86" x 86.6" Built-In Rotary Table (360,000 Deg.)
60 Position Automatic Tool Changer (CAT #50)
Coolant Thru Spindle (20 Bar High Pressure Pump)
