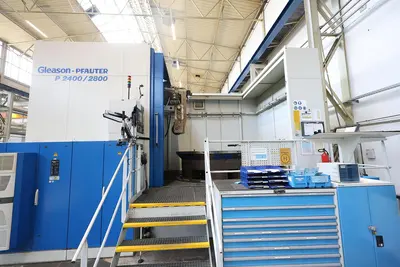

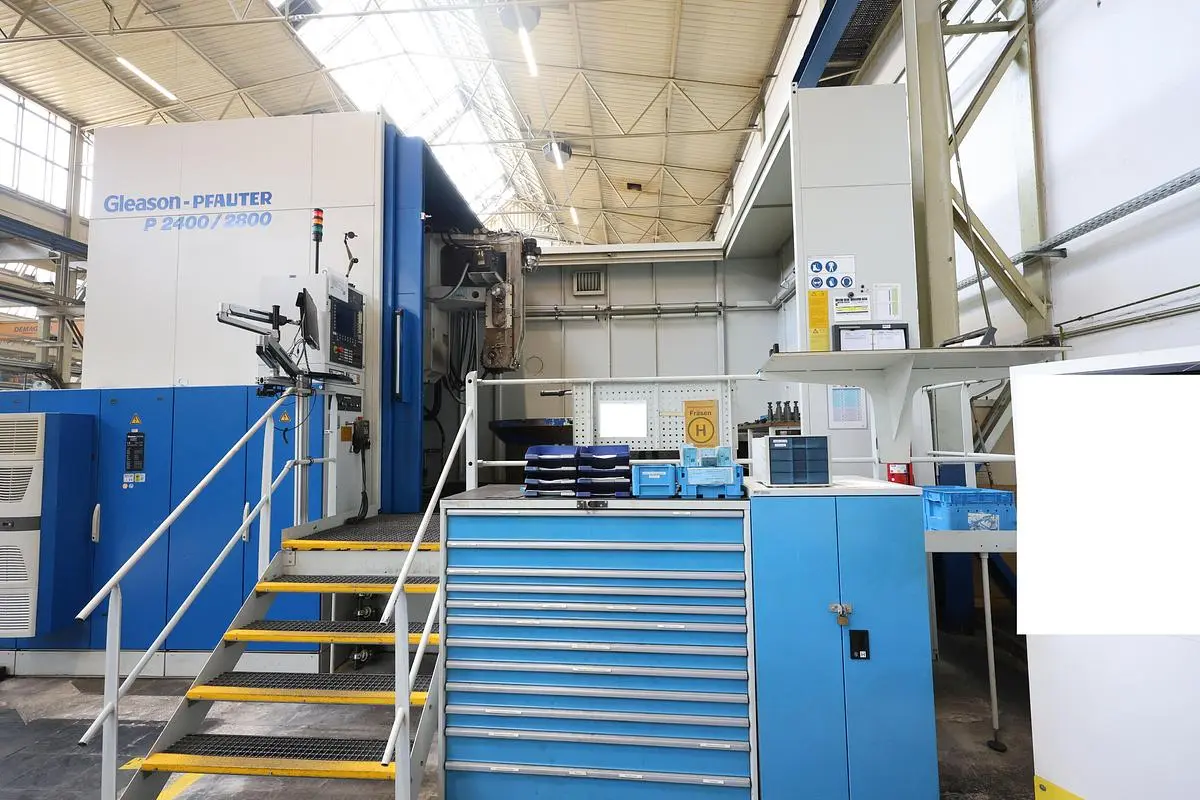

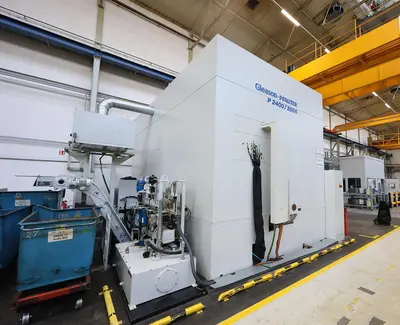

USED 2007 GLEASON PFAUTER P 2400/2800
Overview

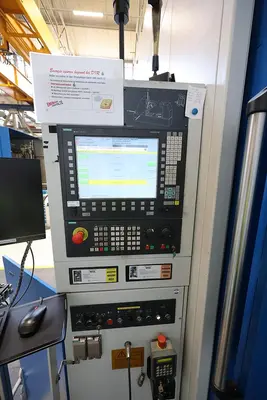

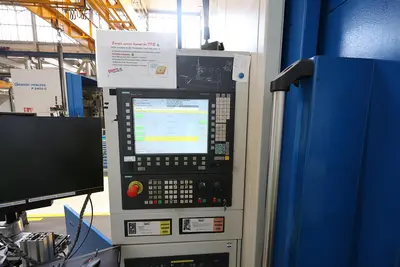

Siemens Sinumerik 840D CNC Control

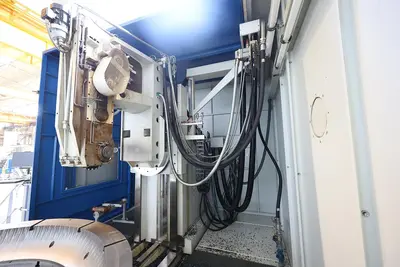

IFK2 Internal Milling Head
Milling Arbor with Spacers

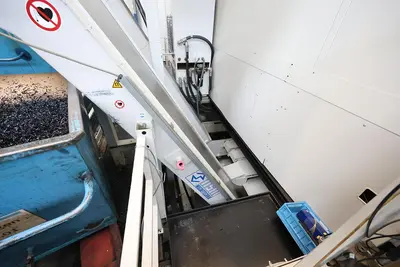

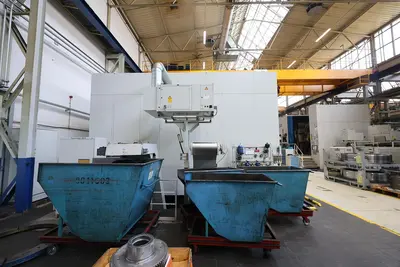

Chip Conveyor
Oil Mist Extraction
Technical Documentation
Slide Drives:
Feed & Rapid Traverse Speed:
Axial 4,000 mm/min
Radial 3,000 mm/min
Tangential 3,000 mm/min
Specs
Manufacturer: Gleason Pfauter
Model: P 2400/2800
Year: 2007
Condition: Used
Stock Number: 5654240
Workpiece diameter nominal: 2,400 mm
Max workpiece diameter: 2,800 mm
Max module: 30 mm
Dividing plate diameter: 2,200 mm

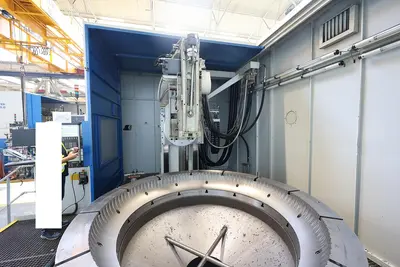

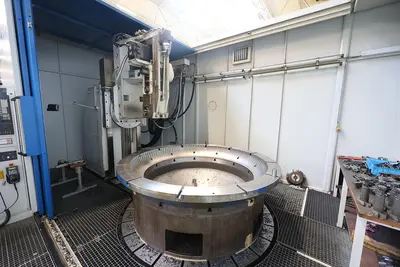

Table diameter: 2,500 mm
Table hole diameter / depth: 800 / 875 mm
Max table load: 40,000 kg
Table speed: 4.5 rpm
Max clamping length: 375 mm
Max clamping diameter: 350 mm
Max cutter diameter: 2,800 mm
Cutter arbor cone: HSK-B160
Milling head swivelling range: +30° / -45°
Distance cutter - workpiece: 615 / 1,600 mm
Machine weight: 57 ton
