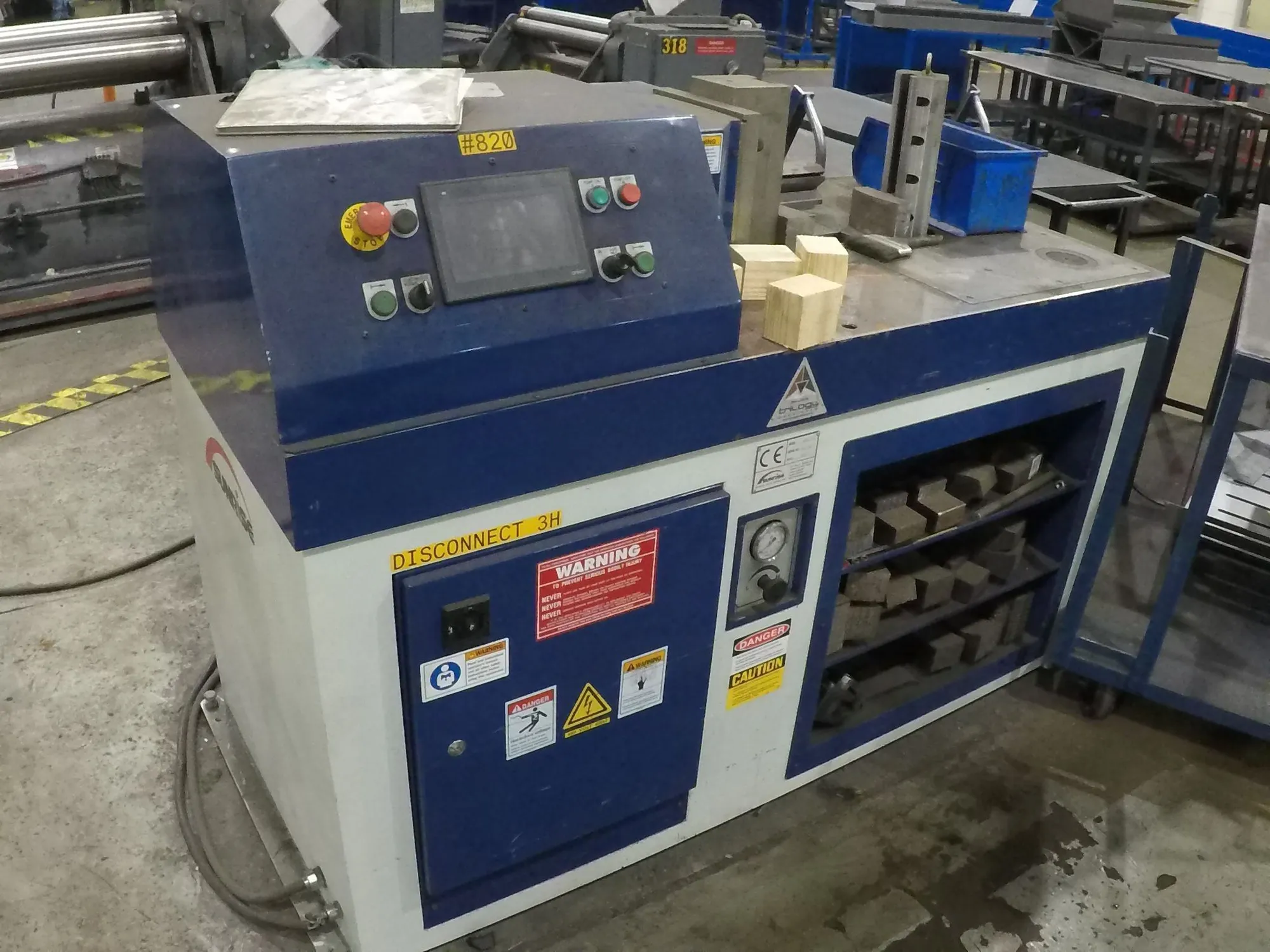

USED 2021 SUNRISE HBM 82 NC

82 Ton, Low Hour SUNRISE hydraulic bending machine, 82 tons, offer a wide range of tooling for different bending operations. Custom tooling is also available.

SUNRISE horizontal bending machines (HBM) feature:

Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
Programmable touch screen controller – Standard
Jog mode for tooling alignment and programming
Name-brand electric and hydraulic components ensure machine reliability
CNC machined one-piece solid table design
A wide range of standard and custom tooling is available
A manual back gauge is included for accurate positioning.

Both HBM models feature a standard programmable touch-screen controller with 50 program memory.

Sunrise HBM-82-NC Horizontal Bending Machine (2021)

82 Ton Ram
14″ Adjustable Stroke
Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
Touch-Screen Controller with 50 Program Memory – 10 Bends per Program
Two-hand Control or Locked Foot-Pedal
Machined One-Piece Top Design – Cylinder Mounted on Top
Multiple Machined Holes for Additional Tooling

Machine weight:         2080 kg
Backgauge weight:      170 kg
Machine length:         1780 mm
Machine width:          800 mm
Machine height:         1240.5 mm
Backgauge length:       1331 mm
Backgauge height:       930 mm

Includes 3″ Single-Vee Die and Bending Punch
