| Swing | 33.27" | 845.06 mm |
| Machining Length | 80" | 2,032 mm |
| # Axis | 2 | 2 |
| Chuck Size | 20" | 508 mm |
| Bar Capacity | 7.24" | 183.9 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 23" | 584.2 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Matrix Nexus Control) | CNC (Mazatrol Matrix Nexus Control) |
| Dimensions | 264 x 104 x 84 | 264 x 104 x 84 |
| Weight | 23000 lbs | 23000 lbs |
Specifications (subject to buyer verification):
Swing: 33.27"
Center Distance: 80"
Turning Diameter: 23"
Chuck Size: 20" with 6.5” thru-hole
Bar Capacity with Air Chuck: 7.24"
Controlled Axis: 2
X-Axis Travel: 12.13"
Z-Axis Travel: 124.75"
Spindle Bore: 6.5"
Spindle Speeds: 2,000 RPM
Spindle Motor: 50 HP

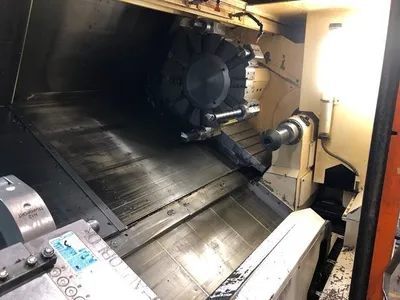

Turret Capacity: 12
Electrical Requirements: 208 Volt; 215A; 78 kVA
Machine Dimensions: 264" x 104" x 84"
Machine Weight: 23,000 lbs
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control

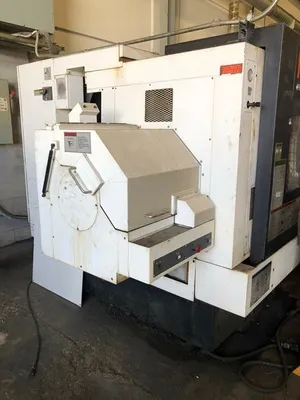

Chip Conveyor
Coolant Tank
Tool Presetter
Tailstock

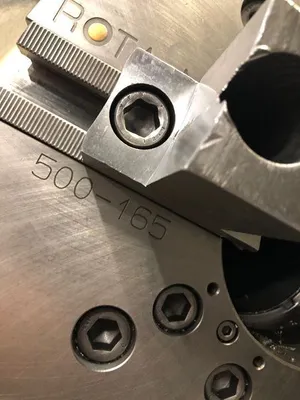

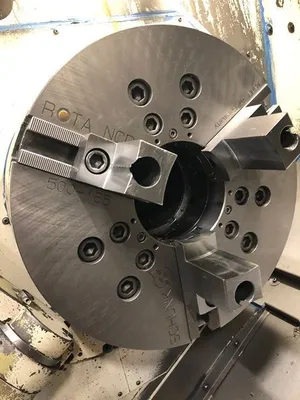

Schunk Rota NCD-500-165 Hydraulic Chuck

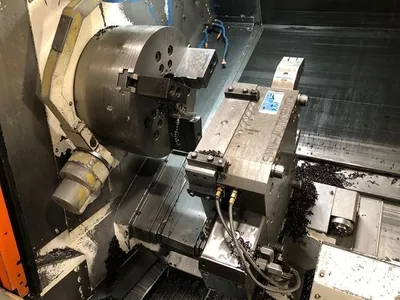

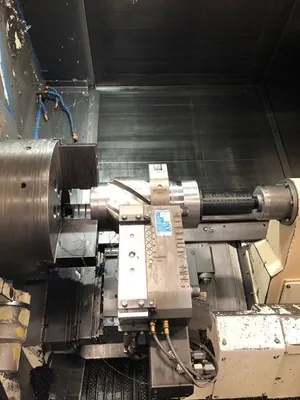

SMW Autoblok SLU-X-4-ZS Hydraulic Steady Rest, 30-245mm Capacity
Control Options List on request
