USED NIAGARA HBM-135-10-12
Overview
Description

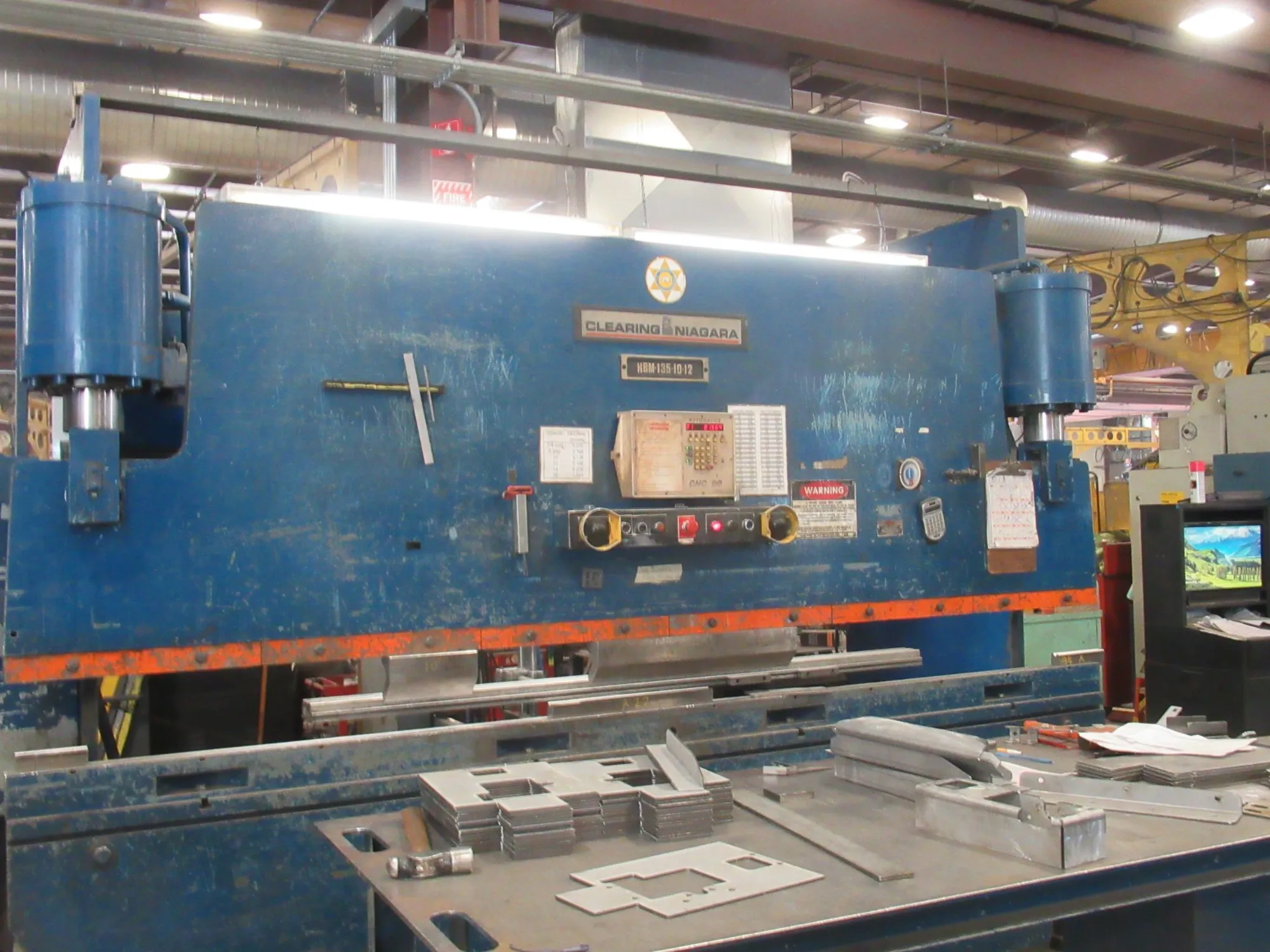

Niagara 135 Ton x 10’ Hydraulic Press Brake.
Model…… 135-10-12
Serial Number…… 54154
Capacity…… 135 tons
Length of Bed & Ram…… 10’
Distance Between Housings…… 8”-6”
Stroke…… 8”
Open Height…… 15”
Closed Height…… 7”
Ram Speed-Rapid Advance…… 127IPM
Ram Speed-Normal Press...... 64 IPM
Ram Speed-Auto Back Bend…… 20 IPM
Ram Speed-Rapid Return…… 127 IPM
AUTOMEC 99 CNC Back Gauge
Floor to Bed 33-1/2” FLOOR STANDING
Electrical Controls…… Inch-Single-Hand-Foot
Bed & Ram Machined For Angles
Hydraulic System With 20HP Motor
Price......On Request "As Is, Where Is" FOB Loaded on Truck Holland, OH Warehouse
Specifications
| Tonnage | 135 T | 122.47 t |
|---|---|---|
| Overall Length | 144" | 3.7 m |
| Between Housings | 126" | 3.2 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (Automec 99 CNC) | CNC (Automec 99 CNC) |
Niagara 135 Ton x 10’ Hydraulic Press Brake.
Model…… 135-10-12
Serial Number…… 54154
Capacity…… 135 tons
Length of Bed & Ram…… 10’
Distance Between Housings…… 8”-6”
Stroke…… 8”
Open Height…… 15”
Closed Height…… 7”
Ram Speed-Rapid Advance…… 127IPM
Ram Speed-Normal Press...... 64 IPM
Ram Speed-Auto Back Bend…… 20 IPM
Ram Speed-Rapid Return…… 127 IPM
AUTOMEC 99 CNC Back Gauge
Floor to Bed 33-1/2” FLOOR STANDING
Electrical Controls…… Inch-Single-Hand-Foot
Bed & Ram Machined For Angles
Hydraulic System With 20HP Motor
Price......On Request "As Is, Where Is" FOB Loaded on Truck Holland, OH Warehouse
