| Swing | 26.77" | 679.96 mm |
| Machining Length | 24" | 609.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,300 RPM | 3,300 RPM |
| Turning Dia | 16.54" | 420.12 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
| Dimensions | 136 x 84 x 84 | 136 x 84 x 84 |
| Weight | 13400 | 13400 |
Specifications (subject to buyer verification):
Controlled Axis: 2
Swing: 26.77"
Turning Diameter: 16.54"
Center Distance: 24"
Chuck Size: 12"
Bar Capacity: 4"
X-Axis Travel: 10.13"
Z-Axis Travel: 25.5"
Spindle Speeds: 3,300 RPM
Spindle Motor: 40 HP

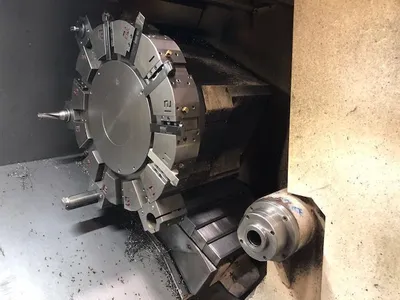

Turret Capacity: 12
Electrical Requirements: 208 Volt; 138A; 50 KVA
Machine Dimensions: 136" x 84" x 84"
Machine Weight: 13,400 lbs
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control

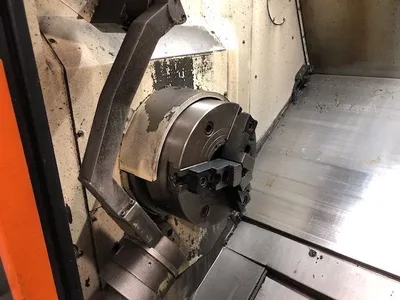

12" Kitagawa Hydraulic Chuck
Tailstock
Tool Presetter
Chip Conveyor
Coolant Tank
Control Options List on request
