| X | 41.34" | 1,050 mm |
| Y | 20.08" | 510.03 mm |
| Z | 20.08" | 510.03 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT40 | CAT40 |
| Table-W | 21.65" | 549.91 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Matrix Nexus) | CNC (Mazatrol Matrix Nexus) |
| Dimensions | 113" x 111" x 112" | 113" x 111" x 112" |
| Weight | 15,180 lbs | 15,180 lbs |
Specifications (subject to buyer verification):
Controlled axis: 4
X-axis travel: 41.3”
Y-axis travel: 20.08”
Z-axis travel: 20.08”
Min/max distance spindle nose to table: 5.9” – 25.98”
Table size: 51.1” x 21.6”
Spindle taper: CAT-40
Spindle speeds: 12,000 RPM
Spindle motor: 25 HP
ATC capacity: 30
Maximum tool weight: 17.8 lbs
Electrical requirements: 208 Volt; 83A; 30 KVA
Machine dimensions: 113" x 111" x 112"
Machine weight: 15,180 lbs
Equipped With (subject to buyer verification):

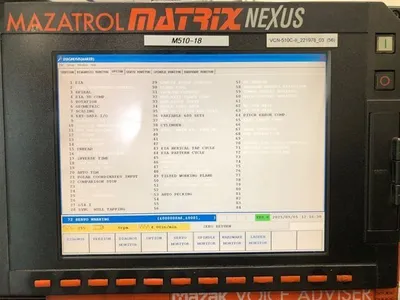

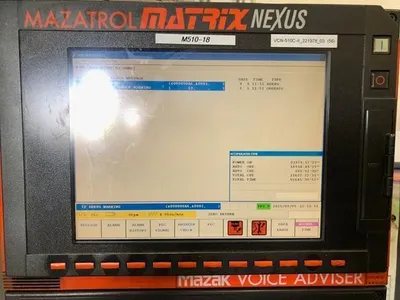

Mazatrol Matrix Nexus Control

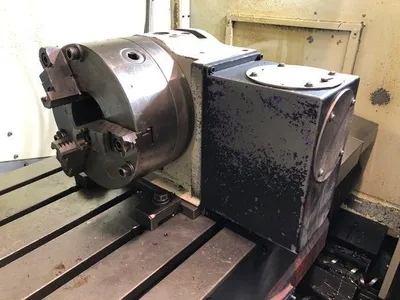

10” 4th axis rotary table
High pressure coolant thru spindle
Chip Conveyor
Coolant Tank
Tool Setter
Workpiece probe
Mist Fit MF-1050 Coolant Mist Extractor
Control Options List on request
