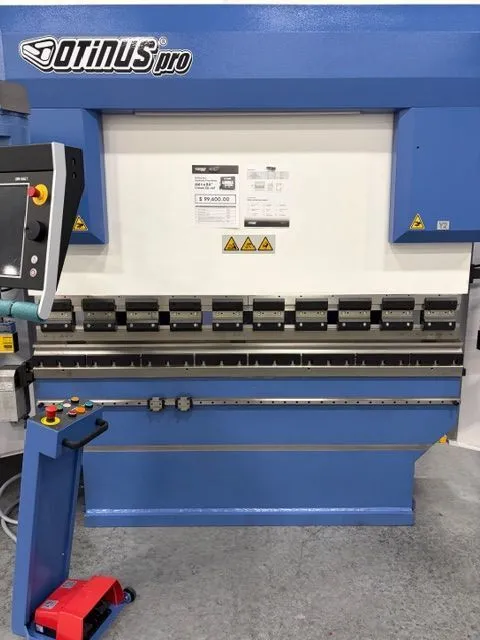

NEW OTINUS HYDRAULIC PRESS BRAKE 66t X84"

NEW OTINUS Hyd.Press Brake Model 66 Ton x 84" Delem DA-66T & Control, In Stock Illinois
Price includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months

Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.

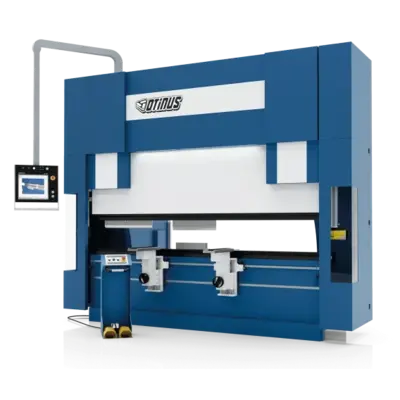

The OTINUS PRO Hydraulic Press Brake, model PBO-2106-PRO, offers a robust 66-ton capacity for precise sheet metal bending. With a motor output of 5.5 kW and a 37-gallon oil tank, this new equipment ensures effective and reliable performance. The press brake features an approach speed of 150 mm/s, a working speed of 10 mm/s, and a return speed of 130 mm/s, supporting a maximum working length of 83 inches and inside frame width of 63 inches.

Designed for flexibility and stability, it includes a 19-inch daylight opening, an 8-inch stroke, and a 16-inch throat gap, ideal for handling larger pieces. The distance between side frames is 6 feet, with each side frame measuring 62 inches, and a bed height of 35 inches. Weighing around 11,907 pounds, the press brake is suitable for heavy-duty industrial applications.

Equipped with a Delem DA-66T controller, the system controls 8 axes automatically, stores up to 500 programs, and features a 17" TFT touch screen. It supports 2D and 3D programming modes, enables program
WHY OTINUS?

OUR TURN-KEY SOLUTION FOR YOUR BUSINESS
We offer comprehensive turn-key solutions that enable a quick and hassle-free implementation of our machines into your production process. Our services include delivery, installation, personnel training, and full technical support. We provide ready-to-use solutions that allow immediate start-up of production, eliminating the need for external providers and saving your time and money. With our turn-key offer, we provide full know-how and support to help your business grow without obstacles.

THE DIFFERENCE IS OUR OUR ASSETS

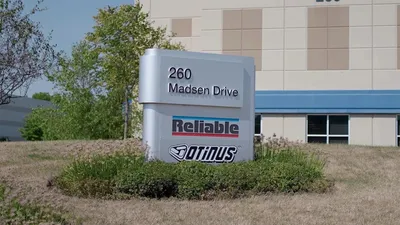

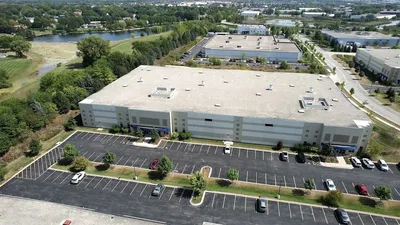

US BRANCH
Our United States facility is equipped with state-of-the-art technology for sheet metalworking and manufacturing. This branch specializes in providing advanced solutions tailored to the needs of the North American market. With an experienced team and a commitment to innovation, we deliver high-quality machines that meet the highest industry standards.

POLISH HEADQUARTERS
Located in Poland, our European branch combines cutting-edge engineering with decades of expertise in the metalworking industry. This facility focuses on serving the European market, offering customized solutions and efficient production processes. We pride ourselves on delivering excellent service and maintaining strong relationships with our customers across Europe.

Why choose our turn-key solutions?
By choosing our turn-key solutions, you can rest assured that your company is in good hands, and the implementation of new technologies is smooth and stress-free.
Save time and money: We eliminate the need for external providers, allowing for immediate production start-up.
Hassle-free implementation: With our complete installation and training, you can be confident that every aspect is under control.
Full technical support: We are available at every stage to provide technical and service support.

Feature Specification
Tonnage Capacity 66 tons (600 kN)
Maximum Working Length 83 inches (2100 mm)
Distance Between Frames 63 inches (6 feet)
Stroke 8 inches
Daylight Opening 19 inches
Throat Gap 16 inches
Approach Speed 150 mm/s
Working Speed 10 mm/s
Return Speed 130 mm/s
Motor Output 5.5 kW (7 HP)
Approximate Weight 11,907 lbs (5,400 kg)

Controller and Features
The press brake utilizes an advanced Delem DA-66T CNC controller,
which offers comprehensive control and programming capabilities:
Automatic control of up to 8 axes.
17-inch TFT touch screen interface.
2D and 3D programming modes and offline software capability.
Storage for up to 500 programs and 30 upper/lower dies.
Integrated crowning control and collision prevention sensors.

Standard Equipment

Controller: Delem DA-66T
Y1+Y2+X+R axes (servo drives)
Automatic crowning
Amada-Promecam rapid clamp system
Movements in all axes controlled by servomotors
User-friendly interface
Front supports for sheet handling
Oil cooling system (OCS)
Hydraulic system: HAWE (Germany)
2 backgauge fingers
2 front supports on linear guides
AKAS II light curtains
