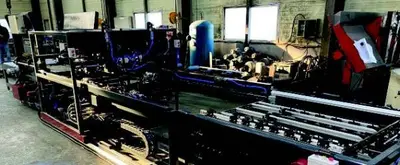

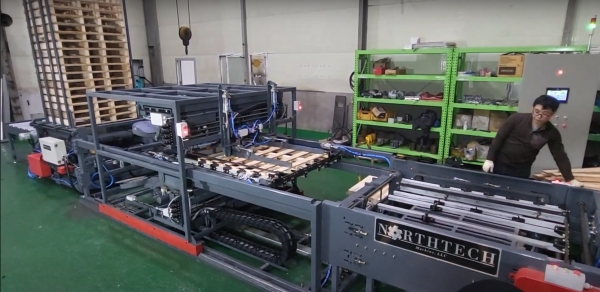

NEW NORTHTECH NT-PAS4852-8-2TBL

Pallet Assembly System with a two table quick loading carriage system,
independently traveling top & bottom guns, stacker and (2) full stack
discharge conveyor
Over 800 pallets/8hr shift with 2 workers
30 minute changeovers when changing jigs, or under 5 minutes when
changing tables

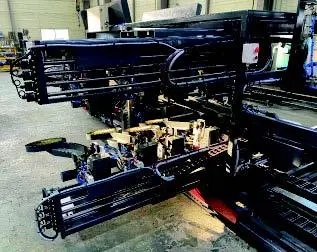

Top and bottom nail gun carriages pull out the side for easy access
Pallet working size: (W) 32" - 48", (L) 32" - 52", (H) 3" - 6"
3 and 4 runner capable
Each nail gun automatically adjusts for up to 3/8” deck board variation
9 second nailing cycle time/pallet with overlapping build time means
operators are not waiting during the nailing cycle
(4) Top and (4) Bottom CN70 MAX nail guns (included)
Usable nail size (Ø x L): 2.3mm-2.8mm (13ga-11ga) x 45mm-70mm (1.8"-2.7”)

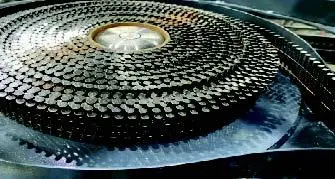

24,000 coil nail capacity
Infinite deckboard and runner placement
Single operational control station
20 pallet maximum stack height (2,200lb)
(5) Emergency stop buttons for operator safety
Standard Northtech 1 year parts warranty
Customer is responsible for site ready location with all required utility connections and permits.
Customer specific nail guns can be used (additional costs may apply)
Electric: 208V/230V/460V 3PH 60HZ (customers choice)
Air pressure: 8-10MPA 1.5" Ø airline) @ 90 PSI, 500 CFM, 20HP compressor recommended
Machine size (LxWxH): 374" x 79" x 59", estimated 8,000lbs total weight
Estimated 4-5 month lead time from time of order
