| size | 300 Ton | 300 Ton |
| Tonnage | 300 T | 272.156 t |
| Stroke | 8" | 203.2 mm |
| Shut Height | 23.5" | 596.9 mm |
| SPM | 40 strokes/min. | 40 strokes/min. |
| Vari Speed (Yes/No) | Yes | Yes |
| Bed W | 48" | 1,219.2 mm |
| Bed L | 72" | 1,828.8 mm |
| Crank (Single/Double) | Double | Double |
| Air Clutch (Yes/No) | Yes | Yes |

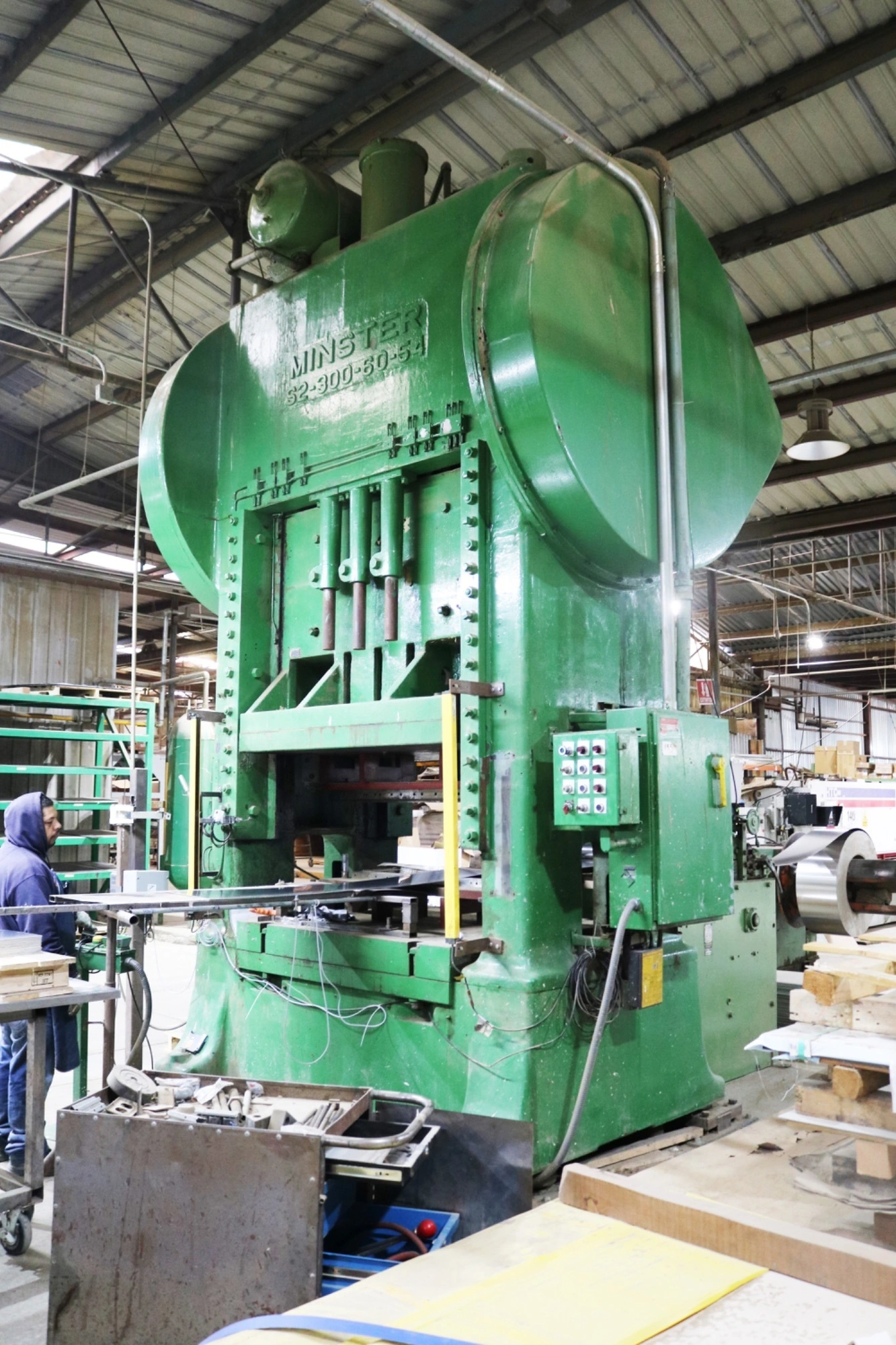

MINSTER E2-300 STRAIGHT SIDE PRESS
CAPACITY 300 TON
STROKE 8″
MAX. SHUT HT. TO BED 23.5″ SDAU
BED AREA 72″ X 48″ (RL X FB)
SPEED 40 SPM
RAM AREA 72″ X 48″ (RL X FB) T-SLOTTED
RAM ADJUSTMENT 10″ MOTORIZED ADJUSTMENT
BOLSTER SIZE 8-1/2″ X 72″ RL X 48″ FB T-SLOTTED
WINDOW SIZE 21″ WIDE X 7-1/2″ HIGH
CLUTCH REBUILT – MINSTER AIR CLUTCH AND BRAKE
PRESS CONTROLS UPDATED ROCKFORD CONTROLS
ELECTRICS 25 HP 550V GE INDUCTION MOTOR | 26 AMPS | 1125 SPEED
APPROX. DIMENSIONS 12′ X 7′ (RL X FB) X 15′ HIGH
APPROX. WEIGHT 80,000 LBS.
EQUIPPED WITH FLOOR STANDING
