USED CLAUSING-KONDIA VERTICAL MILLING MACHINE : FV-300, S/N: AA-924
Overview
Description

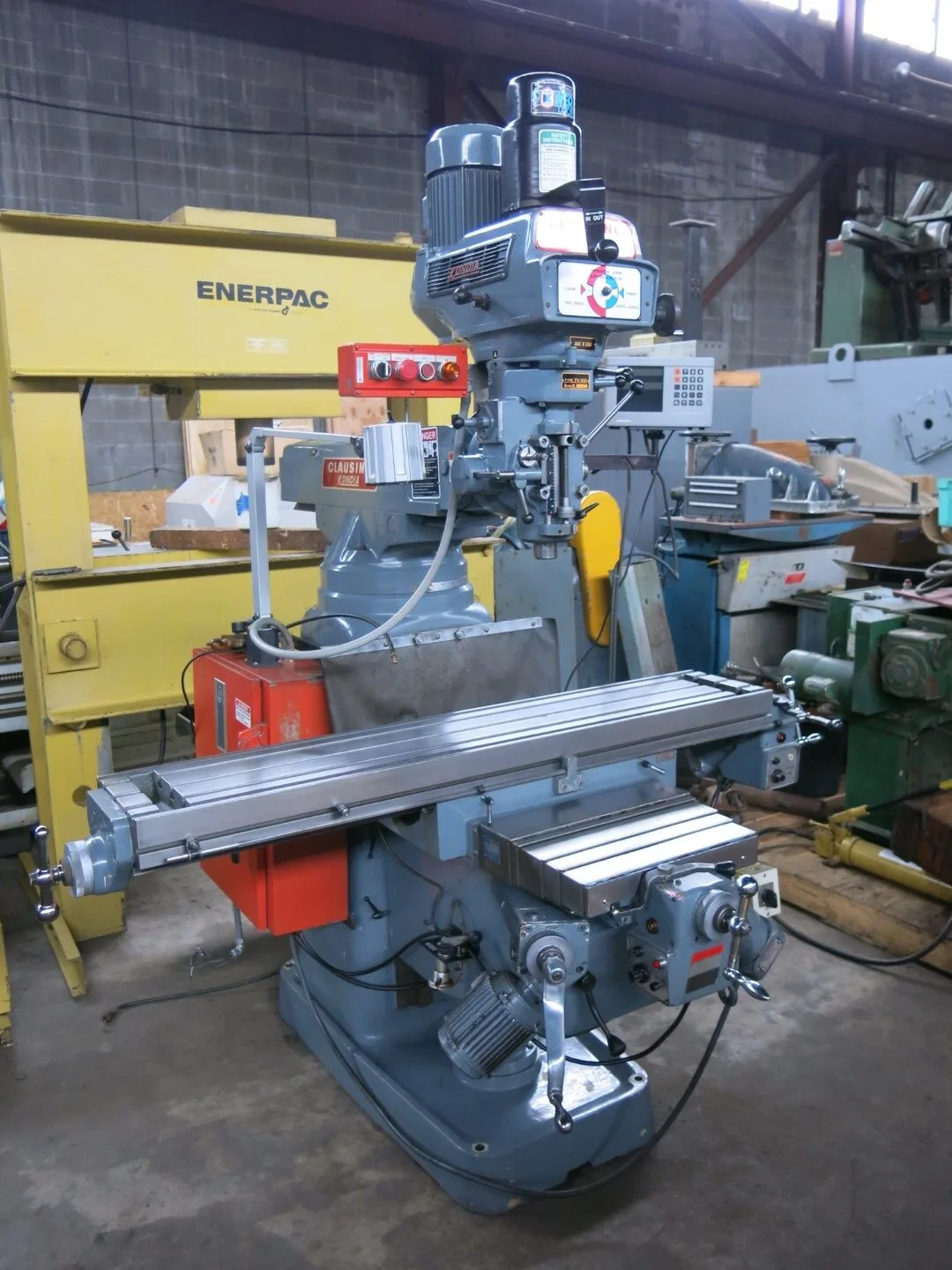

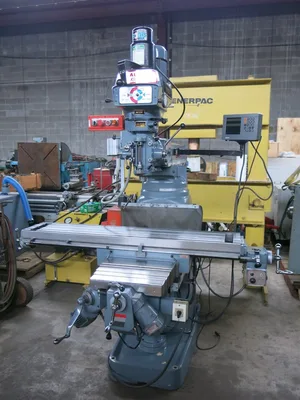

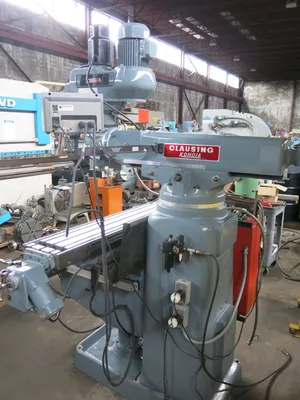

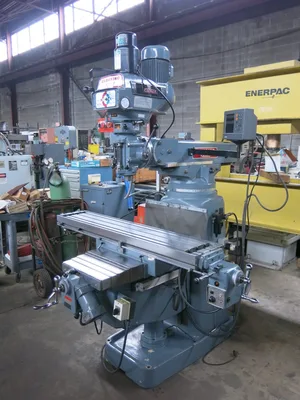

CLAUSING-KONDIA VERTICAL MILLING MACHINE

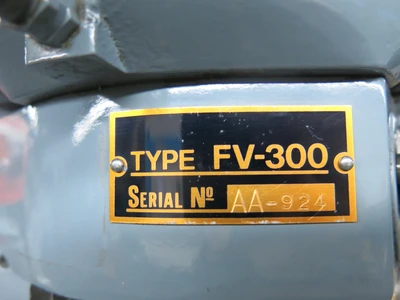

MODEL: FV-300, S/N: AA-924
Specifications

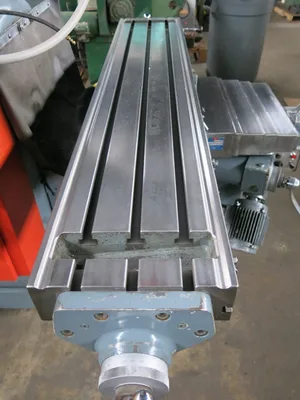

TABLE SIZE ………………………. 11″ X 58″
NUMBER OF T-SLOTS ………………… 3
LONGITUDINAL TABLE TRAVEL …………. 34″
SADDLE TRAVEL ……………………. 15″
QUILL TRAVEL …………………….. 5″
KNEE TRAVEL ……………………… 15″
RAM TRAVEL ………………………. 23″
TABLE LOAD CAPACITY ………………. 1,550 Lbs
MIN/MAX DISTANCE, SPINDLE NOSE TO TABLE 6-5/8″ / 29-11/16″
MIN/MAX DISTANCE, CENTERLINE OF SPINDLE
TP FACE OF COLUMN …………….. 0″ / 17″
HEAD TILT, LEFT & RIGHT …………… 90 DEGREES
HEAD TILT, FRONT & REAR …………… 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ……. 60 – 4,000 RPM
SPINDLE TAPER ……………………. R8
QUILL FEEDS …………………. 0.0015″, 0.003″, 0.0047″
APPROXIMATE WEIGHT ……………….. 5,000 LBS
Equipped With
Heidenhain 2 AXIS DIGITAL READOUT FOR LONGITUDINAL & CROSS TABLE

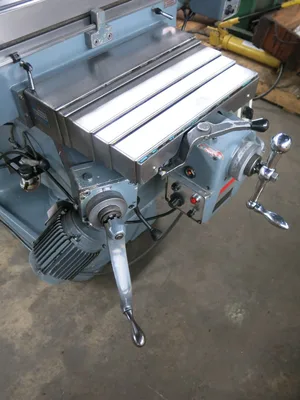

POWER FEEDS FOR LONITUDINAL TABLE TRAVEL, CROSS FEED, & KNEE
KURT POWER DRAWBAR
HARDENED & GROUND BED WAYS
ONE-SHOT LUBRICATION SYSTEM

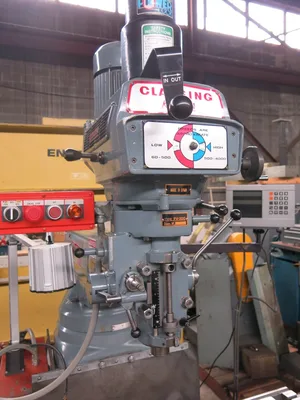

4 HORSE POWER VARIABLE SPEED MILLING HEAD
