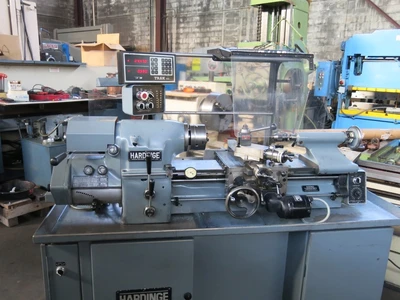

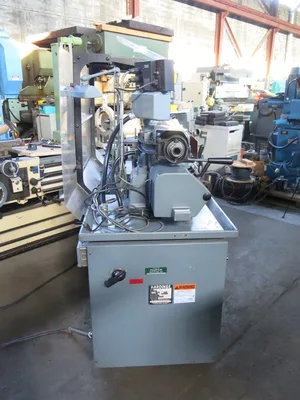

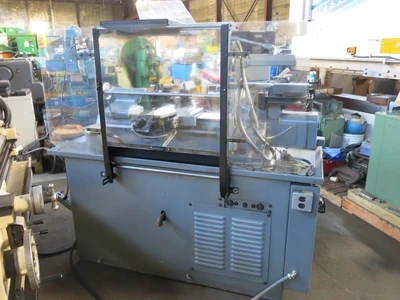

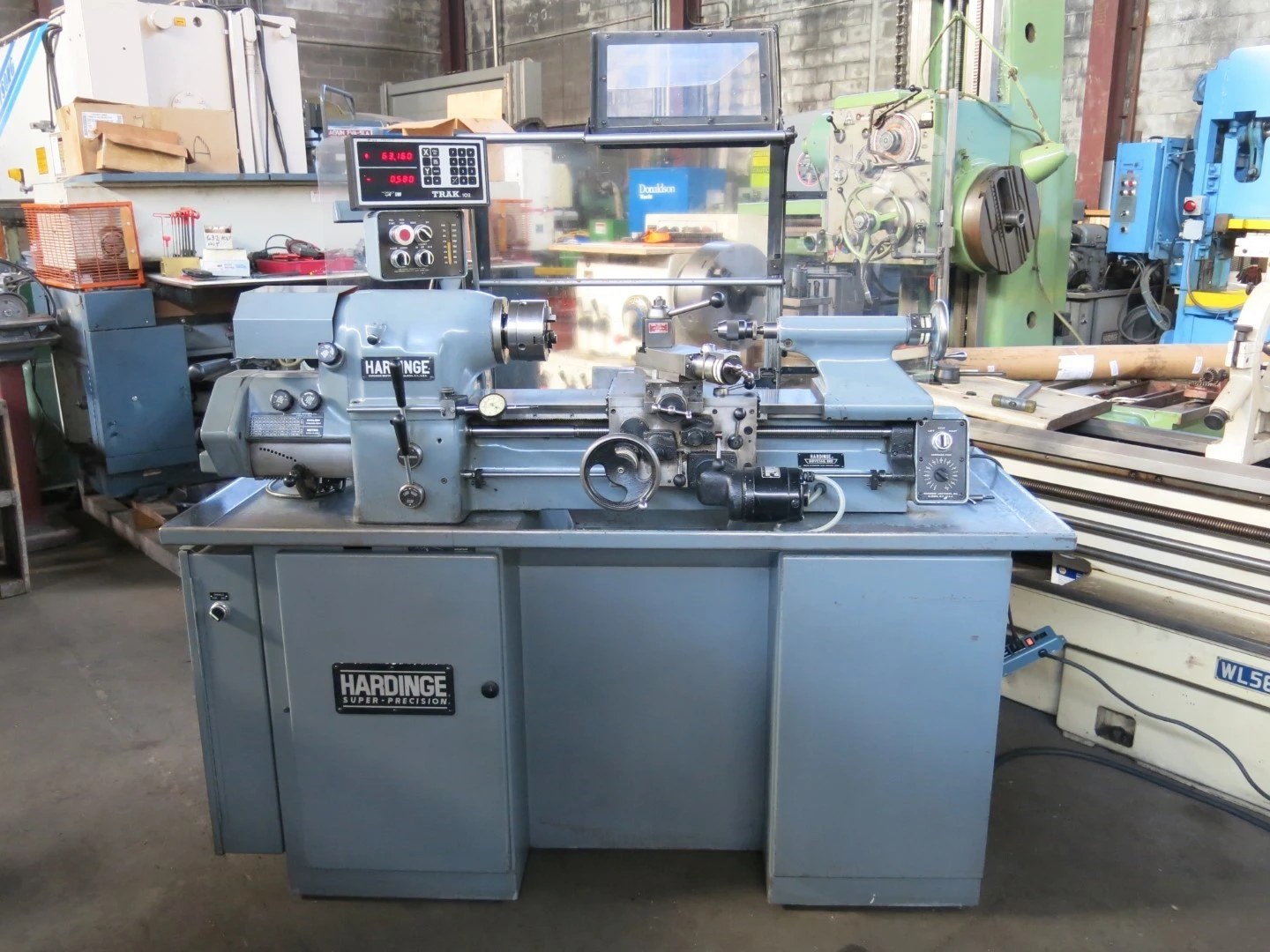

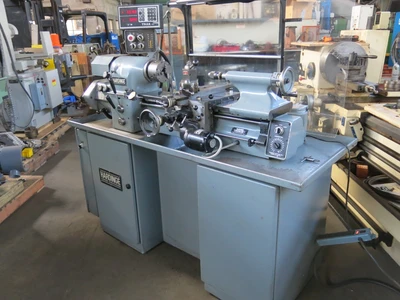

Hardinge HLV-H Precision Toolroom Lathe IN/MM with DRO

Hardinge HLV-H Precision Toolroom Lathe IN/MM with DRO
Serial#

SPINDLE CONSTRUCTION …………….. HARDINGE BALL BEARING
SPINDLE NOSE – Hardinge Taper Lock
SPINDLE CAPACITY:
    WITH ROUND TYPE 5C COLLETS ……. 1-1/16″
WITH STEP CHUCKS ………………… 1-1/16″ TO 6″
WITH JAW CHUCKS …………………. 5″
WITH EXPANDING COLLETS …………… 3″
VARIABLE SPINDLE SPEEDS ………….. 125 – 3,000 R.P.M.
HOLE THROUGH SPINDLE …………….. 1-1/4″
SWING OVER BED ………………….. 11″
SWING OVER CARRIAGE ……………… 9″
SWING OVER CROSS SLIDE …………… 6″
DISTANCE BETWEEN CENTERS …………. 18″
COMPOUND SLIDE TRAVEL ……………. 3″
CARRIAGE POWER FEED RANGE ………… 5/16 – 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ……… 3/16 – 4 I.P.M.

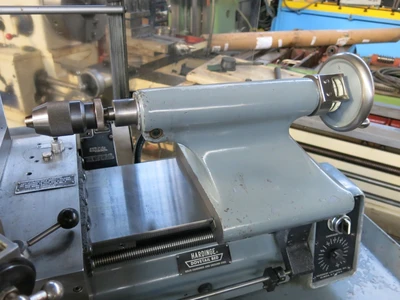

TAILSTOCK SPINDLE DIAMETER ……….. 1-3/8″
TAILSTOCK SPINDLE TAPER ………….. #2 MT

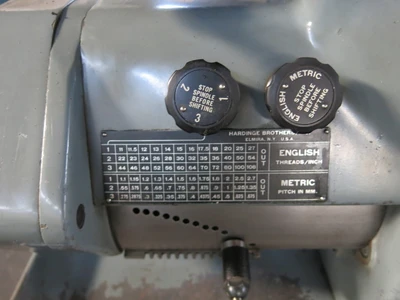

INCH THREADING RANGE IN GEARBOX (36) . 11 – 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 – 2.7 MM
APPROXIMATE WEIGHT ………………. 1,700 LBS.

-3 Jaw Chuck
-4 Jaw Chuck
-Misc Collets

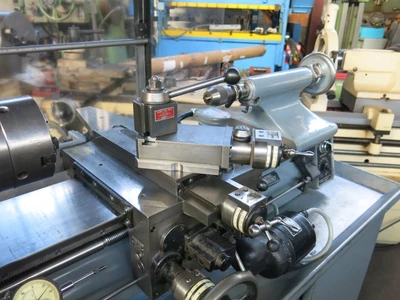

-Aloris AXA Toolpost & Holders

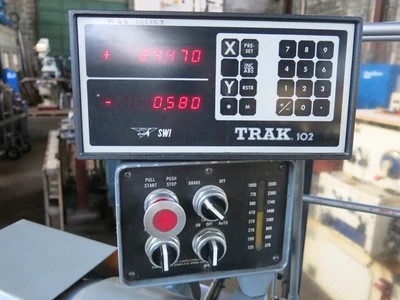

-Trak DRO
***WE ORDERED NEW WAY WIPERS AND WILL INSTALL AS SOON AS THEY COME IN**
