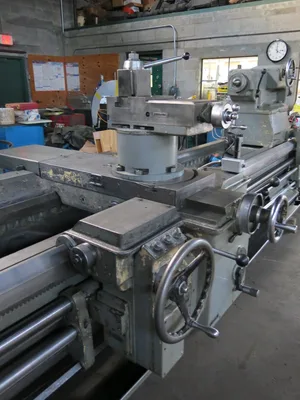

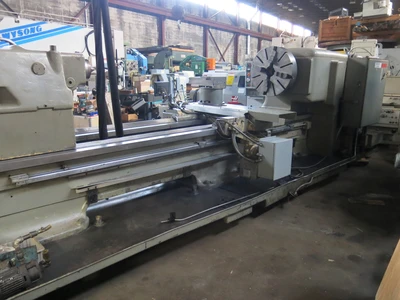

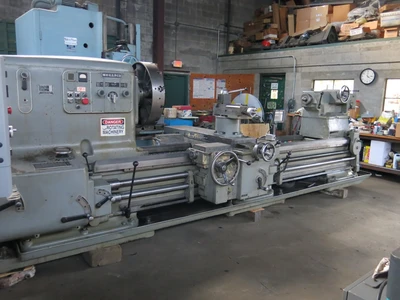

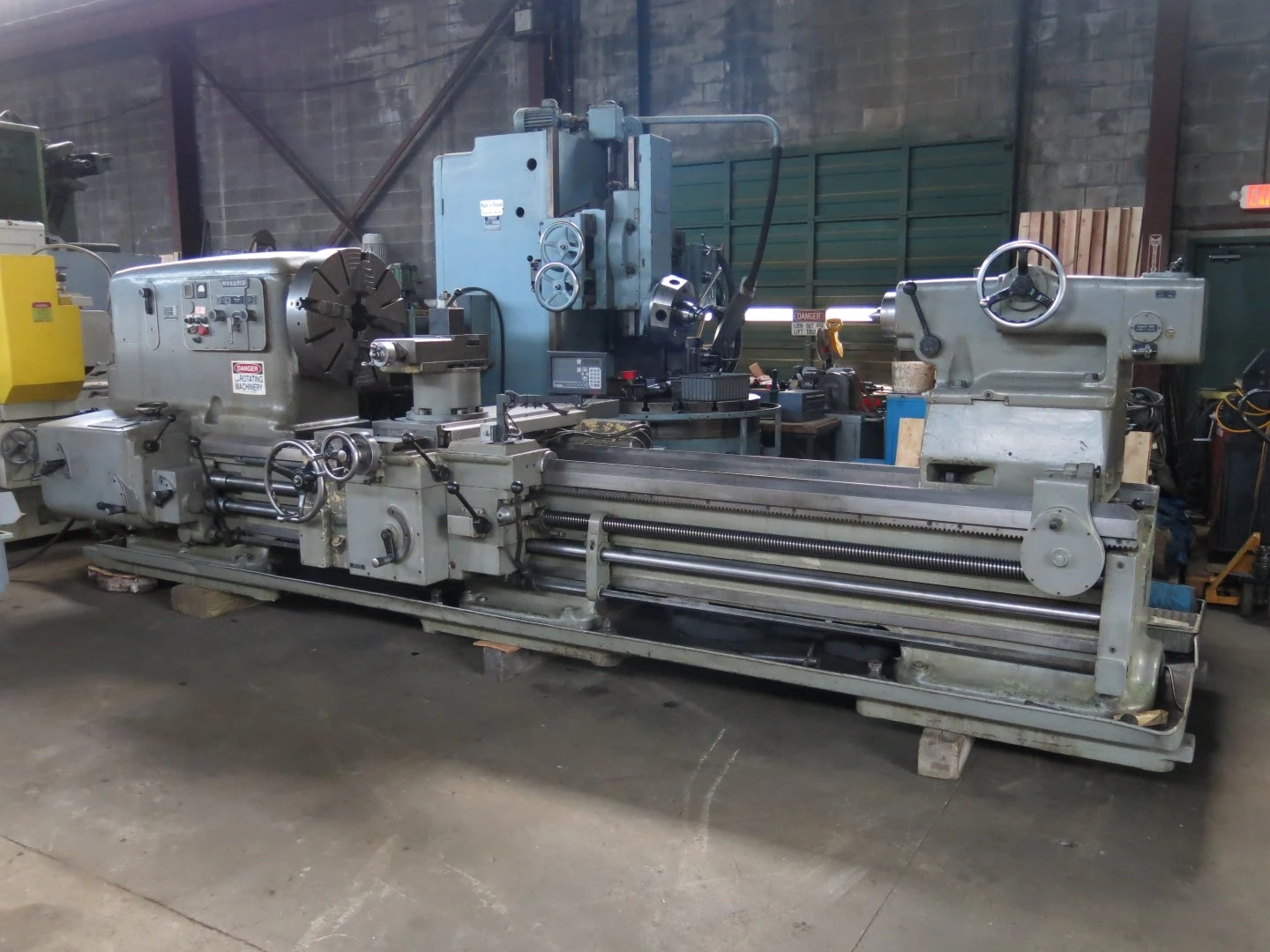

Monarch Heavy Duty Dyna-Shift 48″ x 108″ Lathe
Overview
MONARCH HEAVY DUTY DYNA-SHIFT LATHE 48″ X 108″
Serial # 42218 Model: Series 90
Catalogue Size 2502
New 1957
Swing Over Bed Ways: 48″
Swing Over Cross Slide: 36″
Spindle Hole Size: 4-1/16″
Spindle Type: D1-11
Spindle Taper: 7 MT
(36) Spindle Speeds: 6 to 750 RPM
(48) English Threads: 1/2 to 28 TPI
(48) Carriage Feeds: .0035 to .196 IPR
Bed Width: 31-1/2″
Saddle Width: 47″

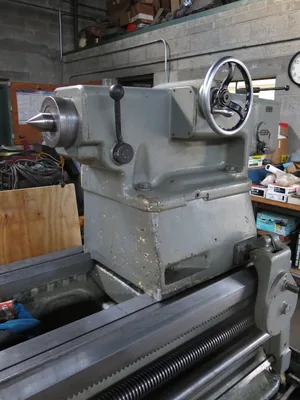

Tailstock Diameter: 7″
Tailstock Taper: #5 MT
Distance Between Centers: 108″
Equipped With
Newall 2-Axis Digital Readout-Carriage Cross-Feed scale is good. The Bed scale is missing.

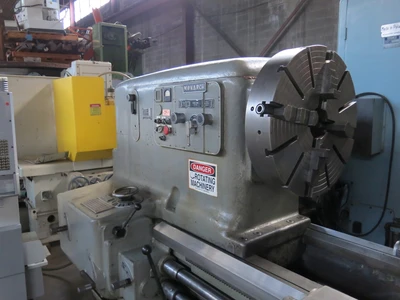

20″ 3-Jaw Chuck and 28″ 4-Jaw Chuck
Hydraulic Shifting of Headstock Speeds
Rapid Traverse of Carriage Left & Right
Quick Change Feed & Treading Gear Box
Hardened and Ground Bed Ways
Thread Chasing Dial with Lead Screw and Half Nut

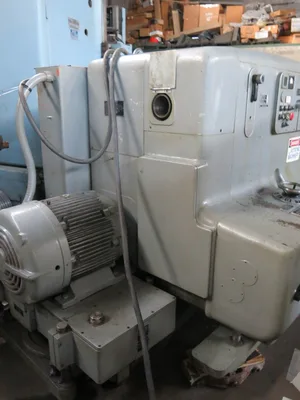

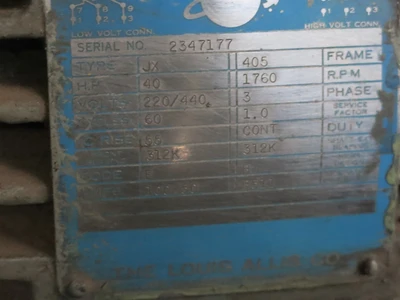

40 HP, 1760 RPM, 220/460 Volt, 100/50 Amp Main Motor
Overall Size: Machine 21′ Long x 85″ Wide x 69″ High x 33,000 Lbs.
