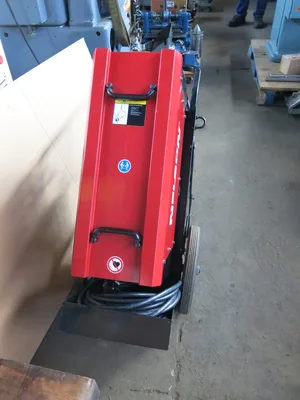

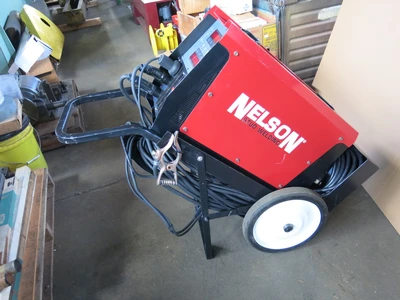

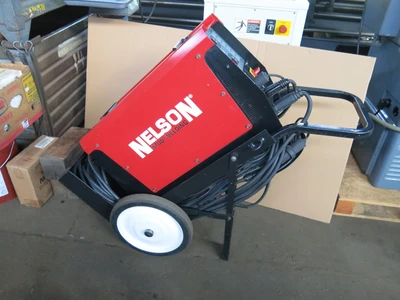

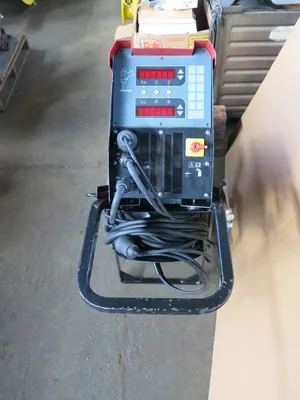

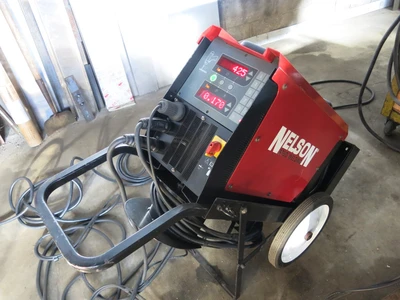

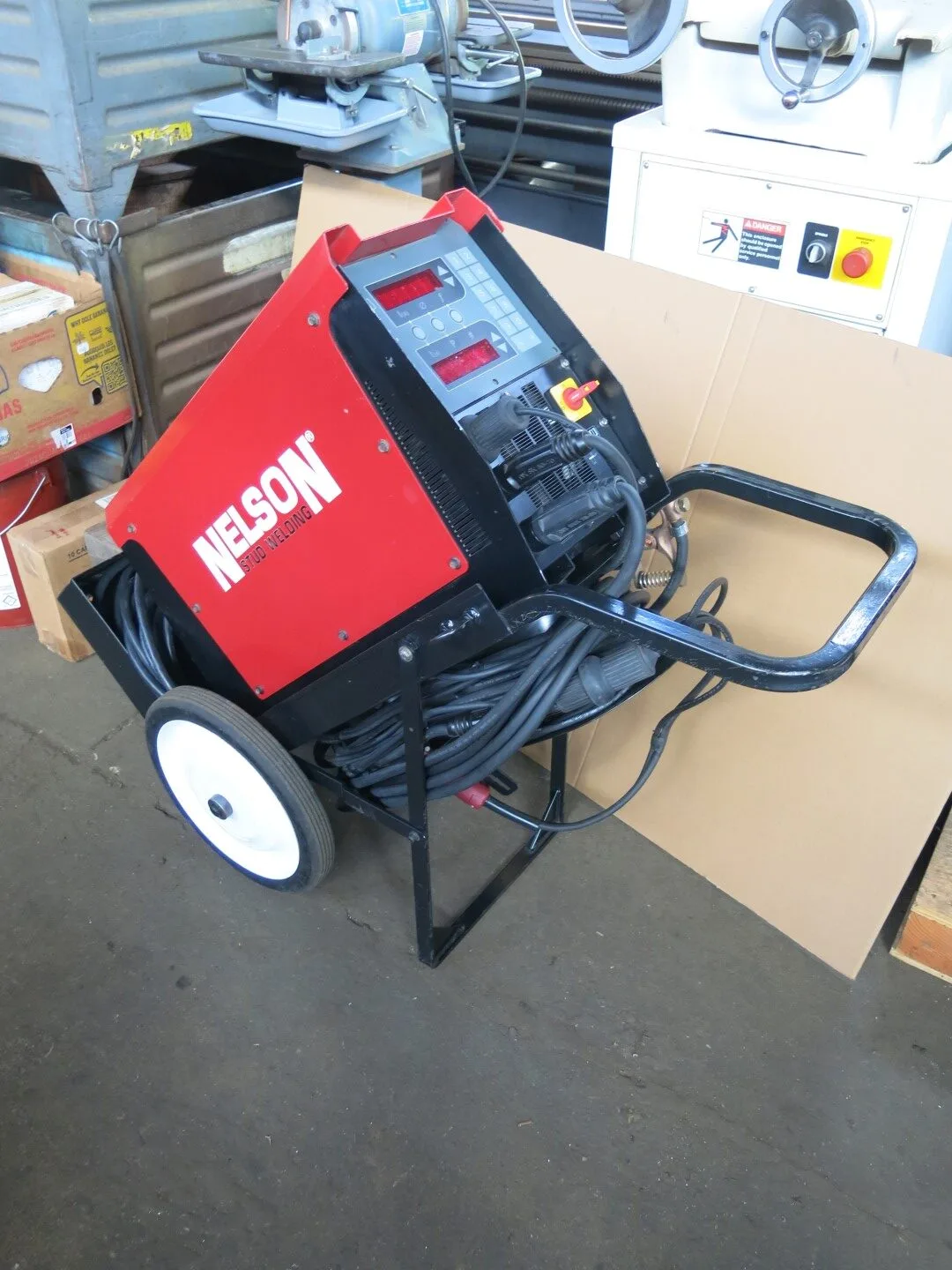

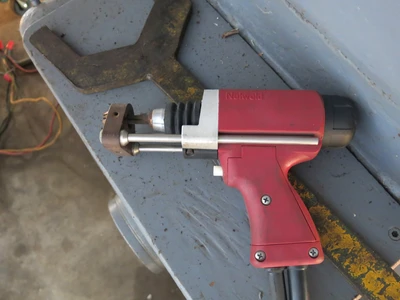

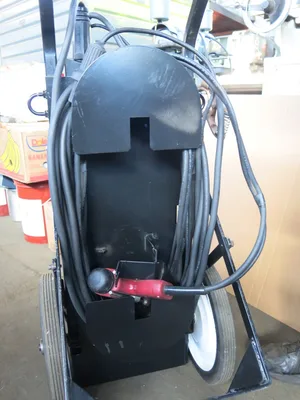

Nelson 1500i Inverter Stud Welder 3/4″ Capacity

Nelson 1500i Inverter Stud Welder

Stud Diam. Range

3/16″ (5mm) – 3/4″ (19mm)

Weld Rate

3/16″ (5mm) 30 per minute
1/4″ (6mm) 30 per minute
5/16″ (8mm) 30 per minute
3/8″ (10 mm) 29 per minute
1/2″ (13mm) 19 per minute
5/8″ (16mm) 8 per minute
3/4″ (19mm) 4 per minute

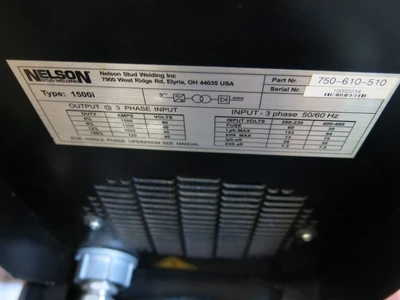

Input
3 Phase 208-240V, 50/60Hz @ 60A; 3 Phase 400-480V, 50/60Hz @ 30A; 1 Phase 200-220V, 50/60Hz @ 60A

Time Control
5 – 1000 ms

Current Control
50 A – 1500 A

Combo Cable
25 ft

Ground Cable
25 ft

Features

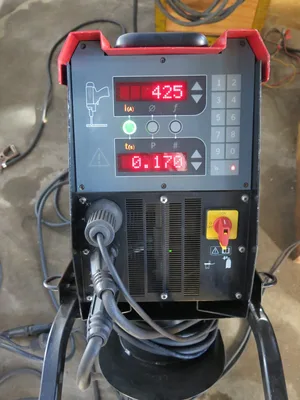

User-friendly control panel with 10 preset buttons and weld quality gauge
Precision control at 60,000 Hz ensure the most stable arc, accurate heat input and highest quality welding process
Built-in weld monitoring can detect bad welds
Built-in weld tool monitoring detects the actual plunge time and adaptively compensates for tool wear
Built-in cable monitoring detects wear and loose connections
Nelson’s pre-programmed Stud ExpertTM can automatically select the best settings for your stud diameter; or change the settings for your ideal usages
Programmable pulse waveform facilitates stud welding of aluminum & other special materials
Designed to save electricity, reduce cable wear, and maintain arc energy despite the condition of your weld tool

Dimensions
16-1/2″ (42 cm) H x 10-5/8″ (27 cm) W x 28″ (71 cm) D

Weight
79 lbs (36kg)
