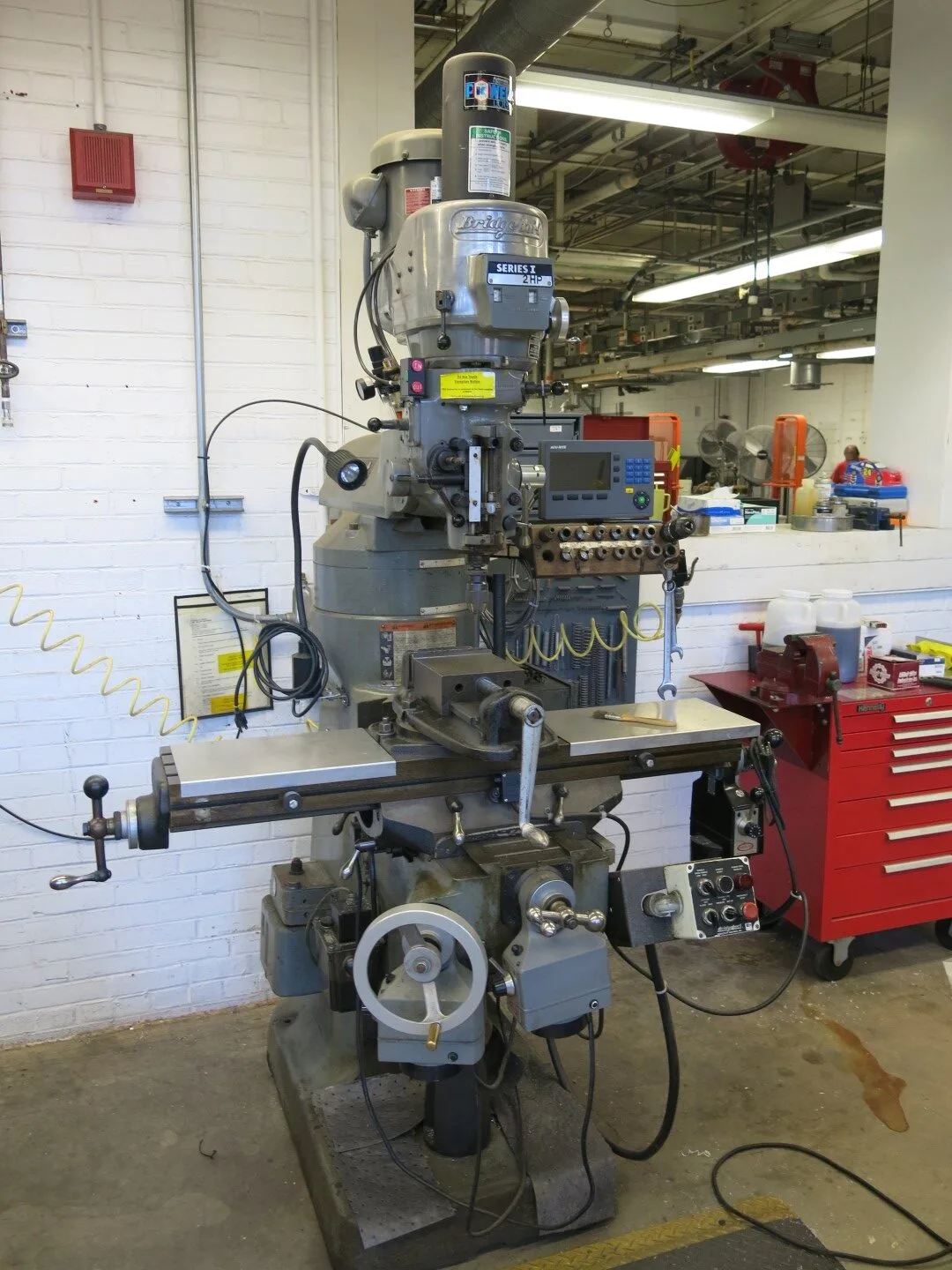

Bridgeport Series 1 2hp 9×48″ Milling Machine w/ DRO, X,Y, & Knee Feeds

Bridgeport Series 1 Vertical Milling Machine
Serial# BR-250101
New- 1987

TABLE SIZE ………………………… 9″ X 48″
NUMBER OF T-SLOTS ………………….. 3
LONGITUDINAL TABLE TRAVEL …………… 36″
CROSS TRAVEL ………………………. 12″
QUILL TRAVEL ………………………. 5″
KNEE TRAVEL ……………………….. 16″
RAM TRAVEL ………………………… 12″
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2″ / 2-1/2″
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
    TP FACE OF COLUMN ………………. 18-3/4″ / 6-3/4″
HEAD TILT, LEFT & RIGHT …………….. 90 DEGREES
HEAD TILT, FRONT & REAR …………….. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ……… 60-4,200 RPM
SPINDLE TAPER ……………………… R-8
MAX COLLET CAPACITY ………………… 3/4″
QUILL TRAVEL ………………………. 5″
QUILL FEEDS …………………… 0.0015″, 0.003″, 0.006″
APPROXIMATE WEIGHT …………………. 2,000 LBS

-Kurt Power Drawbar
-Servo Powerfeeds on X,Y, & Knee
-Bridgeport 4″ Riser Block
-Bridgeport 6″ Swivel Base Vise
-R8 Collets & Drill Chuck
-Bijur Mist Coolant

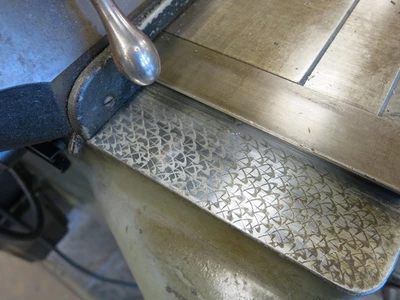

***ALL ORIGINAL PAINT- KNEE & TABLE ARE EXCELLENT.  MACHINE SAW LIGHT USE IN A R&D SHOP- WE DID NOT CLEAN IT FOR THE PICTURES BUT WE WILL CLEAN IT AND VIDEO WHEN THE RIGGERS BRING IT IN***
