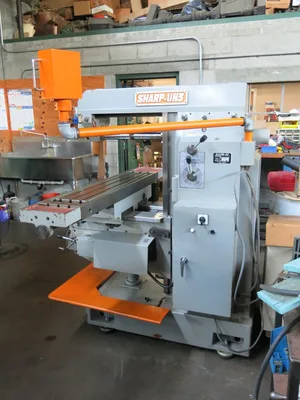

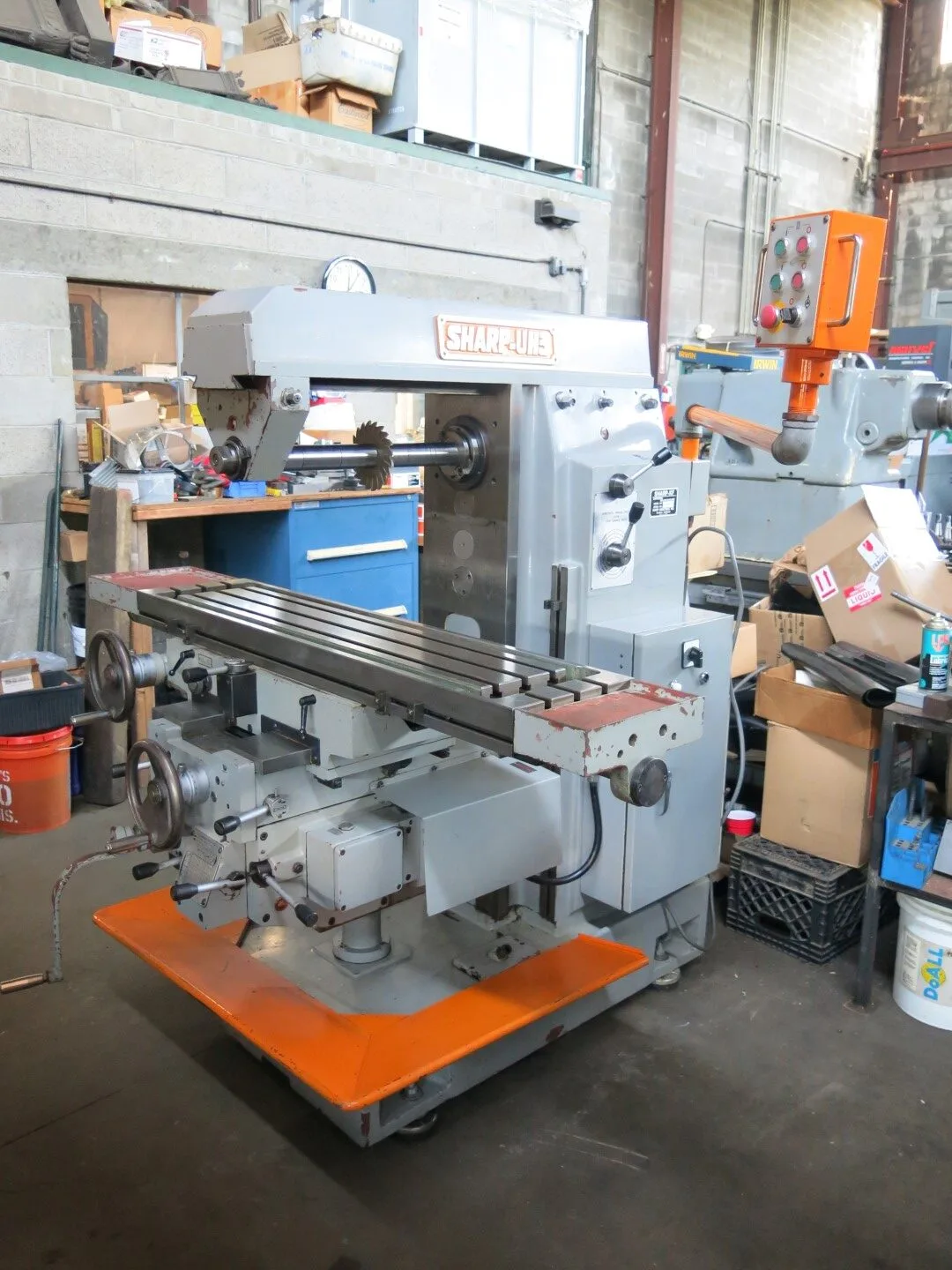

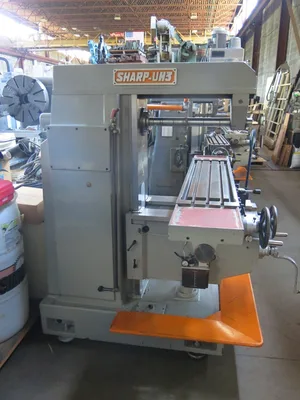

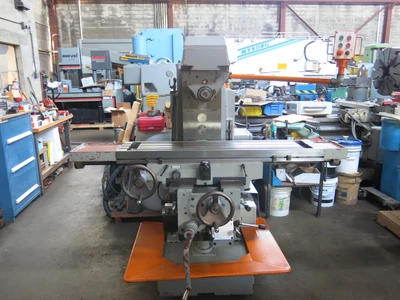

SHARP UH-3 HORIZONTAL MILLING MACHINE
Table Size (W x L/In.)
11.81 x 51.18
Spindle Taper
NMTB-50
Number of Spindle Speeds
12
Range of Spindle Speeds (RPM)
35 – 1,382
Maximum Table Longitudinal Travel (In.)
37-3/8
Number of Table Longitudinal Feeds
12
Range of Table Longitudinal Feed (IPM)
1/2 – 24-7/8
Table Longitudinal Rapid Traverse (IPM)
116-1/2
Maximum Table Cross Travel (In.)
14-13/16
Number of Table Cross Feeds
12
Range of Table Cross Feed (IPM)
1/2 – 24-7/8
Table Cross Rapid Traverse (IPM)
116-1/2
Maximum Knee Vertical Travel (In.)
18-1/2
Number of Knee Vertical Feeds
12
Range of Knee Vertical Feed (IPM)
1/4 – 12-7/16
Knee Vertical Rapid Traverse (IPM)
59-13/16
Distance Spindle Center to Table Surface (Max. | Min./In.)
18-1/2 | 0
Distance Spindle Center to Bottom of Over Arm (In.)
5-5/16

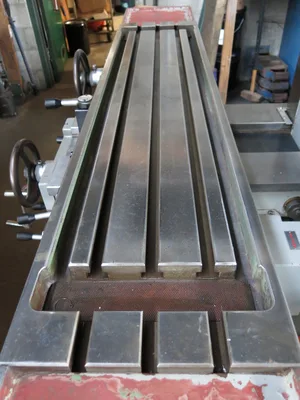

Table T-Slots (No. | W./In.)
3 | 5/8
Table Swivel Movement (Right or Left)
45°
Main Motor (HP)
7-1/2,
220V/440V/3 Phase/60 Hz.,
Prewired 220V
Floor Space Dimensions (W x D x H/In.)
117 x 69 x 67-5/16
Machine Weight (Lbs.)
5,170
***COMES WITH (2) ARBOR SUPPORTS BUT ONLY 1 IS IN THE PICTURES
***ALL ORIGINAL PAINT- SCHOOL MACHINE IN NICE CONDITION***
***VIDEO COMING SOON
