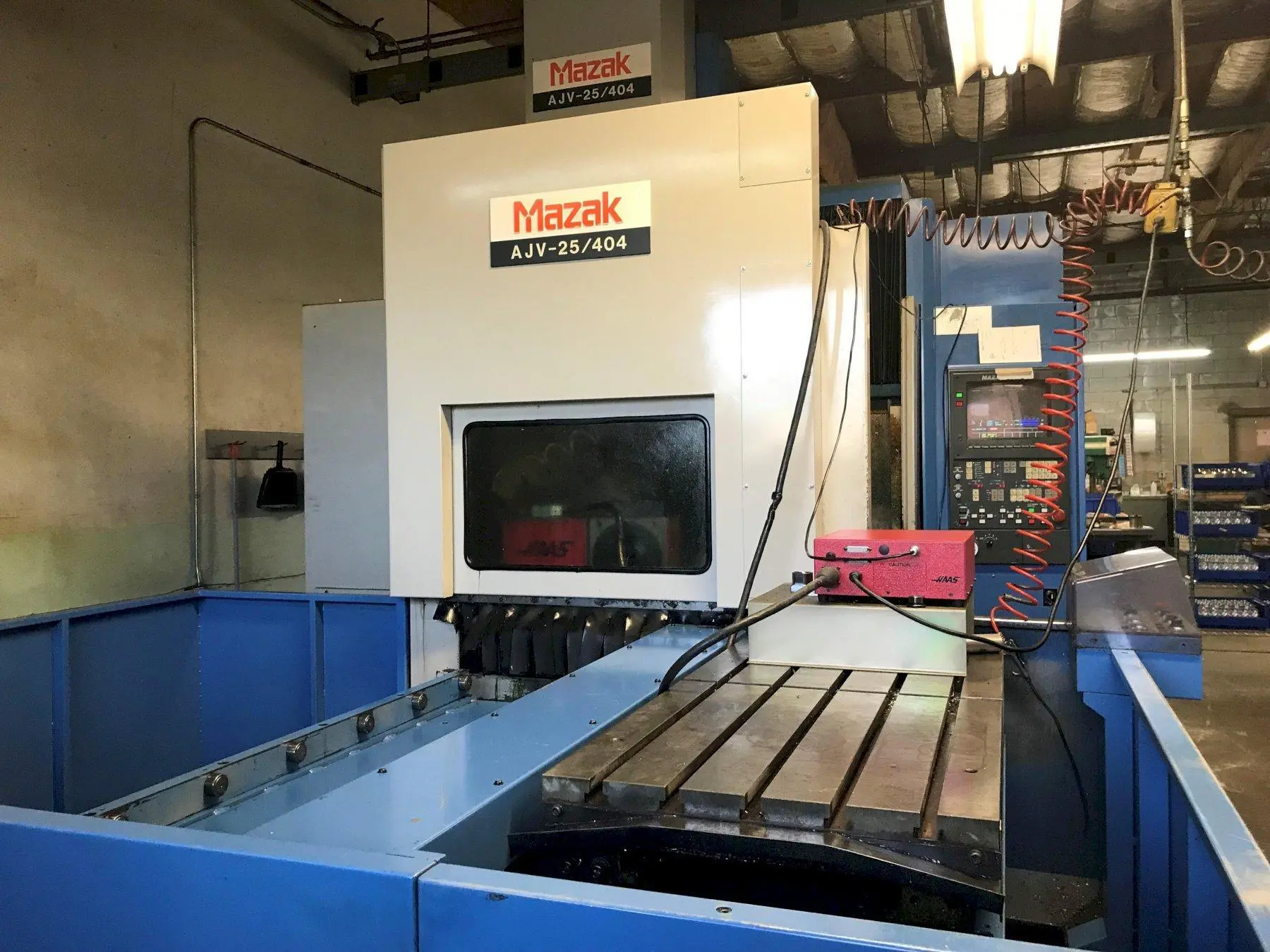

USED 1991 MAZAK AJV 25/404

Mazak AJV 25/404 Double Column VMC; 2 Pallet Changer, M-32 Control, 40" x 20" x 18" Travels, Chip Conveyor

Mazak AJV 25/404 Double Column CNC Vertical Mill
New: 1991

Specifications:
 Travels:
  X-Axis:        39.37"
  Y-Axis:        20"
  Z-Axis:        18"
 Spindle Speed:        10,000 RPM
 Spindle Motor:        25/20 HP
 Spindle Taper:        #40
 Tool Magazine:        40 ATC
 Table Size:        48.8" x 19.68" (x2)
 Column Distance:    25.59"
 Table Load Capacity:    1,760 Lbs
 Table Top to Spindle:    7.87" - 26"

Equipped With:
 Mazatrol M-32 CNC Control
 (2) Pallet CHanger
 40 Position ATC
 Chip Conveyor

Approx  Dimensions 231"x108"x120"
Approx Weight 18,960 Ibs.

click here for video: https://www.dropbox.com/s/smz5ubqzqn6ph8b/IMG_0141.MOV?dl=0
