NEW HYD-MECH V-18APC-60
Overview

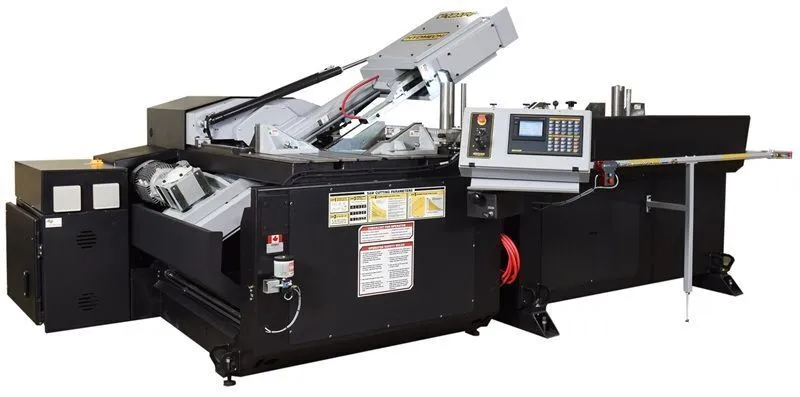

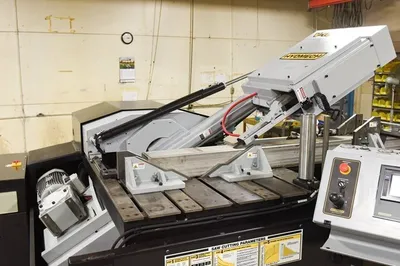

The V-18APC-60 is a automatic vertical band saw with the ability to miter from 60° left to 60° right. You can choose a left or right side infeed. A 3 degree fixed canted head allows for more efficient cutting and improved blade life when cutting larger beams, structural steel, and bundles of square tubing.
Specs
Specifications (subject to buyer verification):
Capacity 90°: Rectangular: 18" x 22"; Round: 18”
Capacity 45°: Rectangular: 18" x 14.75"; Round: 13”
Capacity 30°: Rectangular: 18" x 9"; Round: 9”
Capacity 90° with OH Bundling: Rectangular: 18" x 12; Round: 12"
Capacity 45° with OH Bundling: Rectangular: 18" x 12; Round: 12"
Capacity 30° with OH Bundling: Rectangular: 18" x 6; Round: 6"
Blade Size: 1 1/4” x 16’ 11”
Blade Drive: 7.5 HP VFD
Blade Speed: 65 - 385 SFM
Table Height: 44”
Coolant Tank Capacity: 30 Gallons
Hydraulic Tank Capacity: 8 Gallons
Mitering Capability: 60° left to 60° right
Machine Voltage: 208*, 240*, 480, 575* v *Transformer supplied at no charge
Machine Weight: 9,000 lbs
Dimensions (W x L x H): 120” x 188” x 112”
Equipped With
Equipped With (subject to buyer verification):
Standard Machine Features:
• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

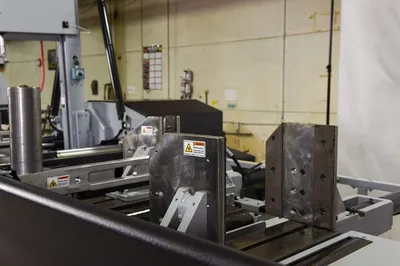

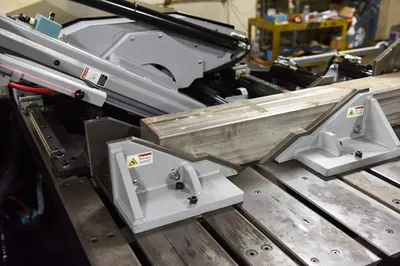

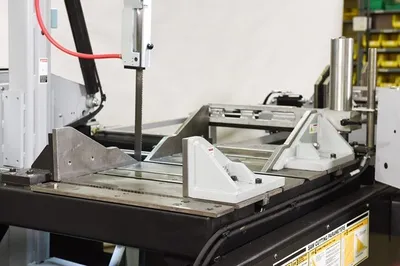

• Four full stroking, hydraulic vises (12” h shuttle, 6” h main, and 6” h outboard) and 12” h squaring vise

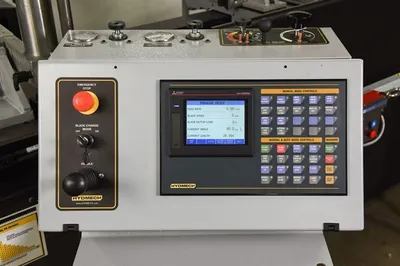

• 8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
• Automatic multi-indexing up to 40” in a single stroke.
• Powered movable guide arm
• Hydraulic overhead bundling

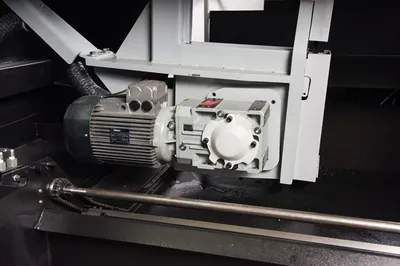

• 7.5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic DDF system
• Blade chamber separates material from cut part
• Out of stock switch

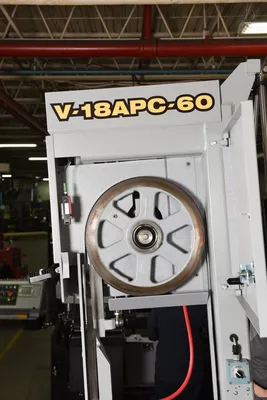

• Cast iron band wheels
• Replaceable blade brush
• Robust steel base

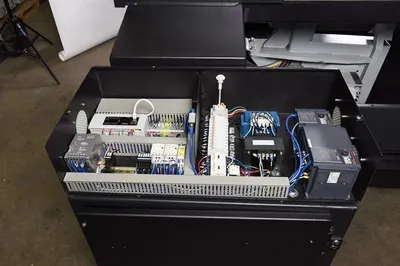

• Easy access electrical panel and hydraulics
• Blade breakage switch
• Drag chain chip conveyor
• You choose left or right side infeed
• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts

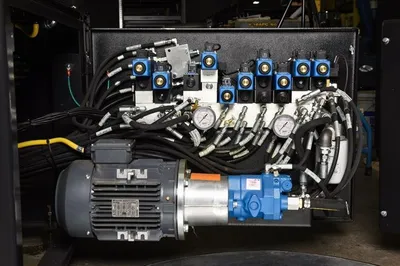

• 2 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light and Work light

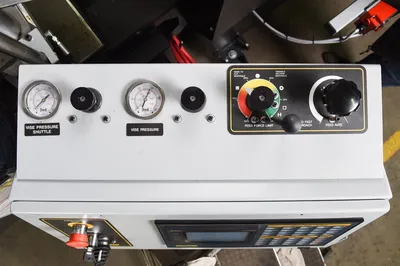

• Variable vise pressure
• 3 degree head cant
Optional Machine Features:
• Chip bucket
• Tall Vise Inserts
• Mist lubrication
• Non-driven pop up lift roller
• Hydraulic chip conveyor
• Idler conveyors
• Powered conveyors
