| Rect-Cap (H) | 12.6" | 320.04 mm |
| Rect-Cap (W) | 15.7" | 398.78 mm |
| Square-Cap | 15.7" | 398.78 mm |
| Blade Width | 1.34" | 34.036 mm |
| Blade Thickness | 0.04" | 1.016 mm |
| Blade Length | 194" | 4,927.6 mm |

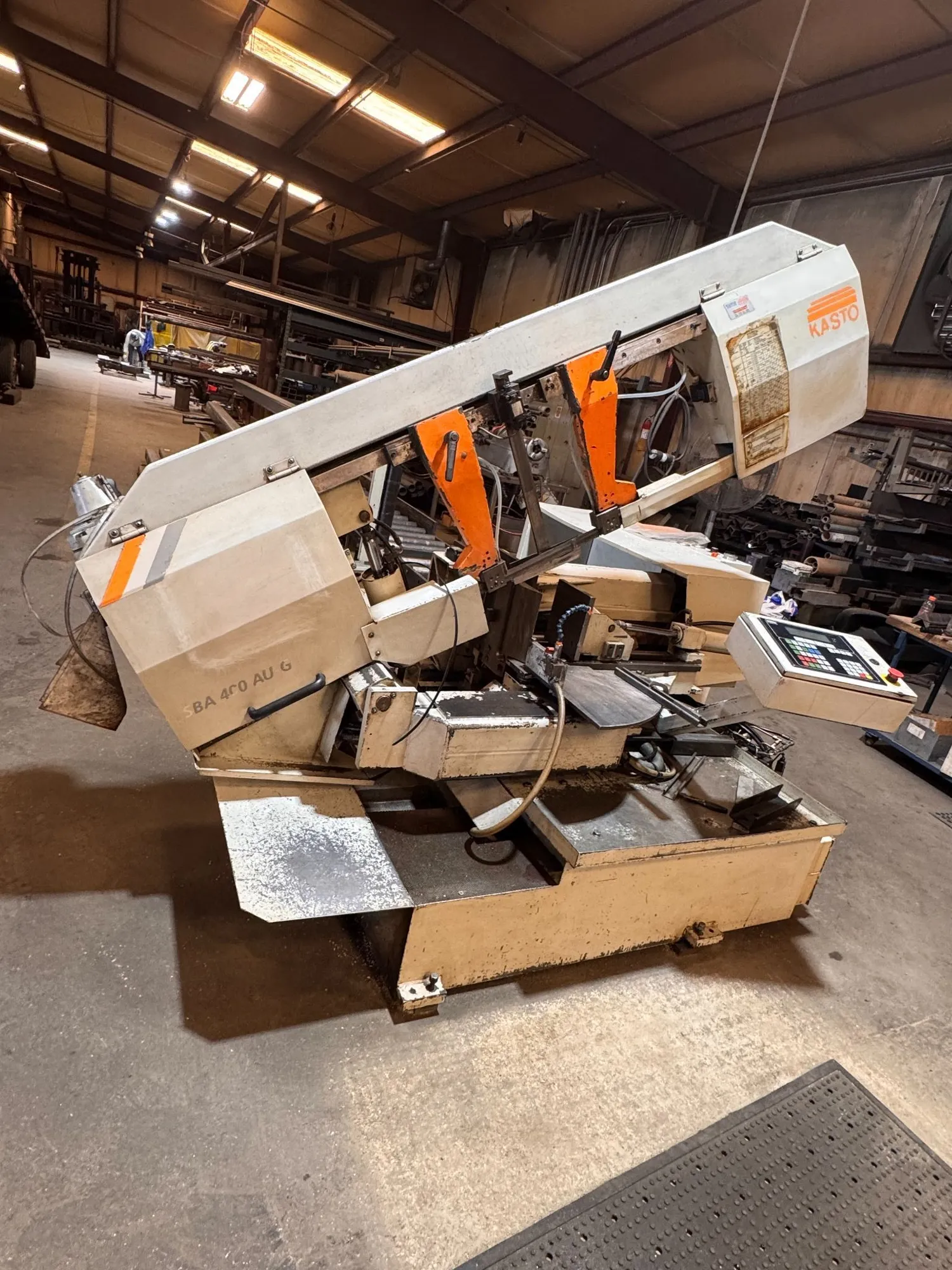

Kasto Model SBA 400 AU-G-NC 16" Automatic Horizontal Band Saw (2000)
cutting diameter 10 - 400 mm
saw band length 5090 mm
cutting width 1,1 mm
cutting range - flat - 400 x 320 mm
feed length 590 mm
feed length: multiple 9.999 mm
cutting speed 17 - 90 m/min
clamping capacity 20 - 60 bar
control compact control
sawing motor 2,2 kW
dimensions of saw-band 5090 x 34 x 1,1 mm
total power requirement 5,0 kW
weight of the machine ca. 1,75 t
dimensions of machine L x W x H 2,45 x 2,55 x 1,37 m
Accessories: chip conveyor, coolant
