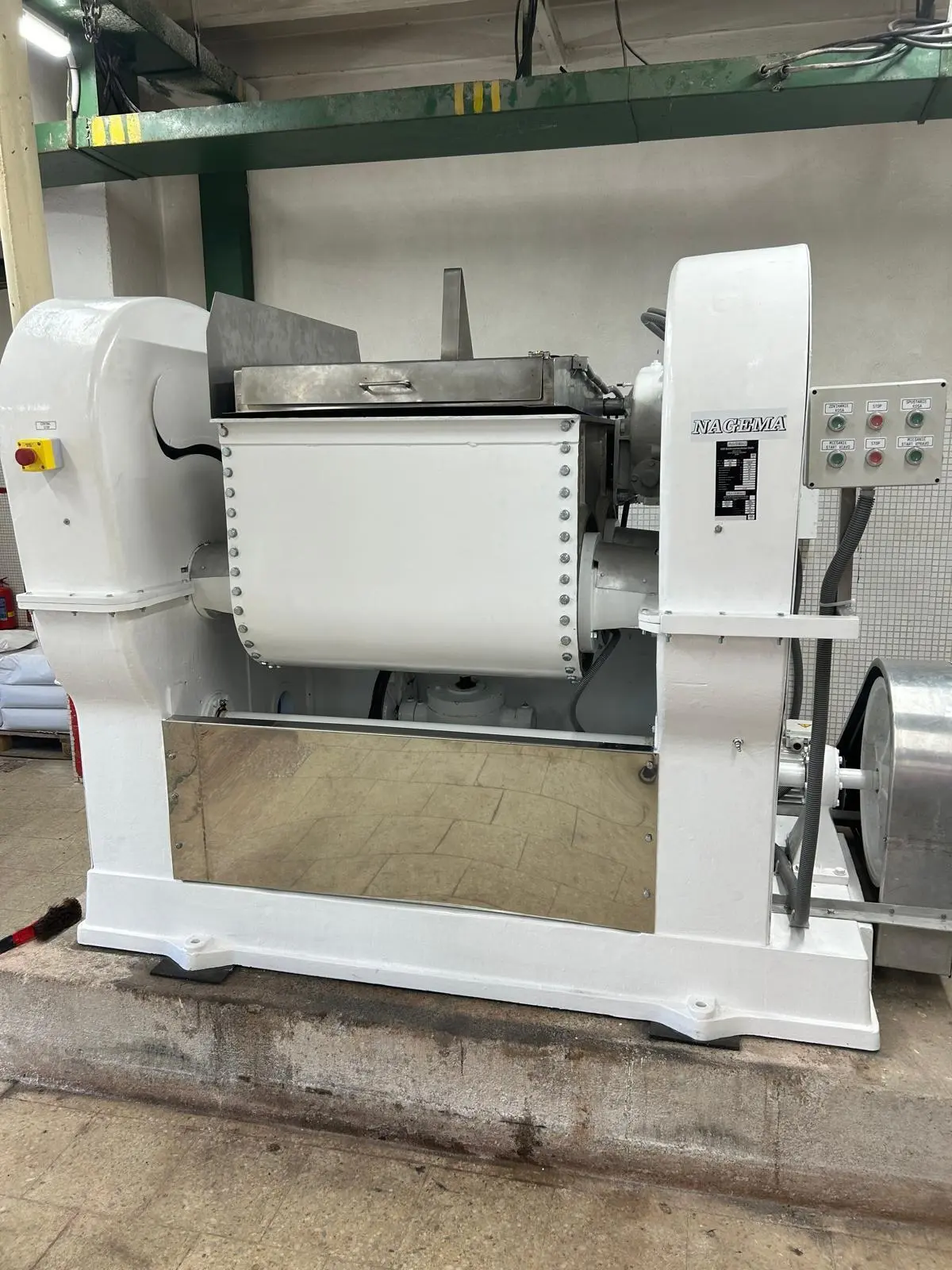

USED NAGEMA DMK300

Reconditioned carbon steel sigma blade double arm mixer by NAGEMA (Germany) type DMK 300. Working capacity 300 liter (80 gallon) and total capacity 450 liters. Internal dimensions of stainless steel mixing chamber 800 mm wide x 890 mm long x 660 mm deep. The sides of the mixing chamber are nickel-plated. Carbon steel SIGMA-type agitators is nickel plated and driven by a gearbox and an electric motor with a power of 15 kW, 730 rpm, 50 Hz. Tilt unloading is driven by a gearbox and an electric motor with a power of 1.1 kW. Stainless steel cover is opened by a gearbox and an electric motor with a power of 0,18 KW, 220/380 V, 50 Hz. Includes control panel. Shipping dimensions of mixer: length 3150 mm x width 1400 mm x height 2000 mm, weight 3625 kg.
