Monarch VMC-45B, Fanuc 16M, 30" x 18" x 24" , chip conveyor, assorted tool holders
Monarch Vertical Machining Center
Model: VMC-45B
Year: 1998
Table size: 23.75" x 46.25"
max. load: 3000lbs
X axis travel 30"
Y axis travel 18"
Z axis travel 24"
Spindle nose to table top 5"-29"
Spindle speed 30-6000RPM
spindle taper 50mm
main motor 25hp
32 position tool changer
machine dimensions: 150" x 174" x 110"
machine weight: 14000lbs
Equipped with
Fanuc 16M Control
Chip Conveyor

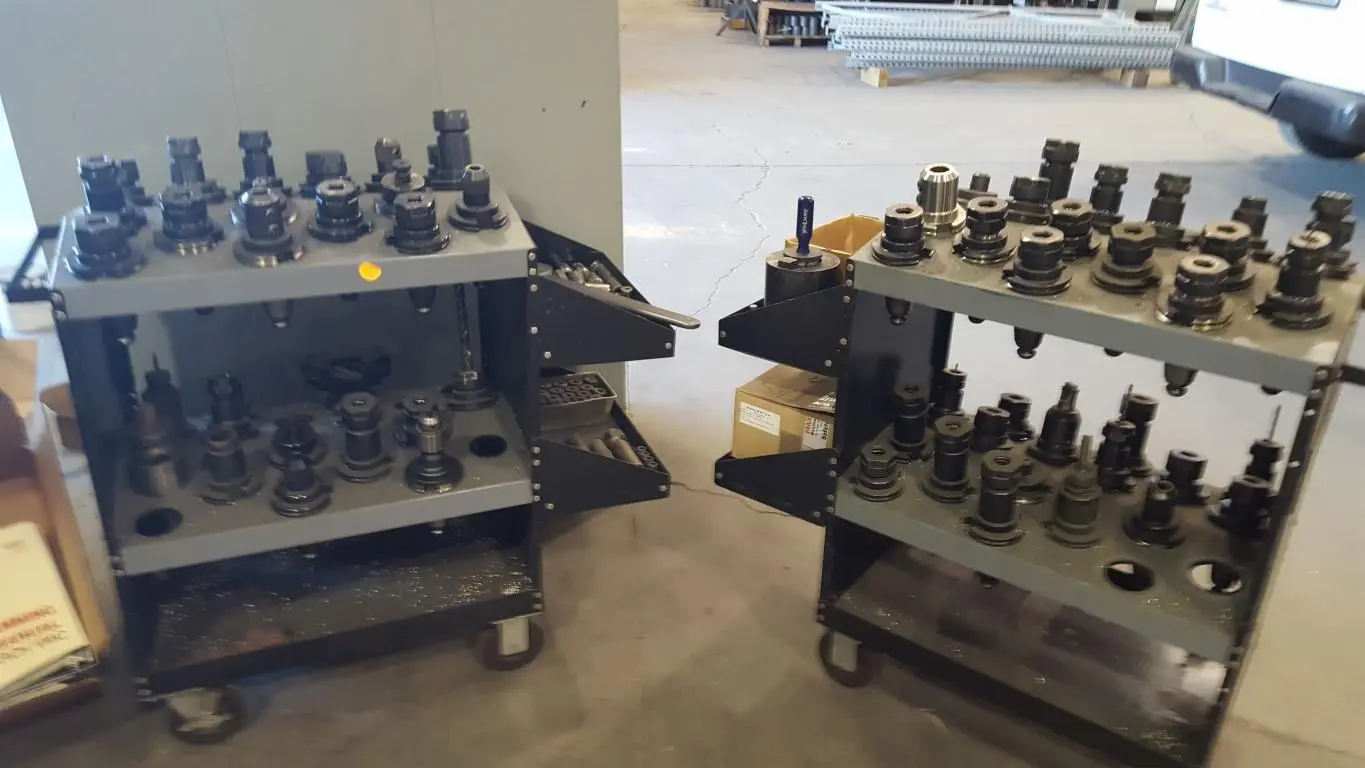

Assorted 50mm tool holders
