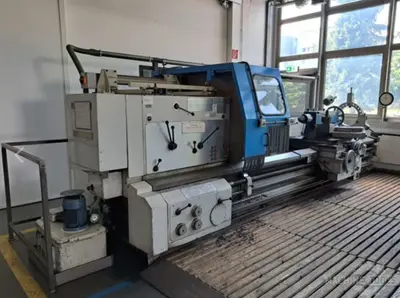

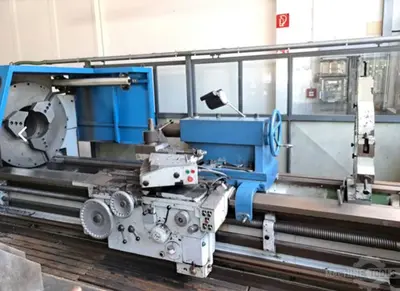

USED 1977 DEMOOR 825S360

Double Hydraulic chuck
Double chuck front and rear with 360 bore
API Threading Cutter attachment
Safety cover dfor front and rear chuck

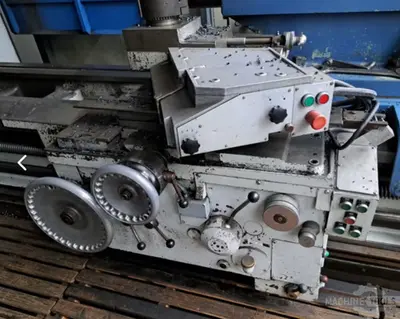

Conical turning carriage

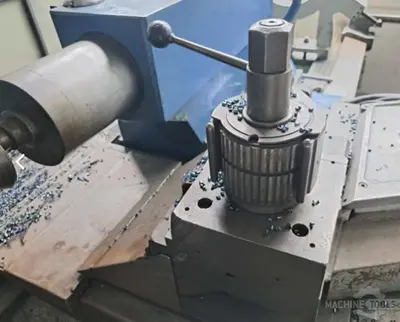

Multi fix tool system

DBC Turning Length: 2000 mm
Swing over bed Ø: 970 mm
Swing over cross slide Ø: 500 mm
Spindle bore: 360 mm
Spindle power: 22 kW
Stroke pinole: 360 mm
Spindle taper: 6 Mk
Speeds / ranges: 28-500 Rpm
Feed rate X-Axis: 4000 mm/min.
Feed rate Z-Axis: 2000 mm/min.
Length: 5500 mm
Width: 1900 mm
Height: 1900 mm
Weight: 10600 kg
