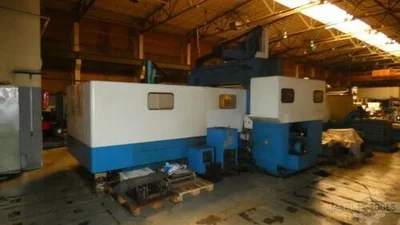

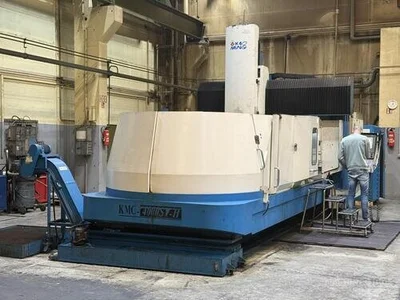

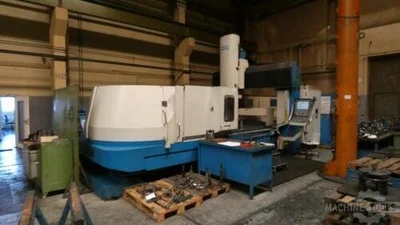

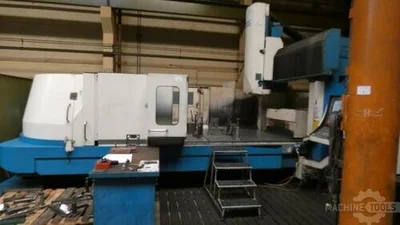

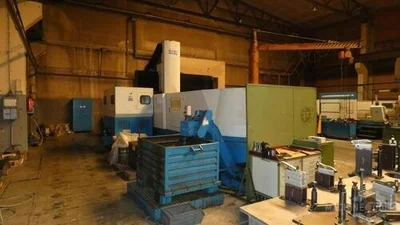

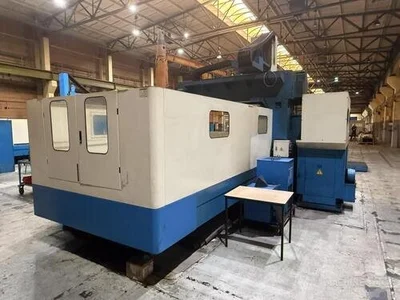

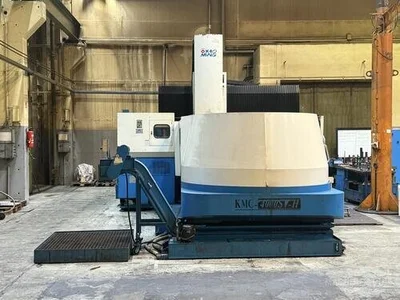

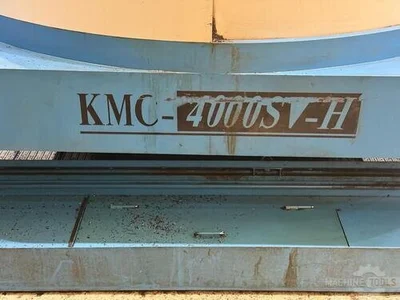

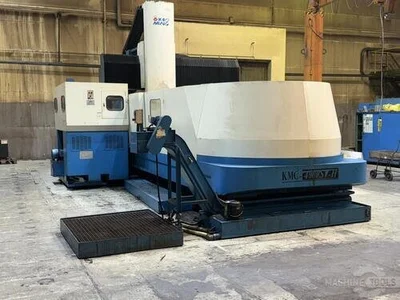

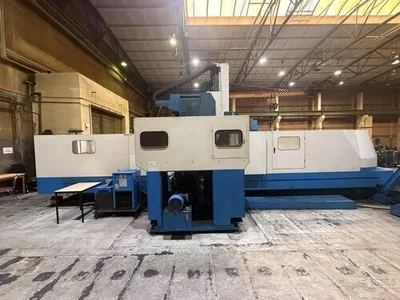

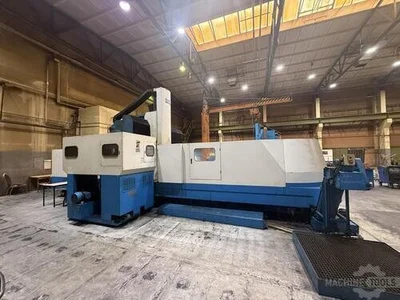

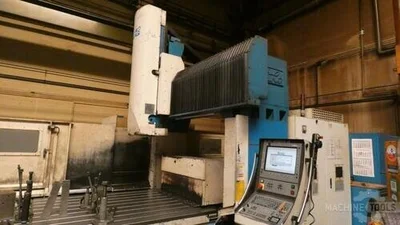

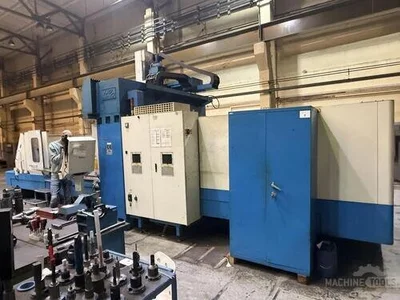

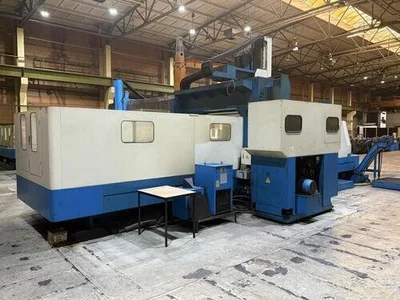

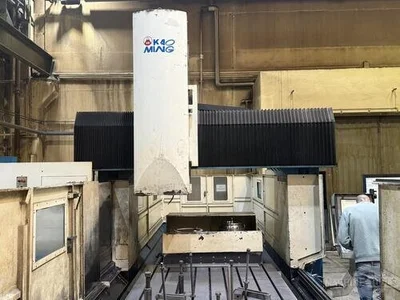

USED 2008 KAO MING KMC4000SV-H
Overview
Double guideway two box way construction
Head changer for Multi-Face machining off larger compontents
ATC tool changer for Horizontal and vertical milling head swivabel
Distance table spindle nose 213 - 1093 mm
Distance table spindle center 130 - ...mm
Indexing Horizontal head 5 Degrees x 72 positions

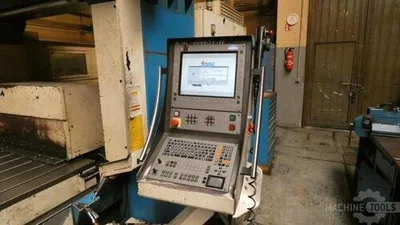

HeidenHain iTNC530 with HR410 handwheel
Spindle torq 1018 Nm ISO50
Universal Huron type milling head
Specs
X - Travel: 4230 mm
Y - Travel: 2000 mm
Z - Travel: 750 mm
Distance between column: 2100 mm
Table Length: 4000 mm
Table Width: 1600 mm
Table load: 11000
Feed rate X-Axis: 12000 mm/min.
Feed rate Y-Axis: 15000 mm/min.
Feed rate Z-Axis: 12000 mm/min.
Spindle Taper: 50 ISO/Bt/Mk
Power on spindle: 26 kW
Speeds / ranges: 4400 Rpm
ATC / revolver: 30
Chip conveyor: Yes
Coolantsystem: Yes
Length: 10100 mm
Width: 4500 mm
Height: 4250 mm
Weight: 30000 kg
