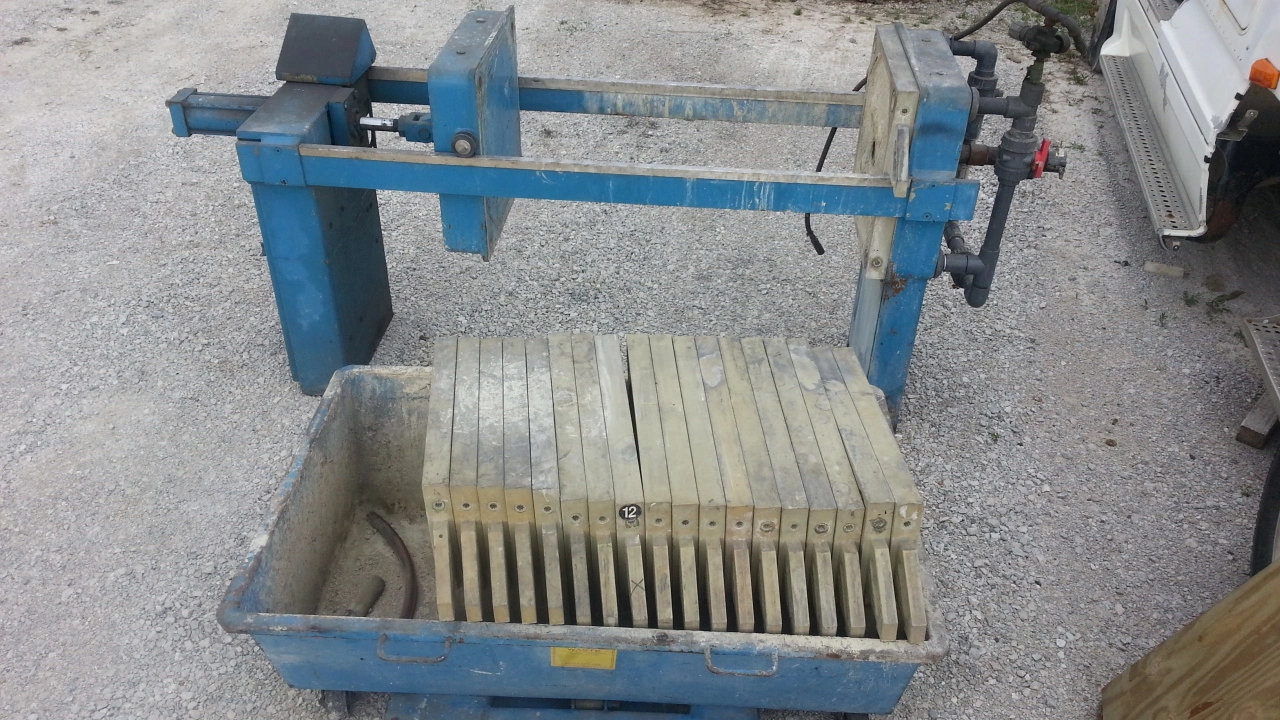

USED JWI 630G32-7/13-2/4DA

SPECIFICATIONS:

TOTAL VOLUME - CU. FT. ------------ 2
VOLUME/CHAMBER - CU. FT.----------- 0.3
TOTAL AREA - SQ. FT. -------------- 75.6
NUMBER OF CHAMBERS ---------------- 7/13
OVERALL LENGTH OF PRESS ----------- 84 in
OVERALL WIDTH OF PRESS ------------ 37 in
CLEARANCE - FLOOR TO PLATES ------- 26
PLATE SIZE ------------------------ 24.8 in (630MM)
PLATE STYLE ----------------------- GASKETED
GASKET STYLE ---------------------- O ftRING
FILTER CLOTH ---------------------- #7100 SERIES
CLOSING DEVICE -------------------- AIR POWERED HYD. PUMP
CONTROL LOCATION ------------------ LEFT HAND
AIR SUPPLY REQUIRED --------------- 28 CFM
HYDRAULIC CLOSING PRESSURE MAX ---- 4450 PSI
RELIEF VALVE SETTING -------------- 4750 PSI
HYDRAULIC RESERVOIR CAPACITY ------ 2-1/2 GALLONS
HYDRAULIC CYLINDER SIZE ----------- 4 in BORE, 18 in STROKE
HYDRAULIC CYLINDER TYPE ----------- PARKER
MAXIMUM INLET FEED PUMP PRESSURE -- 100 PSI
DISCHARGE MANIFOLD (STYLE) -------- AIR

EQUIPPED WITH:

MANUALS AND DRAWINGS
19 PLATES
DRIP TRAY

SPECIFICATIONS SUBJECT TO VERIFICATION

DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
