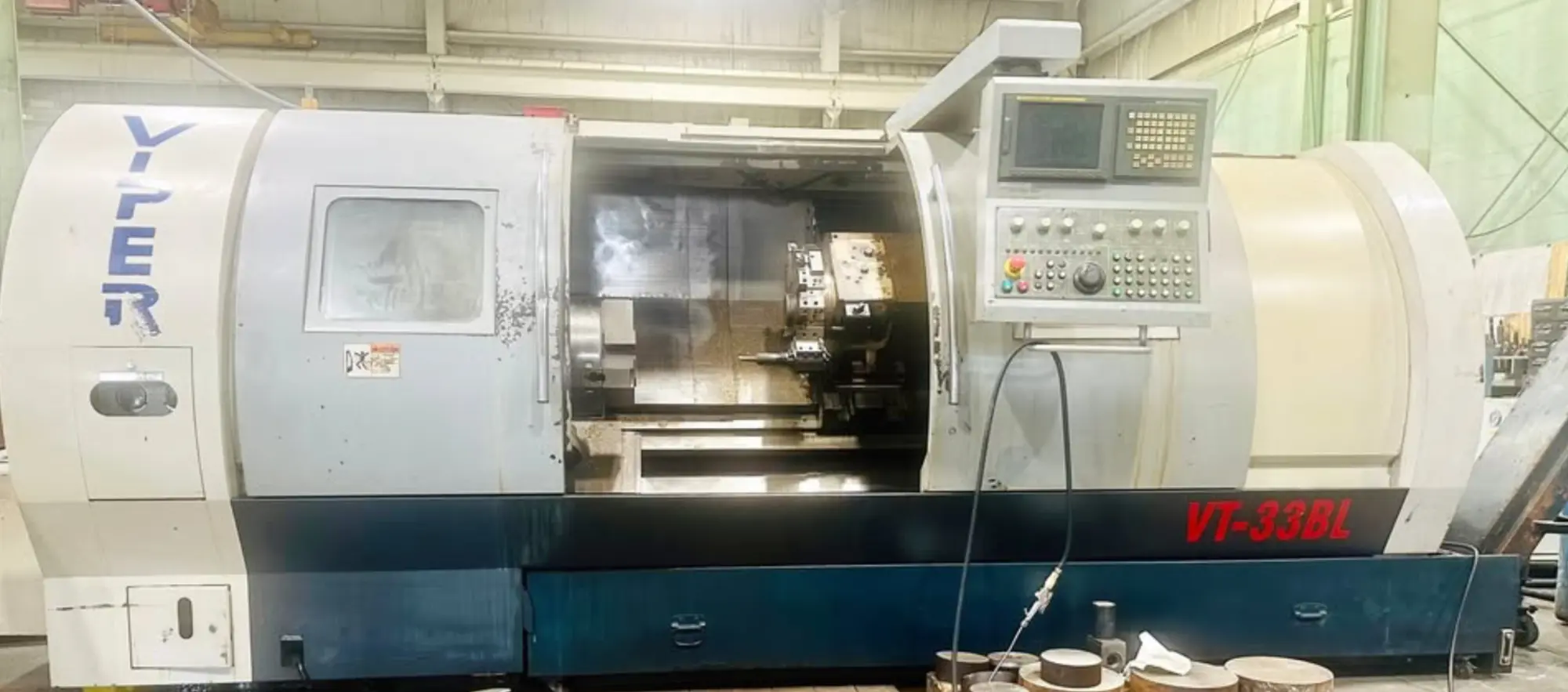

Used CNC Lathe available. Features 26.8" swing, 15" hydraulic chuck, 4.5" bar capacity, 50 hp, and max 4,500 RPM. Includes Fanuc Oi TC control, tool setter, and 12-station turret with tool holders.
| Swing | 28.6" | 726.44 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.5" | 114.3 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 24.8" | 629.92 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
15 inch Hydraulic Chuck
Max swing 28.6"
Max Turning lenght 59.9"
Spindle Bore 4.5"
Max RPM 4500
12 Stations Turret (comes with boring bar holders and 1 in.²tool holders )
Fanuc Oi TC Control Lathe, Tool Setter.
