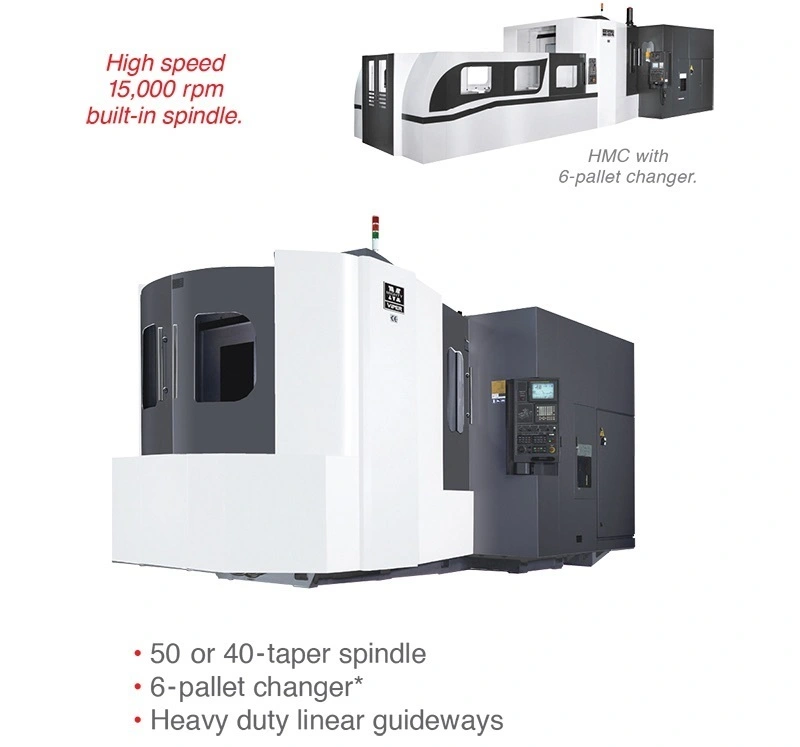

Horizontal machining center is designed with high rigidity on all three axes. Features a precision built-in spindle.
| X | 55" | 1,397 mm |
| Y | 47" | 1,193.8 mm |
| Z | 52" | 1,320.8 mm |
| RPM | 10,000 RPM | 10,000 RPM |
| Taper | #50 | #50 |
| Pallet-W | 31" | 787.4 mm |
| Pallet-L | 31" | 787.4 mm |
| Control | CNC | CNC |
X-Travel 55
Y-Travel 47
Z-Travel 52
Pallet Size 31×31
Nose Taper #50
Speed DDS (rpm) –
Speed Built-in (rpm) 10,000
Speed Gear (rpm) 6,000*
Drive Motor** 30 / 35*
Speed Built-in (rpm) 10,000
Drive Motor** 35 / 40*
Unit= inch | *Optional accessory | **30 minute rating
