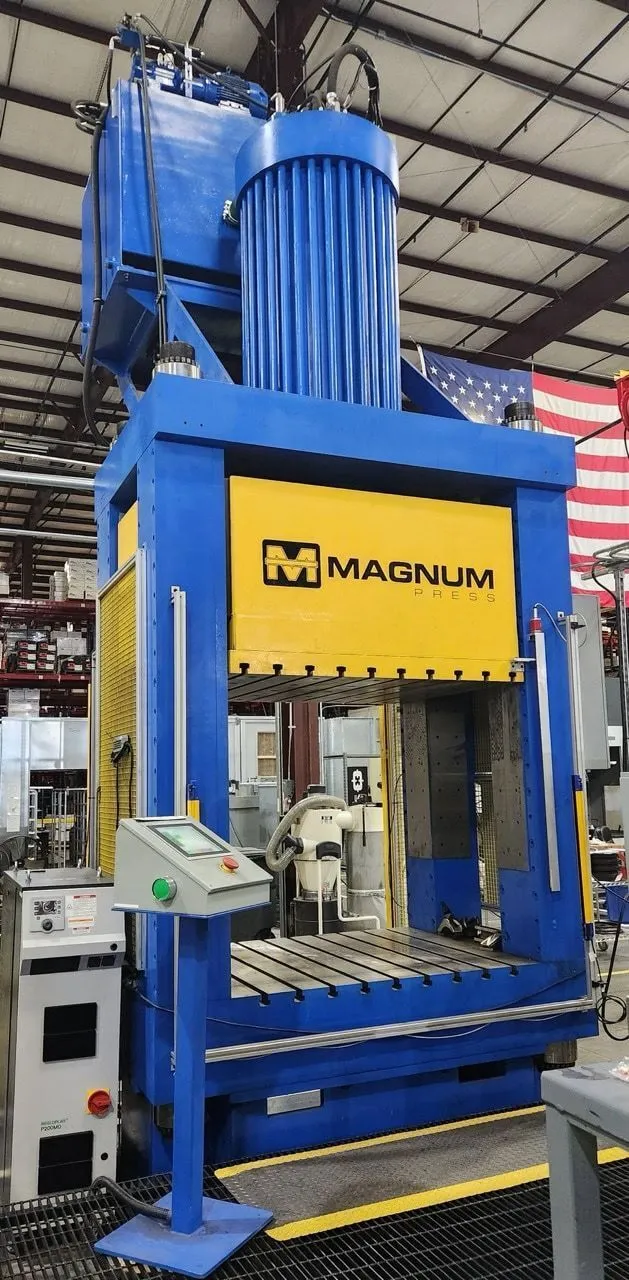

USED 2021 MAGNUM MSS4PS600-2021119
Overview
Description
600 Ton Magnum, 4 Post, 60" x 48" bed, 42" Stroke, 54" DL, NEW 2021
Specifications
| Tonnage | 600 T | 544.311 t |
|---|---|---|
| Design | Straight Side | Straight Side |
| Stroke | 42" | 1,066.8 mm |
| Daylight | 54" | 1,371.6 mm |
| Bed (L-R) | 60" | 1,524 mm |
| Bed (F-B) | 48" | 1,219.2 mm |
| IPM Pressing | 30 IPM Pressing | 76.2 cm/min. |
| IPM Closing | 500 IPM Rapid Advance | 1,270 cm/min. |
| Power | 100 hp | 74.6 kW |
| IPM | 500 IPM Return |
Capacity: 600 Tons
Daylight: 54″
Stroke: 42”
Slide Area: 60″ x 48″
Bolster Area: 60″ x 48″
Rapid Advance: 500 ipm
Pressing: 30 ipm
Retract: 500 ipm
Main Motor: 100 HP
Specifications must be confirmed by the buyer.
Equipped With
Light Curtains: Front and Back
Controls: Allen Bradley CompactLogix PLC
