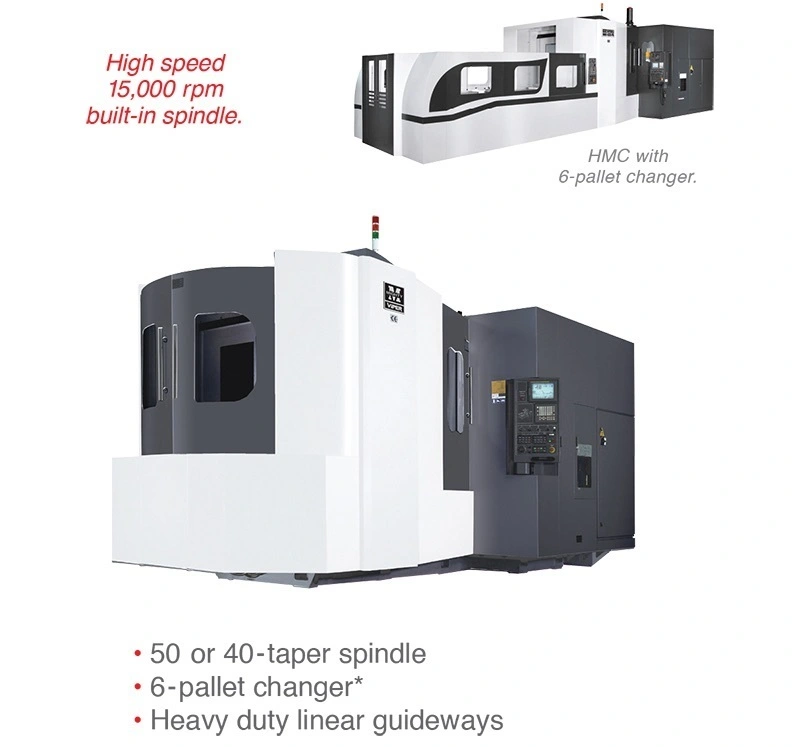

Horizontal machining center is designed with high rigidity on all three axes. Features a precision built-in spindle.
| X | 21.7" | 551.18 mm |
| Y | 20" | 508 mm |
| Z | 23.6" | 599.44 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | 40 | 40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 3 | 3 |
X-Travel 28
Y-Travel 25
Z-Travel 25
Pallet Size 20×20
Nose Taper #40
Speed DDS (rpm) 10,000
Speed Built-in (rpm) 15,000*
Speed Gear (rpm) –
Drive Motor** 15 / 20*
Speed Built-in (rpm) 15,000*
Drive Motor** 25 / 30*
Unit= inch | *Optional accessory | **30 minute rating
