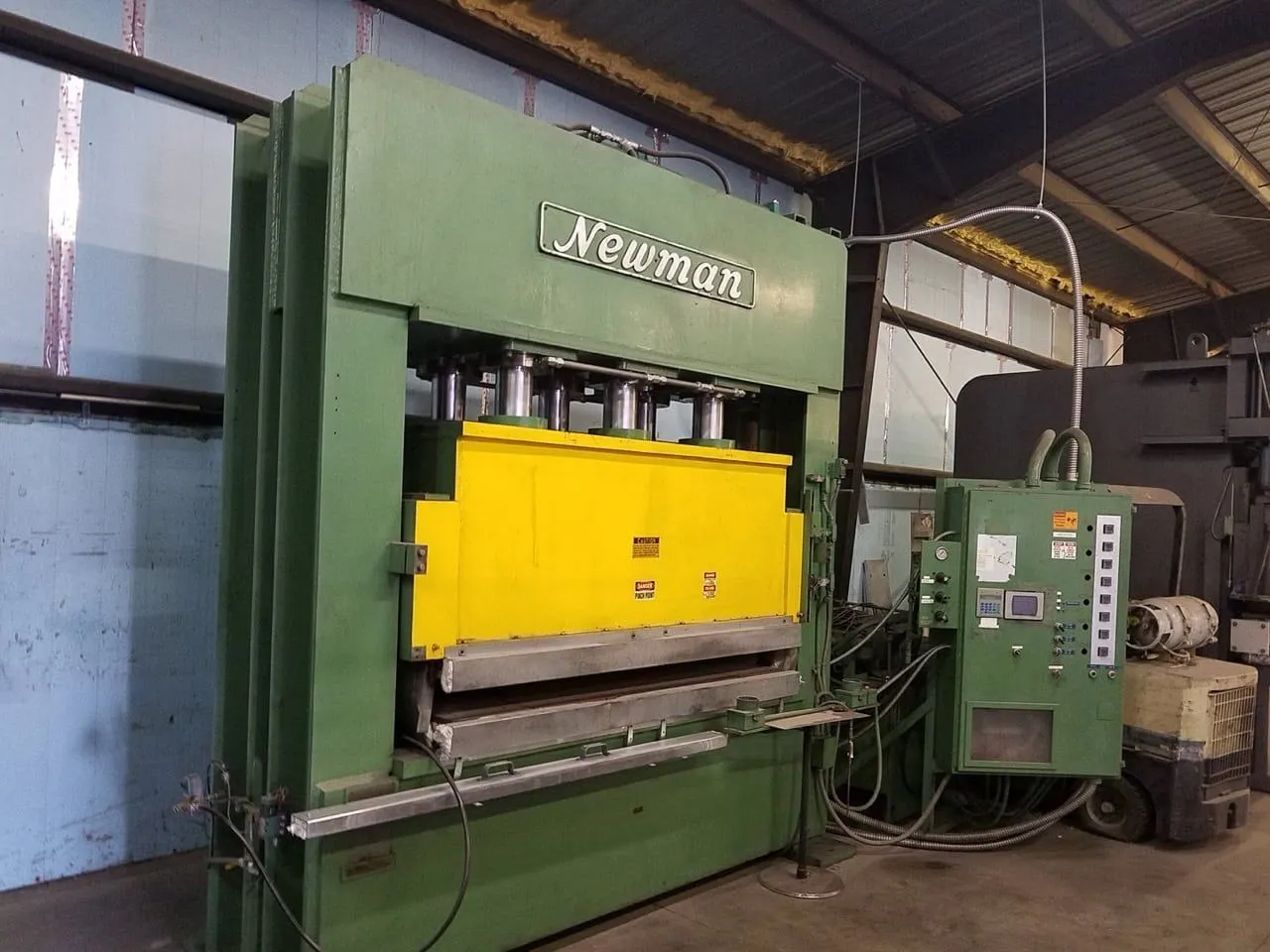

650 Ton Newman, 7' x 3' Heated Platens
| Tonnage | 650 T | 589.671 t |
| Heating Element | Electric | Electric |
| # of Openings | 1 | 1 |
| Design | Straight Side | Straight Side |
| Up or Downstroke? | Downstroke | Downstroke |
| Heated Platen (L-R) | 7' | 2,133.6 mm |
| Heated Platen (F-B) | 3' | 914.4 mm |
Make: Newman
Model: 650 Ton
Year: 1990
Capacity: 650 Ton
Machine Location: Upon Request
Stock #: 411016
Six 10″ Bore Cylinders
Area: 78.53 x SIX x 471.23
Tons/Hydraulic Pressure
117 Tons @ 500 psi
176 Tons @ 750 psi
235 Tons @ 1000 psi
353 Tons @ 1500 psi
471 Tons @ 2000 psi
589 Tons @ 2500 psi
650 Tons @ 2800 psi
All specifications must be confirmed by the buyer.
