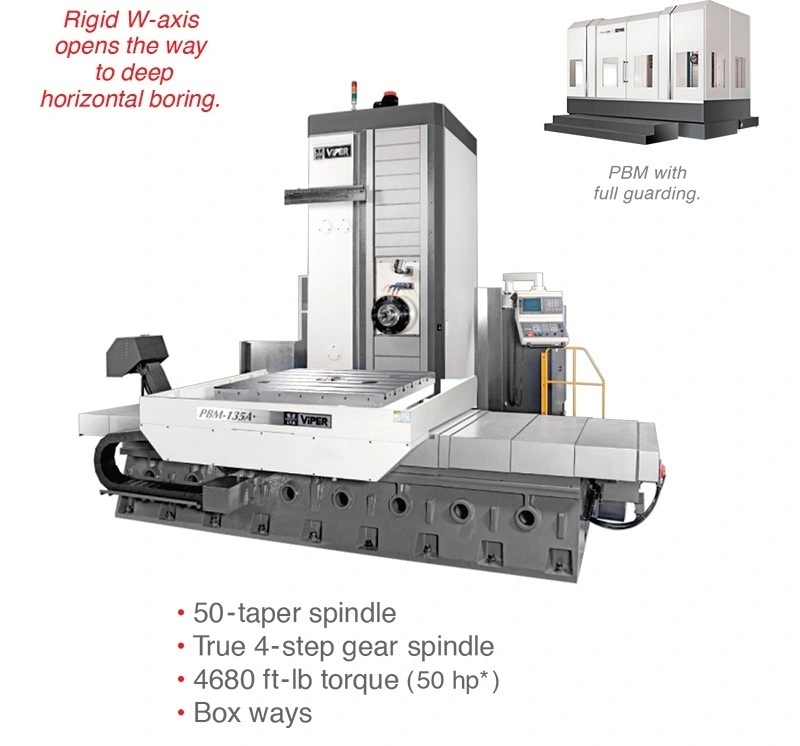

Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
| Spindle Size | 5" | 127 mm |
| X-Horiz Tvl of Table | 98" | 2,489.2 mm |
| Y-Vert Tvl of Head | 79" | 2,006.6 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 55" | 1,397 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 59" | 1,498.6 mm |
X-Travel 98
Y-Travel 79
Z-Travel 59
W-Travel 27.5
B-Axis Rapids (rpm) 2
Table Size 55×63
Quill Diameter 5.0
Nose Taper #50
Speed Gear (rpm) 2500
Drive Motor** (hp) 35 / 50*
XYZ Rapid (ipm) 394
Unit= inch | *Optional accessory | **30 minute rating
