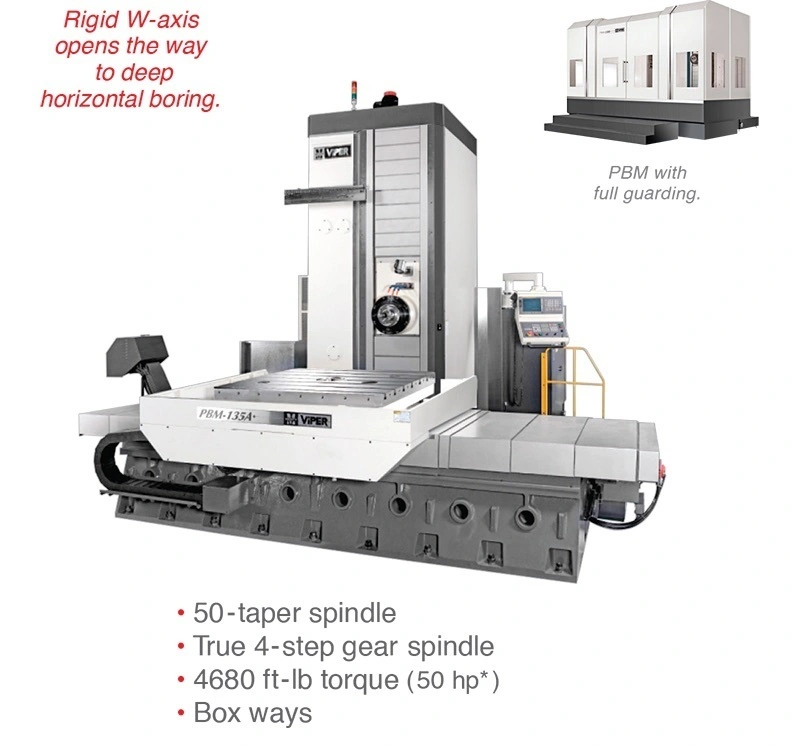

Precision horizontal boring and milling machine. W-axis provides up to 27.5″ of horizontal travel. Comes with full 8-axis. Table holds 26,400 lb load.
| Spindle Size | 4.3" | 109.22 mm |
| X-Horiz Tvl of Table | 79" | 2,006.6 mm |
| Y-Vert Tvl of Head | 63" | 1,600.2 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 55" | 1,397 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 20" | 508 mm |
X-Travel 79
Y-Travel 63
Z-Travel 59
W-Travel 20
B-Axis Rapids (rpm) 2
Table Size 55×63
Quill Diameter 4.3
Nose Taper #50
Speed Gear (rpm) 3000
Drive Motor** (hp) 25 / 35*
XYZ Rapid (ipm) 590
Unit= inch | *Optional accessory | **30 minute rating
