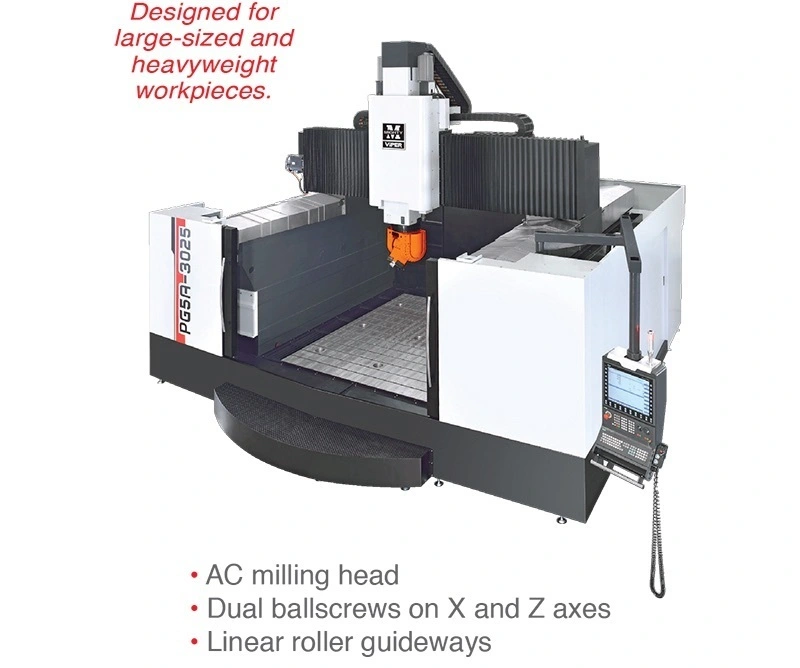

NEW MIGHTY VIPER PG5/PG

Gantry style 5-axis machining center features a German made Kessler dual axes milling head with integral spindle. The A/C-axis head can achieve 5-axis machining for high-efficiency manufacturing results.

X-Travel 79~236
Y-Travel 98 / 118
Z-Travel 39
Nose Taper HSK-A63 / HSK-A100
Speed (rpm) 12,000 / 15,000 / 24,000
Drive Motor** (hp) 50 / 60* / 80 / 120*
CNC Control Fanuc / Mitsubishi*
Heidenhain* / Siemens*

Unit= inch | *Optional accessory | **30 minute rating

Available Models: 2025, 3025, 4025, 5025, 6025, 3030, 4030, 5030, 6030
