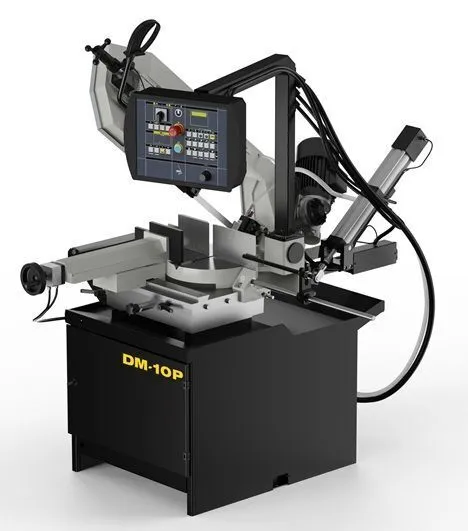

NEW HYD-MECH DM-10P

The DM-10P double miter band saw combines exceptional cutting performance with the added convenience of semi-automatic functionality—automatically raising the saw head after each cut to reduce operator fatigue and boost productivity.

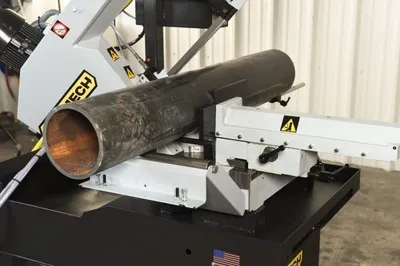

Its cast iron head and vises deliver superior rigidity to minimize vibration and enhance cutting accuracy. A rotating table with a single cut line ensures the head and blade groove move in unison for smooth, precise mitering.
Compact and user-friendly, it is ideal for tight workspaces, with intuitive operator controls and easily accessible electrical components—all designed to keep your workflow moving.

Specifications (subject to buyer verification):
Capacity 90°: Rectangular: 9 1/2” x 11”, Round: 10”, Square: 9"
Capacity 45° Left: Rectangular: 6 1/4” x 4 1/2”, Round: 5 3/4”, Square: 4 1/2”
Capacity 30° Right: Rectangular: 5” x 4 1/2”, Round: 84”, Square: 5"
Capacity 45° Right: Rectangular: 8 1/4” x 7”, Round: 7 1/4”, Square: 7"
Blade Size: 1” x 9’ 8”
Blade Drive: 2/2.4 HP
Blade Speed: Two speed – 118-236 SFM
Table Height: 34"
Coolant Tank Capacity: 3.5 Gallons
Machine Voltage: 208*, 240*, 480, 575* v *Transformer supplied at no charge
Machine Weight: 1,065 lbs.
Dimensions (W x L x H): 39” x 67” x 73”

Equipped With (subject to buyer verification):
• Electro-hydraulically operated easy swing, cast saw head
• Quick release cast-iron vise with dovetail ways
• Saw Head movement by means of control handle with safety spring loaded trigger switch to start or stop blade or feed mode (depending on selection)
• A remote foot pedal starts the semi-automatic cycle
• Rotating table with cut slot that moves in tandem with sawing head
• Band tension indicator
• Operator control box houses switches for selecting head feed option; (manual pull-down, powered feed or semi-automatic operation), and semi-automatic operation push buttons for head positioning. Blade speed selection switch, coolant on/off/wash hose and E-Stop button are also found on the control box.
• Small footprint
• Robust steel base
• Easy to read angle scale
• Adjustable guide arm
• Pre-set, replaceable carbide guide inserts
• Mechanical blade tensioning
• True-direct drive – no belts or pulleys
• Safety door interlocks
• Flood coolant
• Adjustable work stop

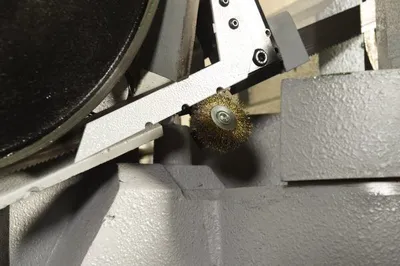

• Replaceable blade brush

Optional Machine Features:
• Mist lubrication
• R2 Work stop for K110 table
• Adapter Plate for K110 table
• K110 5’ infeed/out feed roller
