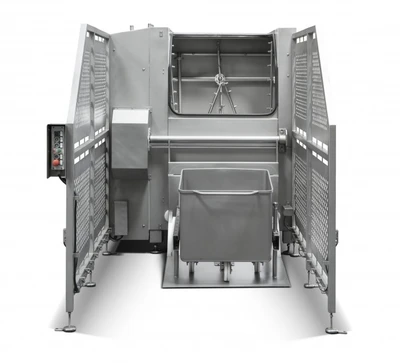

Roser Model AL-1000 - Standard 200-Liter Bin Washer

The Standard 200-Liter Bin Washing Machine by Roser Group is engineered to optimize the cleaning process for 200-liter buggies, commonly used in the food, meat, and fruit and vegetable industries. This machine enhances hygiene standards and accelerates production workflows.
Key Features:
Robust Stainless Steel Construction: Crafted entirely from AISI 304 stainless steel, ensuring durability and compliance with hygiene standards.
Efficient Cleaning Phases: The machine operates through configurable prewash, wash, and rinse phases, all adjustable via a user-friendly touch screen interface.

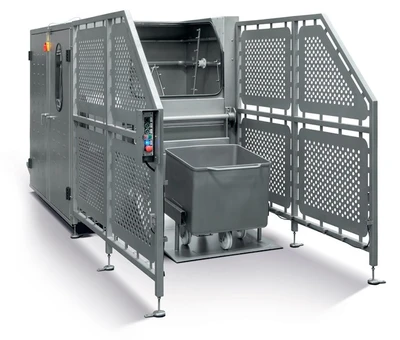

Automatic Loading Mechanism: Equipped with a motor-driven door-platform system utilizing sprockets and double chains for seamless loading of tanks.
High Capacity: Capable of processing up to 20 tanks per hour, depending on selected cycle times and soil levels.
Comprehensive Water Management: Features a 400-liter water tank with an automatic level control system and a self-cleaning rotary filter to maintain water quality.
Flexible Heating Options: Water can be heated either by direct steam injection or electric heating elements, accommodating various operational preferences.
Advanced Control System: Incorporates a Programmable Logic Controller (PLC) for precise control and customization of cleaning processes and durations.
Safety Measures: Includes protective panels in loading and unloading zones, equipped with safety photocells to prevent operation if the area is accessed during the cleaning cycle.
Technical Specifications:
- Construction Material: AISI 304 stainless steel
- Process Phases: Prewash, wash, rinse (configurable)
- Loading Mechanism: Motor-reducer driven door-platform with sprockets and double chain
- Cleaning Capacity: Up to 20 buggies(carts)/hour
- Water Tank Capacity: 400 liters
- Water Heating Methods: Direct steam or electric heating elements
- Operating Temperature Range: 104ºF to 158ºF
- Total Power Consumption: 23.3 kW (steam heating); 47.3 kW (electric heating)
- Power Supply Requirements: 400V, 3-phase, 60Hz
This tank washing machine is also adaptable for standard 600lbs (300-liter) buggies, offering versatility for various operational needs. Its design emphasizes easy access to mechanical components, facilitating straightforward maintenance and ensuring longevity.
