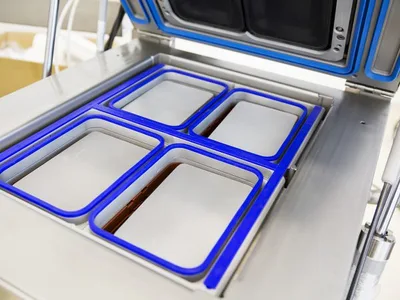

Frimaq Model Maxi Semi-automatic Tray Sealer with MAP

The Frimaq Model Maxi Semi-automatic Tray Sealer with MAP is an all #304 stainless steel machine with touchscreen that allows for 25 programs to be accommodated to different products. With several varying interchangeable moldings (including custom moldings) the Frimaq Model Maxi Semi-automatic Tray Sealer with MAP is an extremely versatile and useful packaging system. Sealing, vacuum and gas-MAP packaging abilities can all be utilized to seal your products with the Frimaq Model Maxi Semi-automatic Tray Sealer with MAP.
The Frimaq Model Maxi Semi-automatic Tray Sealer with MAP features an output range of 80 - 300 Trays per hour and allows for products up to 10mm above the height of the tray to be sealed. Overall your product can be 70mm maximum in height.
RAM Manufacturing Equipment, located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Frimaq Model Maxi Semi-automatic Tray Sealer with MAP and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
[email protected]
All #304 Stainless Steel Construction.
Skin +10 with plastic tray and carton tray

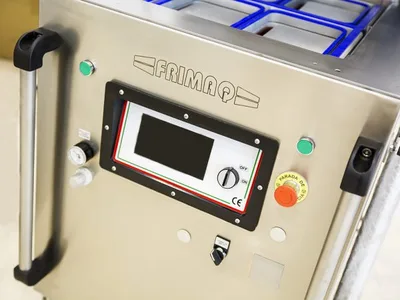

Touchscreen with 25 programs to be accommodated to different products.
Vacuum by millibars and time, or both.
Temperature control probe.
Manual lowering of the hood.
Vacuum pump 100 m3/h.
Capacity for 1 tray 1 GN.
Capacity for 2 trays 1⁄2 GN.
Capacity for 4 trays 1/4 GN.
Capacity for 6 trays 1/6 GN.
Capacity for 8 trays 1/8 GN.
Capacity for 4 cardboards 190 x 260 mm.
Film width: 520 mm.
Cutting of the trays independently.
Three phases 380v. 3P+N+T.
Power 5000 W.
Red meat oxygen vacuum pump
Profile cut and auto rewinder

Machine Dimensions (L" x W" x H"): 46" x 27.7" x 42.9"
Film Width: 20.4" (520mm)
Power: 5000w - Three phases 380v. 3P+N+T.
Vacuum Pump: 100 m3/h
Output: 80 - 300 trays per hour
