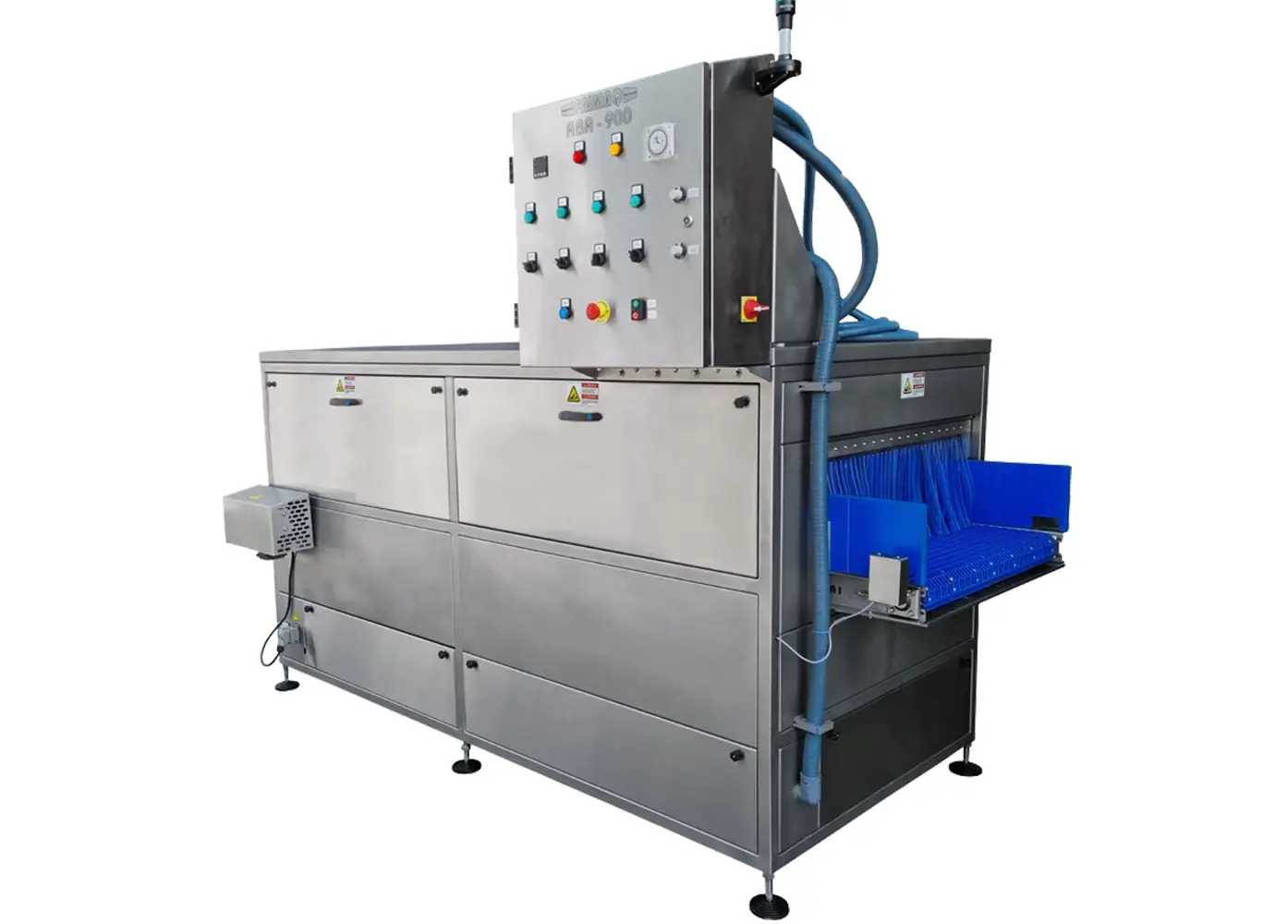

Frimaq Model ABA 900 Refrigerated Cooling Tank Tunnel
Overview
Description
The Frimaq Model ABA 900 Refrigerated Cooling Tank Tunnel features an automatic process to rapidly cool shrink-wrapped products. The product automatically enters and makes a continuous cooling process without stops.
RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Frimaq Model ABA 900 Refrigerated Cooling Tank Tunnel and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
[email protected]
Water pump switch.
Conveyor switch.
Water remover switch.
Emergency button.
Stop / start switch.
Thermostat.
Weight from 700 to 900 kg depending on the model.
Built in stainless steel. AISI 304.
CE certification.
Electrical panel to hang on the wall or in the tank itself.
Motorized belt.
Cooling controlled by belt speed and temperature.
Cooling coil fittings 1 1/2".
Lifting pump power: 0.75 Kw
Lifting pump flow (Q): 17.3 m3/h
Recirculation pump power: 0.3 Kw
Recirculation pump flow (Q): 70 l/min
Coolant flow of cooling coil: 220-275 l/min
Coolant speed: 2-3 m/sec
Specifications
Dimensions (L x W x H): 113.3" x 55.1" x 82.6"
Chassis length: 99.3"
Cooling coil length: 3.6"
Cooling coil diameter: 1 1/2"
Tank dimensions: 95.8" x 44" x 7.8"
Tank capacity: 118.8 gallons (450 liters)
Refrigerant circuit: 30.9 gallons (117 liters)
Voltage: 400 V
Frequency: 50/60 Hz
Maximum power: 2 Kw
