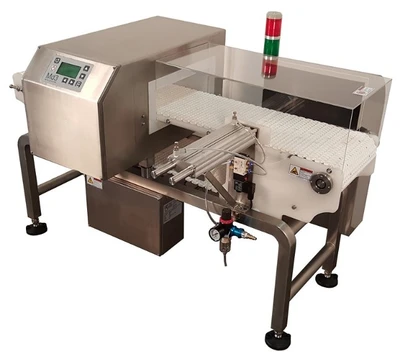

RAM Model 4520 Metal Detector

The RAM Model 4520 Metal Detector with built in powered transfer conveyor is used to detect metal contaminants in products. The Machine will automatically stop and alarm will sound if metal is detected. The RAM Model 4520 Metal Detector's conveyor belt runs at a speed of up to 58 feet/minute.
The RAM Model 4520 Metal Detector is designed for easy integration into food production lines. The RAM Model 4520 Metal Detector provides superior levels of metal detection sensitivity compared to our competitors thanks to our exclusive multi-frequency sensor engine technology.
The RAM Model 3010 Metal Detector complies with HACCP Safety Requirements and features a heavy duty # 304 Stainless Steel frame construction.
R.A. Maxwell and Associates located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Excel Packaging Model 4520 Metal Detector and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
[email protected]
Optimum product detection with multi-frequency sensor
Technology for high sensitivity in wet and dry conditions
Easy to use touch screen
Heavy duty frame construction with 304 stainless steel frame construction
Detects all types of metals: Ferrous, iron and stainless steel
20 program memory for different product settings
Sensitivity –Iron 1.6 / SUS 2.5
Multi-frequency sensor technology used
Automatic belt stops when metal is detected;
Conveyor belt speed 0 to 120 feet per minute
Heavy duty Intralox type plastic conveyor belting
Complies with HACCP
Stack Light- 2 position, Green on-Red reject with or without belt stop
Beacon Light with Alarm-When reject occurs an alarm sounds and a red light will appear
Mechanical reject
Air Blast reject

Aperture Width: 17.7"
Aperture Height: 7.8"
Voltage: 220v, 1phase, 10amp
Air: None required (mechanical rejector requires air)
Warranty: 1 Year on non-wearable parts
Weight: 550 lbs
Dimensions (L x W x H): 54" x 36" x 51"
